Flex attachment for harvesting soybeans and peas, attachment for soybeans, soybean attachment, Zaporizhzhia region.

Adjustment (prefix)для уборки сои and pea Flex for combines of domestic and imported production is intended for re-equipment of the grain header of the combine when harvesting soybeans, peas and fallen leguminous crops.

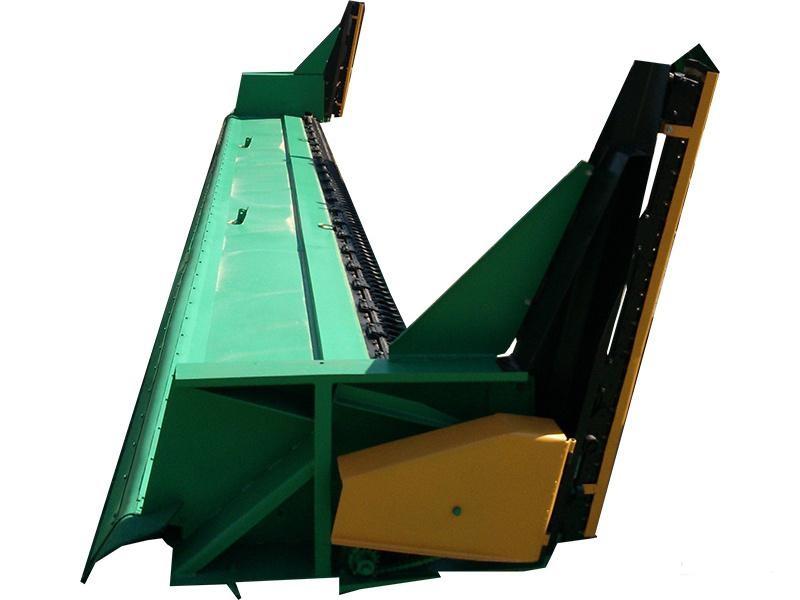

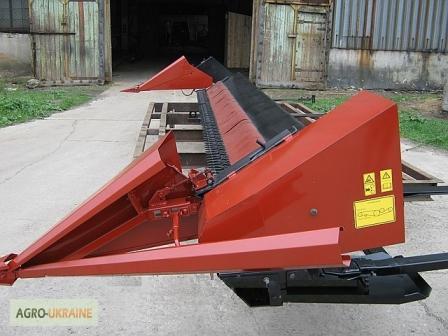

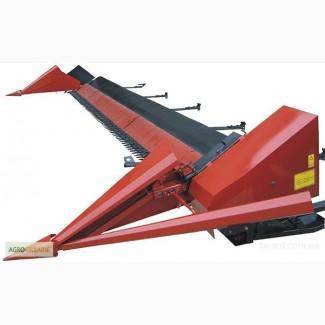

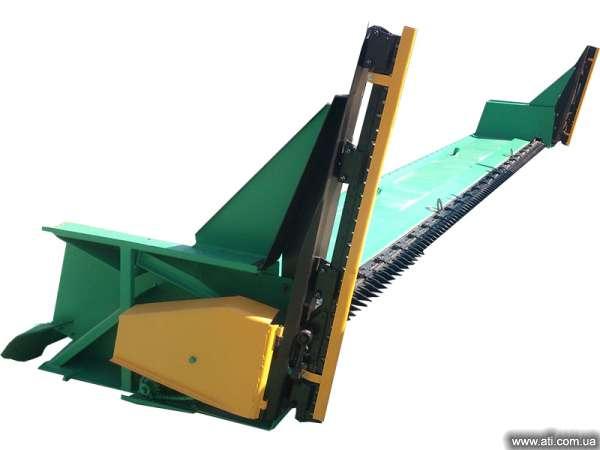

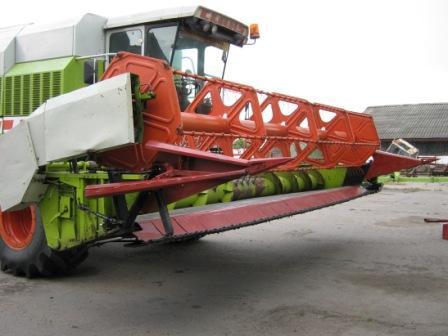

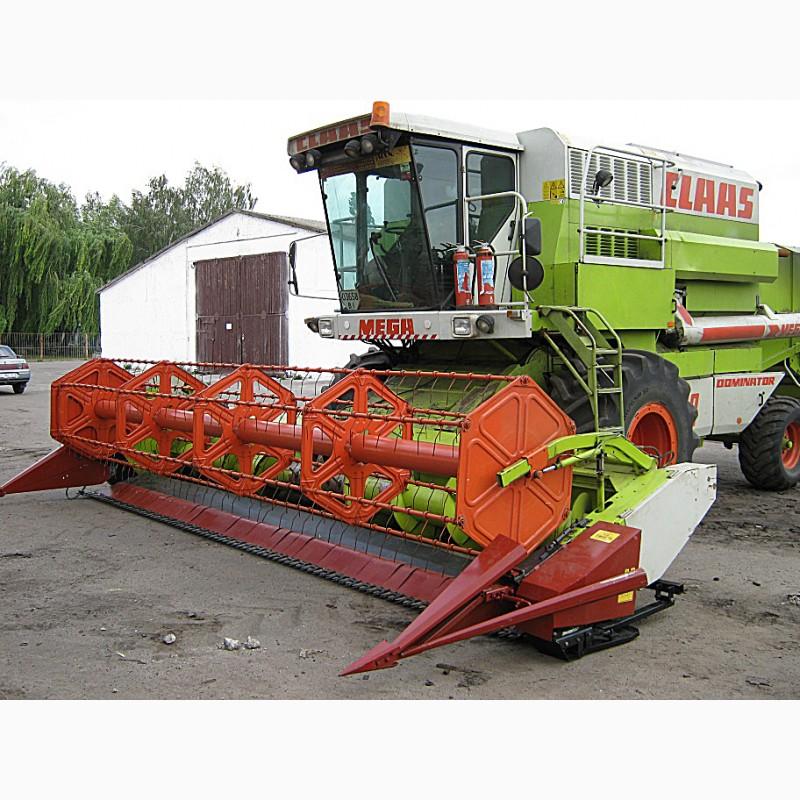

► The Biso Flex soybean harvester is intended for conversion ofgrain domestic and imported harvestersharvesters for direct harvesting of soybeans, peas and fallen leguminous crops.

► The difficulty of harvesting soybeans with a combine harvester is the need to mow them at a low cut. The bulk of the soybean grain is located in the lower layers of plants in close proximity to the soil surface. Therefore, the equipment for harvesting soybeans and legumes in accordance with agricultural requirements is subject to certain criteria, namely quality, speed of harvesting and reduction of losses, so soybean attachments must cut plants at a height of no more than 2 cm from the ground. What does the soy prefix Biso Flex do perfectly.

► Attachment for harvesting soybeans and peas bends up to 10 cm and guarantees a cut up to 1 cm above the ground.

► The attachment (prefix) automatically copies the relief of the field in the longitudinal and transverse directions at the given cutting height.

► Copying the relief in is carried out with the help of a unique system of adherence to the ground, thanks to which deflection and adherence to the ground are achieved.

► Thanks to the floating cutting device, it provides a low cut of soybeans, due to the reduction of losses, it increases the gross harvest of soybeans and peas by 20-30%.

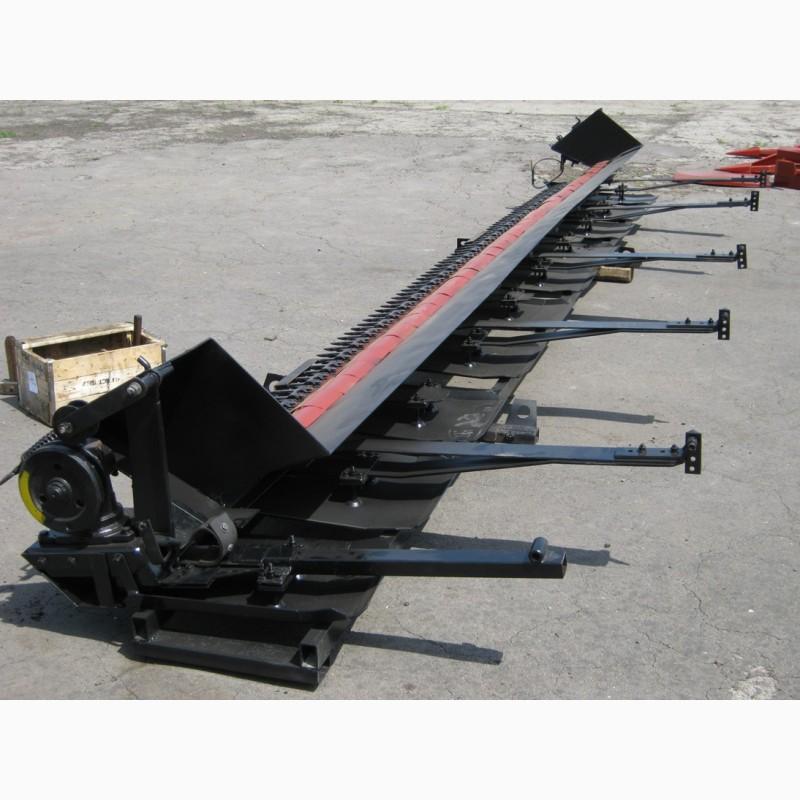

The design of the Biso Flex soybean harvester consists of the following main components:

• left and right sidewall;

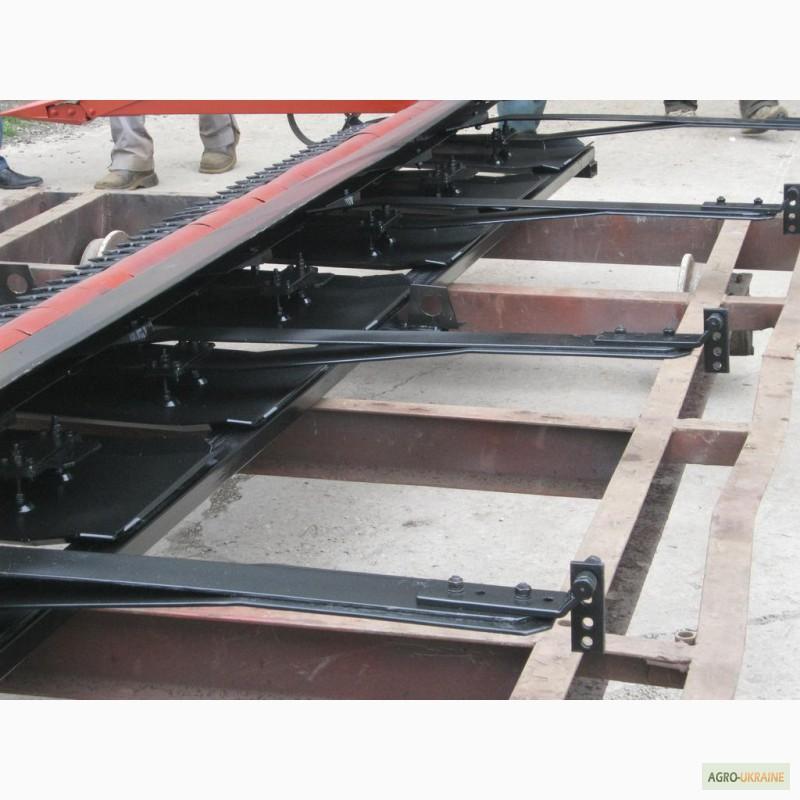

• a floating finger-mounted cutting device with a system of ski-lever copying of the soil relief along the entire width of the harvester;
• the drive of the remote cutting device.
• right and left active breakers and protective fences;
• quick-connecting grips for fastening the device to the sides of the harvester;

► the device for harvesting soybeans is driven by a V-belt from the drive pulley of the harvester through the MPN gearbox.
► the height of the cut is regulated from 10 to 100 mm (by adjusting bolts located on the shoes).
► recommended cut (30mm-50mm).(//tractor-service.com)

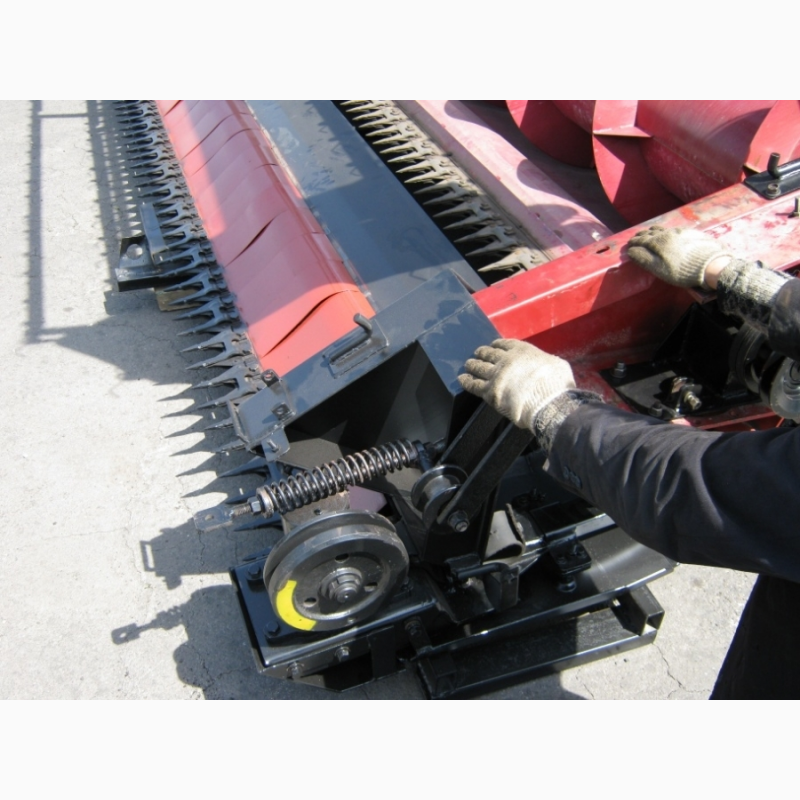

► the attachment is mounted on the harvester with the help of brackets and side locks.

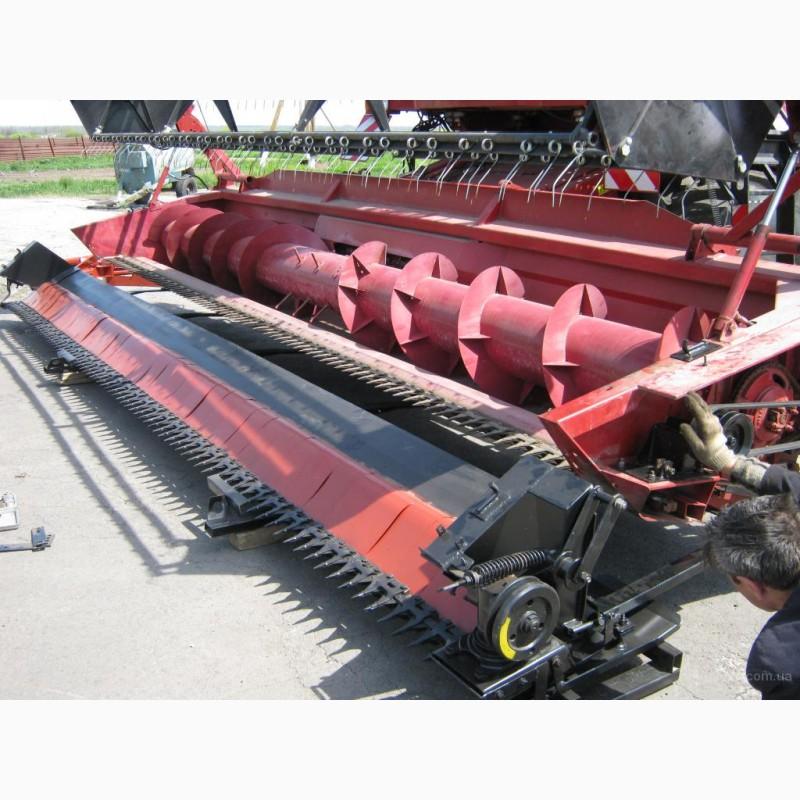

► installation of the device does not require disassembly of the cutting device of the grain header.
► the original design of the console prevents foreign objects from hitting the ground.
► the whole attachment for harvesting soybeans moves on shoes covered with special plastic, thanks to which it does not stick to wet soil.
► Biso Flex soybean attachment significantly improves the quality indicators when harvesting soybeans.
► the use of a soybean and pea harvester (Flex) reduces losses of soybeans and legumes by up to 30%.

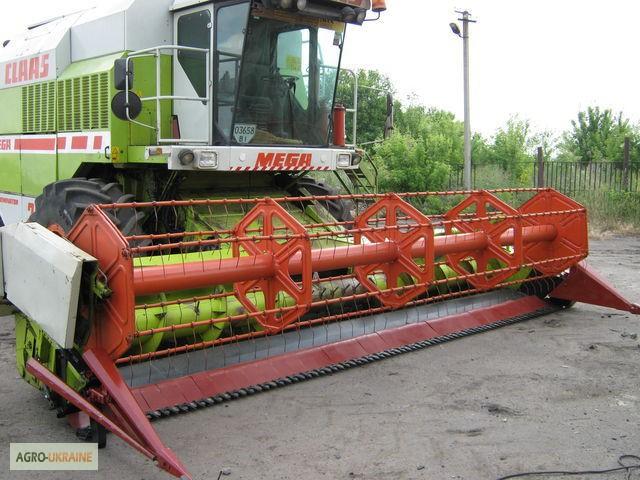

► Applies to all types of harvesters.

► The working width of the soybean attachment depends on the working width of the harvester, from 4.1m to 9.30m.

► The weight of the soybean harvester varies from 400 to 650 kg, depending on the width of the grip.

Technical data:

• grip width - along the width of the harvester
• productivity - according to the combine
• aggregation - for all types of combines
• mass - about 400 to 650 kg

The product is certified.

Factory equipment with a 2-year warranty. Quality.

Delivery and installation!
