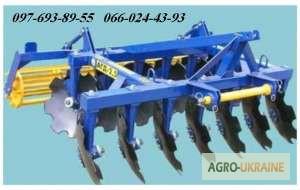

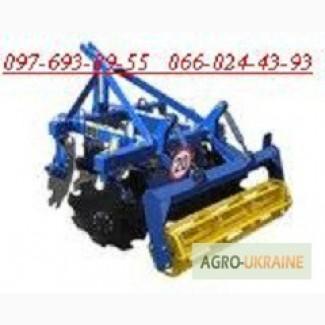

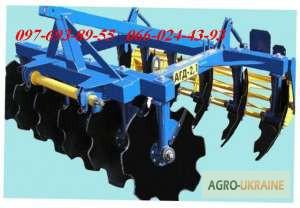

Mounted disc harrow AGD-1.8, AGD- 2.1, AGD-2.5, AGD-2.8, AGD-3.5, AGD-4.5, Dnipropetrovsk region.

Mounteddisc machine harrow AGD-1.8, AGD-2.1, AGD-2.5, AGD-2.8, AGD-3.5, AGD-4.5

AGD disc harrow - 1.3

The unit is intended for cultivation of soils of different mechanical composition with grinding and embedding of plant residues in the soil.

TECHNICAL CHARACTERISTICS

Spring type

Gripping width, constructive, m 1.3 minus 0.1

Fuel consumption, l/ha 3.6 4.0...

Productivity during the main time

of time, ha, not less than 1.5 1.9...

Depth of soil cultivation, cm 8...15

Working speed of movement, km / h 8.0...12.0

Transport speed, km / h, no more than 20

Weight of the product (without accessories), kg 350 minus 20

Overall dimensions, mm, no more.

length 1550

width 1600

height 1100

Ground clearance, mm, not less than 300

Service personnel, people (tractor driver) 1

Guaranteed resource, 480 hectares

Disk harrow AGD-1.8 The unit is intended for cultivation of soils of different mechanical composition with the use and burying of plant residues in the soil in the interrows of hops.

GRIP WIDTH, m 1.8

PRODUCTIVITY, ha 1.6 - 2.0

DEPTH OF SOIL PROCESSING, cm 8 - 12

WEIGHT, kg 650

WORKING SPEED, km 8 - 12

TRACTOR WITH WHICH YUMZ-6L, T-40А ARE AGGREGATED

OVERALL DIMENSIONS, mm (LENGTH\ WIDTH\ HEIGHT) 2300 - 2100 - 1300

GUARANTEED RESOURCE, 950 hectares

FUEL CONSUMPTION, l\ha 5.8 - 6.2

AGD disc harrow - 2.1

The unit is intended for cultivation of soils of different mechanical composition with grinding and embedding of plant residues in the soil.

TECHNICAL CHARACTERISTICS

Spring type

Gripping width, constructive, m 2.1 minus 0.1

Fuel consumption, l/ha 6.8 8.0...

Productivity during the main time

of time, ha 1.5...1.8

Depth of soil cultivation, cm 8...18

Working speed of movement, km / h 8.0...12.0

Transport speed, km / h, no more than 20

Product weight (without accessories), kg 700 minus 20

Ground clearance, mm, not less than 300

Guaranteed resource, 1030 hectares

AGD disc harrow - 2.5

Spring type

Gripping width, constructive, m 2.5 minus 0.1

Fuel consumption, l/ha 7.2 8.5...

Productivity during the main time

time, ha, not less than 1.8...2.2

Depth of soil cultivation, cm 8...18

Working speed, km / h 8.0...12.0

Transport speed, km / h, no more than 20
(//tractor-service.com)
Weight of the product (without accessories), kg 820 minus 20

Ground clearance, mm, not less than 300

Service personnel, people (tractor driver) 1

Guaranteed resource, ha 1240

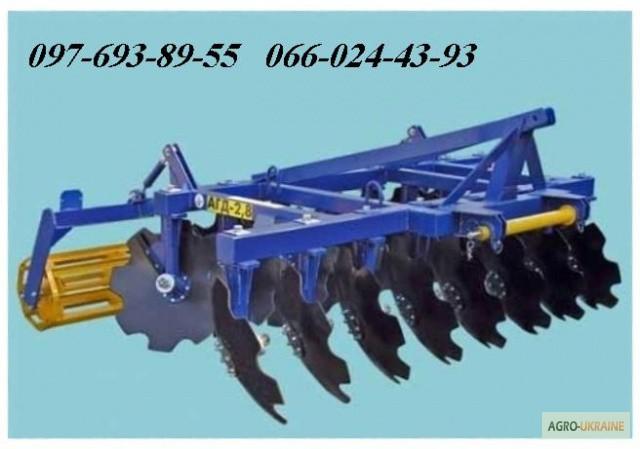

AGD disc harrow - 2.8

Spring type

Gripping width, constructive, m 2.8 minus 0.1

Fuel consumption, l/ha 7.4 8.9...

Productivity during the main time

of time, ha, not less than 2.0 2.6...

Depth of soil cultivation, cm 8...20

Working speed, km / h 8.0...12.0

Transport speed, km / h, no more than 20

Weight of the product (without accessories), kg 1160 minus 20

Ground clearance, mm, not less than 300

Guaranteed resource, 1,600 hectares

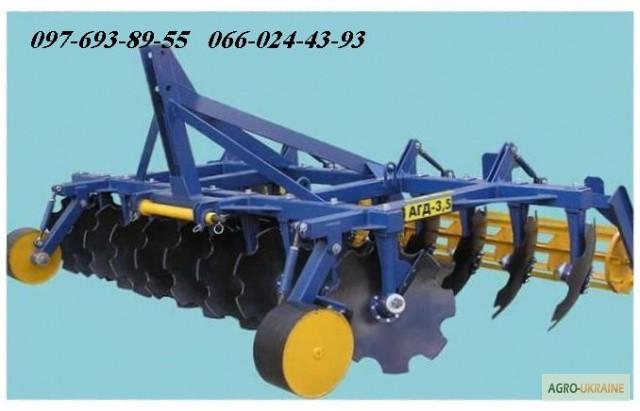

AGD disc harrow - 3.5

Spring type

Gripping width, constructive, m 3.5 minus 0.1

Fuel consumption, l/ha 9.6 11.0...

Productivity during the main time

of time, ha 2.6 4.2...

Depth of tillage, cm 8...18

Working speed, km / h 8.0...12.0

Transport speed, km / h, no more than 20

Weight of the product (without accessories), kg 1350

Guaranteed resource, ha 1830

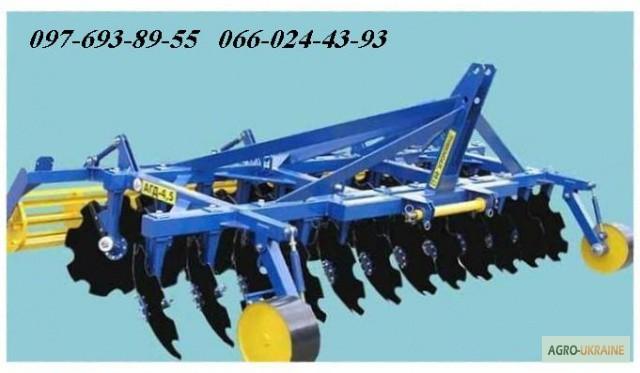

AGD disc harrow - 4.5

Spring type

Gripping width, constructive, m 4.5 minus 0.1

Fuel consumption, l/ha 11.5-13.5

Productivity during the main time

of time, ha, not less than 3.6 5.1...

Depth of soil cultivation, cm 8...18

Working speed, km / h 8.0...12.0

Transport speed, km / h, no more than 20

Weight of the product (without accessories), kg 1750

Guaranteed resource, 2200 ha.

AGD-5.6 disk soil tillage unit

GRIP WIDTH, m 5.6

PRODUCTIVITY, ha 4.2 - 6.8

WEIGHT, kg 2450

WORKING SPEED, km 8 - 12

OVERALL DIMENSIONS, mm (LENGTH\ WIDTH\ HEIGHT) 2700 - 7500 - 1700

GUARANTEED RESOURCE, 2,900 hectares

FUEL CONSUMPTION, l\ha 15.3 - 17.6

AGD-7.2 disk soil tillage unit

CAPTURE WIDTH, m 7.2

PRODUCTIVITY, ha 5.5 - 8.9

WEIGHT, kg 3150

WORKING SPEED, km 8 - 12

OVERALL DIMENSIONS, mm (LENGTH\ WIDTH\ HEIGHT) 2700 - 7500 - 1700

GUARANTEED RESOURCE, ha 3770

FUEL CONSUMPTION, l\ha 23.0 - 26.4
