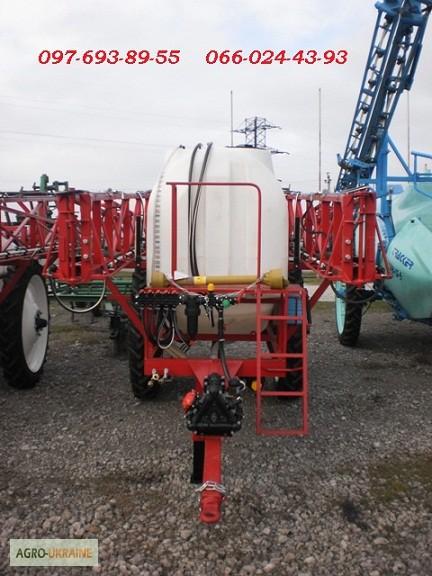

Sprayer OP-3000, Dnipropetrovsk region.

SPRAYER BAR EXTENSIVE
OSHSH-3000/24

The sprayer is intended for spraying field crops with pesticides and applying liquid mineral fertilizers.

Technical characteristics:

Productivity in 1 hour of the main time - 19.2 - 28.8 ha/h ;
Tank capacity - 3000 l ;
Working width of capture - 24 m ;
The flow rate of the working fluid is regulated.
within - 70 - 400 l/ha (the sprayer is equipped with 3 standard sizes of atomizers);
3-ма типоразмерами распылителей) ;
Working speed - 8 - 12 km/h ;
Supplypump - 250 l/min. ;
Working pressure - 1.5 - 8.0 atm ;
The height of the location of the sprayers is 154
поверхности земли регулируется в пределах - 0,7 - 1,9 м ;
Ground clearance - 0.75 m (tyres 9.5 R 42)

Complete set:

The sprayer is equipped with imported components and working bodies (pump, control panel, filters, nozzles - produced by the Italian companies "IMOVILLI POMPE", "ARAG", sprayers - by the German company "LECHLER")

Design features:

1. The sprayer has a tank of a special shape, which ensures complete self-emptying with stable pump operation.
2. The sprayer has an effective (patented) rod suspension mechanism, which provides stabilization of the position of the working bodies and smoothes dynamic loads in the vertical and horizontal planes, which ensures high uniformity of processing and durability of the sprayer.
3. Lifting and lowering, folding and unfolding of the bar is carried out with the help of the hydraulic system of the tractor with fixation in the working position with the help of hydraulic locks.
4. The transmission of the torque from the cardan shaft to the pump is carried out through an intermediate support and an elastic coupling, which significantly increases its reliability and durability.
5. On the rod, in places where it is likely to be worn, install a plate made of a material that has a very low coefficient of friction.
6. For the convenience of technological maintenance, the sprayer is equipped with a special platform, which is located near the neck of the tank.
7. At the request of the customer, the sprayer can be equipped with an on-board computer, a foam marker or a GPS navigation system, sprayers of different types and sizes.(//tractor-service.com)
SPRAYER STANGOVYY SHYROKOZAHVATNYY
OSHSH-3000/21

The sprayer is intended for spraying field crops with pesticides and applying liquid mineral fertilizers.

Technical characteristics:

Productivity in 1 hour of the main time - 19.2 - 28.8 ha/h ;
Tank capacity - 3000 l ;
Working width of capture - 21m;
The flow rate of the working fluid is regulated.
in the range - 70 - 400 l/ha (the sprayer is equipped with 3 standard sizes of atomizers);
3-ма типоразмерами распылителей) ;
Working speed - 8 - 12 km/h ;
Pump supply - 250 l/min. ;
Working pressure - 1.5 - 8.0 atm;
The height of the location of the sprayers is 192
поверхности земли регулируется в пределах - 0,7 - 1,9 м ;
Ground clearance - 0.75 m (tyres 9.5 R 42)

Complete set:

The sprayer is equipped with imported components and working bodies (pump, control panel, filters, nozzles - produced by the Italian companies "IMOVILLI POMPE", "ARAG", sprayers - by the German company "LECHLER")

Design features:

1. The sprayer has a tank of a special shape, which ensures complete self-emptying with stable pump operation.
2. The sprayer has an effective (patented) boom suspension mechanism, which stabilizes the position of the working bodies and smoothes dynamic loads in the vertical and horizontal planes, which ensures high uniformity of processing and durability of the sprayer.
3. Lifting and lowering, folding and unfolding of the bar is carried out with the help of the hydraulic system of the tractor with fixation in the working position with the help of hydraulic locks.
4. The transmission of the torque from the cardan shaft to the pump is carried out through an intermediate support and an elastic coupling, which significantly increases its reliability and durability.
5. On the rod, in places where it is likely to be worn, install a plate made of a material that has a very low coefficient of friction.
6. For the convenience of technological maintenance, the sprayer is equipped with a special platform, which is located near the neck of the tank.
7. At the request of the customer, the sprayer can be equipped with an on-board computer, a foam marker or a GPS navigation system, sprayers of different types and sizes.
