NPS soybean attachment (Flekc) for combines (4m-9m) 2019, Ternopil region.| ||137

Device for harvesting soybeans| ||155 НПС(flex) предназначено для переоборудования grain harvesters domestic and importedharvesters for direct harvesting .(from 5m to 9m)

The difficulty of harvesting soybeans with a combine harvester is the need to mow them at a low cut. The bulk of the soybean grain is located in the lower layers of plants in close proximity to the soil surface. . Poetov's seed harvesting machines, in accordance with the agricultural requirements imposed on them, must cut plants at a height of no more than 5 cm. The attachment (Flex) perfectly copes with this task.

The attachment for harvesting soybeans and legumes bends up to 10 cm and guarantees a cut up to 1 cm above the surface of the earth.
The attachment automatically copies the relief of the field in the longitudinal and transverse directions at the given cutting height.
Copying the relief is carried out with the help of a unique system of adherence to the ground, thanks to which deflection and adherence to the ground are achieved.
Thanks to the floating cutting device, it provides a low cut of soybeans, due to the reduction of losses, it increases the gross harvest of soybeans and peas by 20-30%.

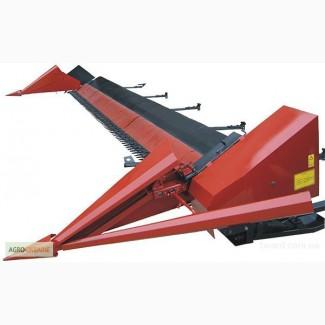

The design of the device for harvesting soybeans (Flex) consists of the following main components:
-left and right sidewalls;
-floating finger-mounted cutting device with a system of ski-lever copying of the soil relief along the entire width of the harvester; 170
-привода выносного режущего аппарата .
-right and left active breakers and protective fences;
- quick-connecting grippers for fastening the device to the sides of the harvester;
The device for harvesting soybeans is driven by a V-belt from the drive pulley of the harvester through the MPN gearbox.
The height of the cut is regulated from 10 to 100 mm.
The attachment is mounted on the harvester with the help of brackets and side locks.
(//tractor-service.com)
Installation of the device does not require disassembly of the cutting device of the grain header.
It ensures high-quality work of the combine with the smallest losses.

The original design of the set-top box excludes the impact of foreign objects on the ground.

The entire attachment for harvesting soybeans moves on shoes covered with special plastic, thanks to which it does not stick to wet soil.

The prefix (Flex) significantly improves the quality indicators of soybean harvesting.
Using a device for harvesting soybeans and legumes (Flex) reduces losses of soybeans and legumes by up to 30%.
It is used for all types of combines, the width of the grip is from 5m to 9m.

The weight of the soybean harvester varies from 500 to 700 kg, depending on the width of the grip.

The product is certified.

Warranty 24 months.

Delivery across Ukraine!
