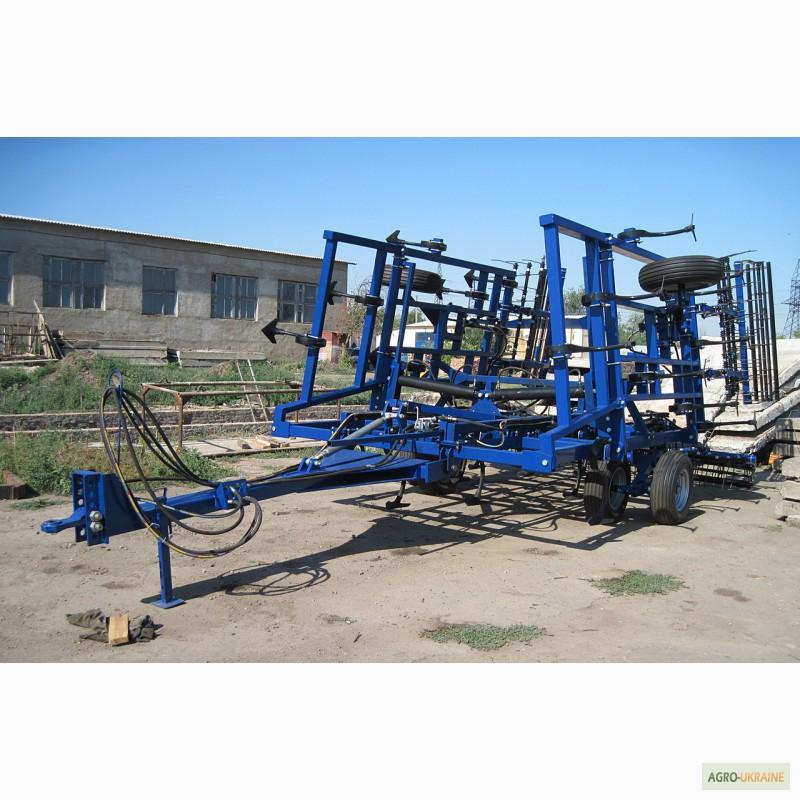

Cultivator Harvest 9.7 meters, Zaporizhia region.

Cultivators of the "Harvest" series

Cultivators of the "Harvest" series are universal, wide-grip, designed for resource-saving pre-sowing and steam cultivation of soil to a depth of 5-12 cm, cutting and combing weeds, as well as leveling and compacting the soil surface for sowing with a working speed of up to 10 km. Cultivators of the "Harvest" series are used in soil and climatic zones with soil moisture in the range of 8-27% and soil hardness in the cultivated layer in the range of 0.4-1.6 MPa.

Composition of cultivators of the "Harvest" series

- powerful construction of the cultivator frame, consisting of a central frame and wings;
- tandemwheels;
- grinding rollers;
- harrows (spring type);
- snitsa;
- hydraulic system;

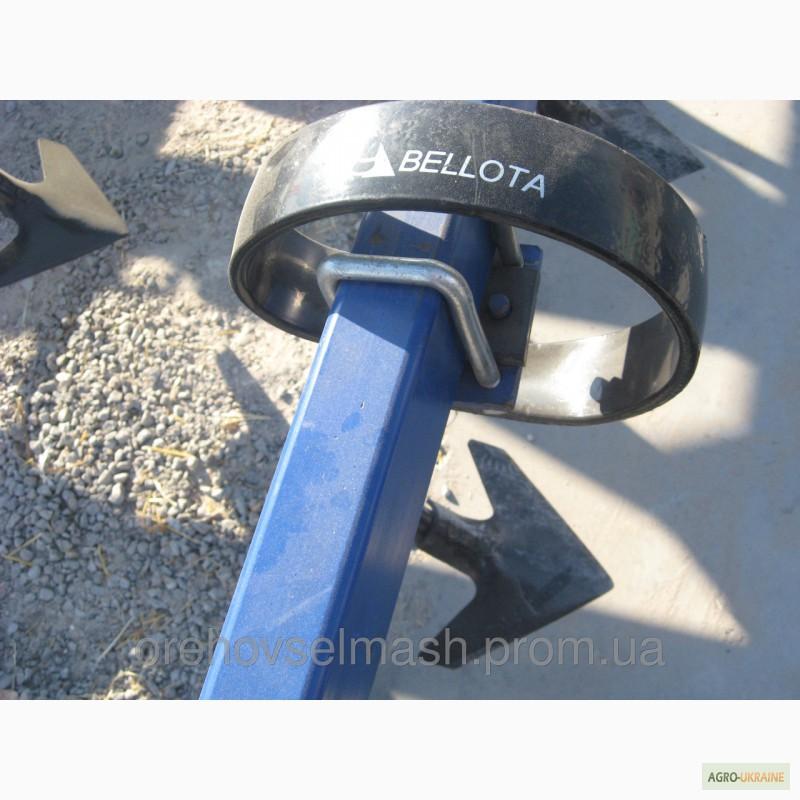

- coulters (S-shaped BELLOTA racks with a BELLOTA arrow leg, 254mm wide and 75mm overlap).

The main advantages of cultivators

- The central frame and wings are made of pipe with a section of 100x160x6, which provides a large safety margin and high reliability when working in difficult conditions.

- The wings of the cultivator allow you to copy the relief of the field relative to the horizon up to ± 10°. This makes it possible to maintain a constant depth of cultivation in fields with complex relief along the entire width of the unit's grip.

- Transport clearance (300mm) allows you to overcome significant obstacles when moving from field to field.

- Tandem wheels are used to improve cross-country ability.
(//tractor-service.com)
- The ratio between the paws in a row (537 mm) and the distance between the rows of paws (between the first and second row - 765 mm, the second and third row - 960 mm, the third and fourth row - 1065 mm, the fourth and fifth - 660 mm) without hammering the cultivator.

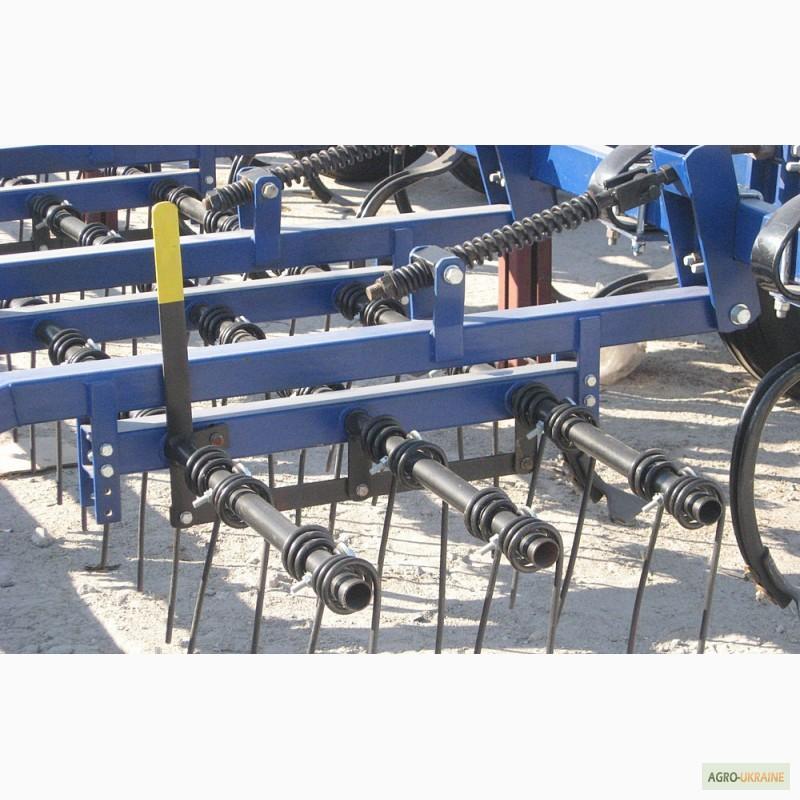

- Spring combing harrows allow you to pull out cut weeds, harvest residues and evenly distribute them over the field surface.

- Adjusting the angle of inclination of the harrow tines 5⁰ - on heavy soils with a minimum of crop residues, 15⁰ - standard setting for most soils and medium level of crop residues, 30⁰ - for high level of crop residues.

- Adjustable spring force.

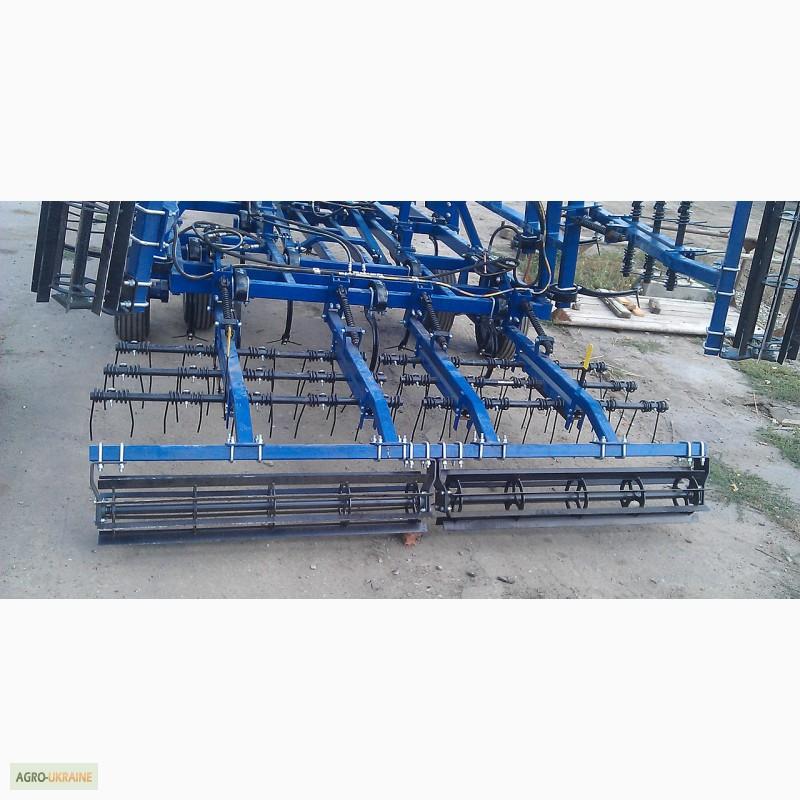

- Rollers with flat slats arranged in an involute diameter of 320 mm for grinding clods of earth without a compacting effect. Flat, knife-like strips cut the clods of earth and discard the soil and harvest residues. The vertical effort is directed only to the cutting and grinding action. Throwing soil helps to mix the soil with plant residues without compaction, which accelerates drying.

- Adjustment of processing depth is carried out by threaded rods. This allows you to quickly adjust the unit and achieve the same processing depth across the entire width of the unit.

- The convenient location of the adjustment units makes it comfortable to adjust the unit.

Features:

Productivity 8.5-9 ha/hour
The number of working bodies is 56 pcs.
The depth of soil cultivation is 5-12 cm.
Mass 4445 kg
The required power of the tractor is 175-225 l/s.
