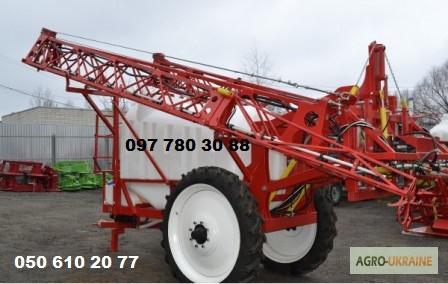

Trailed field sprayer OSHSH-3000/24, Dnipropetrovsk region.

Technical characteristics:

Productivity in 1 hour of the main time - 19.2 - 28.8 hectares/hour;
Tank capacity - 3000 l ;
Working width of capture - 24 m ;
The rate of consumption of the working fluid is regulated in the range - 70 - 400 l/a (the sprayer is equipped with 3 standard sizes of sprayers);
Working speed - 8 - 12 km/h ;
Supplypump - 250 l/min. ;
Working pressure - 1.5 - 8.0 atm ;
The height of the location of the sprayers from the surface of the earth is regulated within - 0.5 - 1.9 m.
Ground clearance - 0.75 m (tyres 9.5r 42)

Complete set:(//tractor-service.com)

The sprayer is equipped with imported components and working bodies.

Computer Bravo-180, pre-mixer, tank for washing the working fluid, (pump, control panel, filters, three-position nozzles - manufactured by the Italian companies "IMOVILLI POMPE", "ARAG", sprayers - made by the German company "LECHLER")

Design features:

1. The sprayer has a tank of a special shape, which ensures full self-release during stable pump operation.
2. The sprayer has an effective (patented) rod suspension mechanism, which stabilizes the position of the working bodies and smoothes dynamic loads in the vertical and horizontal planes, which ensures high uniformity of processing and durability of the sprayer.
3. Lifting and lowering, folding and unfolding of the bar is carried out with the help of the hydraulic system of the tractor with fixation in the working position with the help of hydraulic locks.
4. The transmission of the torque from the cardan shaft to the pump is carried out through an intermediate support and an elastic coupling, which significantly increases its reliability and durability.
5. On the bar in places where it is likely to be worn, a plate made of a material with a very low coefficient of friction is installed.
6. For the convenience of technological maintenance, the sprayer is equipped with a special platform, which is located near the neck of the tank.
