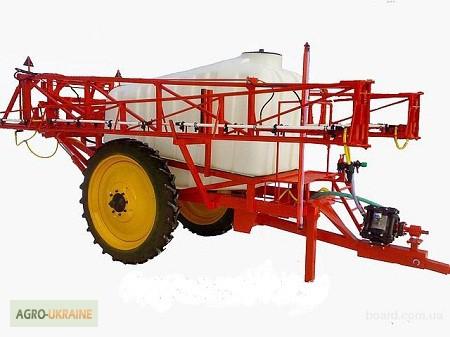

Trailed sprayer ORP-2000/18, Dnipropetrovsk region.

Technical characteristics:

Productivity for 1 hour of main time, ha/h:
- with a width of capture of 18 m 10.8 - 21.6
- with a width of capture of 21 m 12.6 - 25.2
Tank capacity, 2000 l;
Working width of capture, m 18.0
Liquid consumption rate, l/ha 50-300
Working speed, km/h 6-12
Supplypump, l/min. 163;
Working pressure in the injection communication, atm 1.5-8.0
The height of the location of the sprayers from the surface of the earth, m 0.5-1.7
(//tractor-service.com)
Complete set:

The sprayer is equipped with imported components and working bodies (pump, control panel, filters, nozzles - produced by the Italian companies "IMOVILLI POMPE", "ARAG", sprayers - by the German company "LECHLER")

Design features:

1. The sprayer has a tank of a special shape, which ensures complete self-emptying with stablepump operation.
2. The sprayer has an effective (patented) rod suspension mechanism, which stabilizes the position of the working bodies and smooths dynamic loads in the vertical and horizontal planes, which ensures high uniformity of processing and durability of the sprayer.
3. Lifting and lowering, folding and unfolding of the bar is carried out with the help of the hydraulic system of the tractor with fixation in the working position with the help of hydraulic locks.
4. The transmission of the torque from the cardan shaft to the pump is carried out through an intermediate support and an elastic coupling, which significantly increases its reliability and durability.
5. Plates made of a material with a very low coefficient of friction are installed on the bar in places of possible friction.
6. For the convenience of technological maintenance, the sprayer is equipped with a special platform, which is located near the neck of the tank.
7. At the request of the customer, the sprayer can be equipped with an on-board computer, a foam marker or a GPS navigation system, sprayers of different types and sizes. of activity
