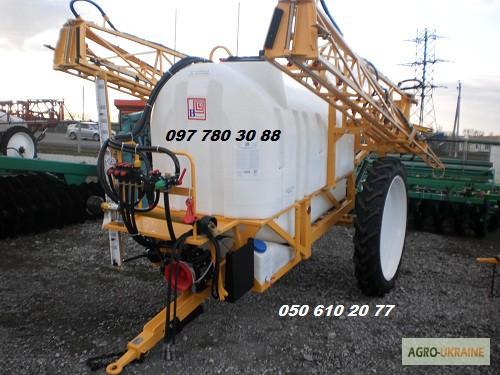

Trailed sprayer Boguslav OPK-2000-18, Dnipropetrovsk region.

Using a pump of the Italian company "Annovi Reverberi", elements of Italian communication company "Arag" and sprayers of the German company "Lechler".

Hydraulic rod 18 meters long with a pendulum stabilization mechanism and a hydromechanical oscillating extinguishing system. The production of the rod and frame includes sandblasting followed by powder coating for reliable protection against corrosion.
A parallelogram suspension with two hydraulic cylinders allows you to smoothly change the height of the bar installation from 0.5 to 1.8 meters even while driving.
The rod protection mechanism in the event of a collision with an obstacle allows the rod to deviate up to 15˚ in the vertical plane and up to 45˚ in the horizontal plane. After passing the obstacle, the bar returns to its initial position.
Polyethylene tank 2000 l.
Two injector mixers with ceramic tips installed at the bottom of the tank maintain a constant concentration of the working fluid.
The possibility of stepless adjustment of the track width from 1400 mm to 1800 mm.
OP-2000 haslarge wheels diameter R42, which allow working at high speed and provide a clearance of 650 mm.
The use of the pump of the Italian company "Annovi Reverberi", communication elements of the Italian company "Arag" and sprayers of the German company "Lechler" - leaders in the production of components for sprayers, ensures reliable and trouble-free operation of the hydraulic communications of the sprayer.

TECHNICAL CHARACTERISTICS

1.

Width of capture, m

18

2.

Buck, l

2000

3.

Annovi Reverberi pump, l/min

160

4.

Tyres

9.5R42

5.

Track width, mm

1400-1800

6.
(//tractor-service.com)
Clearance, mm

650

7.

Weight, kg

1600

8.

Working height of the bar, mm

500-1800

9.

Cardan shaft Weasler

AW 10

10.

ARAG computer

option

11.

Penny marker or Skipper GPS navigator

option

12.

Mixer 20 l with a device for washing canisters

option

13.

Wide-angle cardan shaft Weasler AW21-80˚

option
