Crate washer, Lviv region.

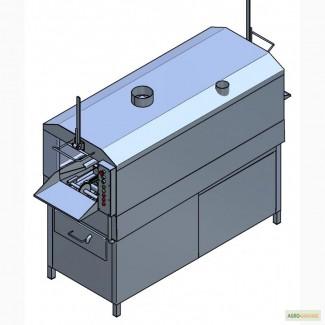

Crate washing machine. The machine is designed for washing boxes with dimensions of max. 600 x 400 x 400. It consists of four modules: tunnel, washing zone, rinsing zone, conveyor. Technical characteristics Connection to e. networks 400V/50 Hz Connection cable 5G x 4 mm2 Pump power 3 kW Pump productivity 30 m3/h Water pressure 2.5 bar Water heating Electric power TENov 2 x 10 kW Total power 24 kW Degree of protection IP65 Productivity Max. 250 boxes per time Dimensions 2600 x 1500 x 1680 Design features The side covers of the machine are equipped with safety sensors that stop its operation when removed. The design of the machine allows its further expansion by adding such modules as the blower module. The speed of the conveyor chain is regulated by a frequency converter. The water tank is thermally insulated to avoid additional heat loss. The operation of the pump is controlled by a sensor in such a way that the pump is turned on only when there is a box inside the tunnel, which allows additional water savings. The water used for rinsing is then sent to the main tank. The water level and temperature in the main tank are controlled automatically. The machine is equipped with a detergent dosing device.
