Seeder Harvest 540, Kharkiv region.

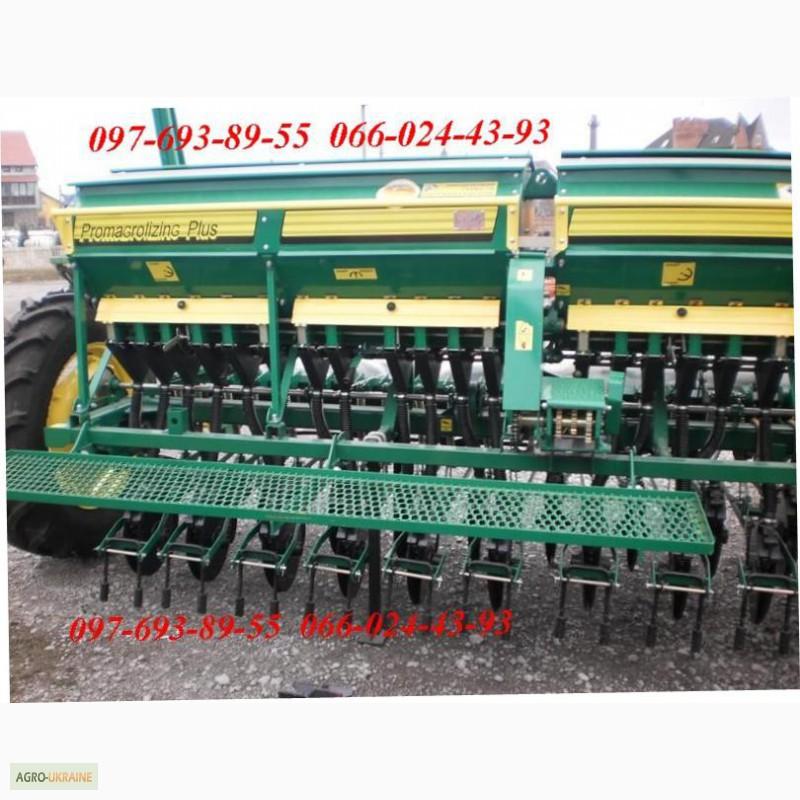

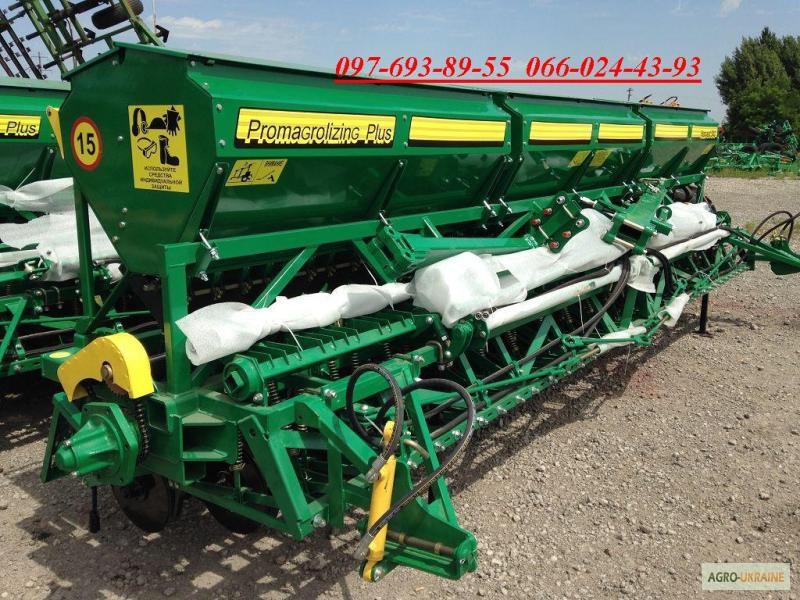

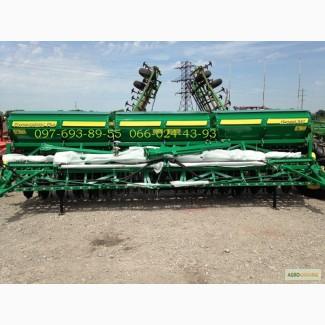

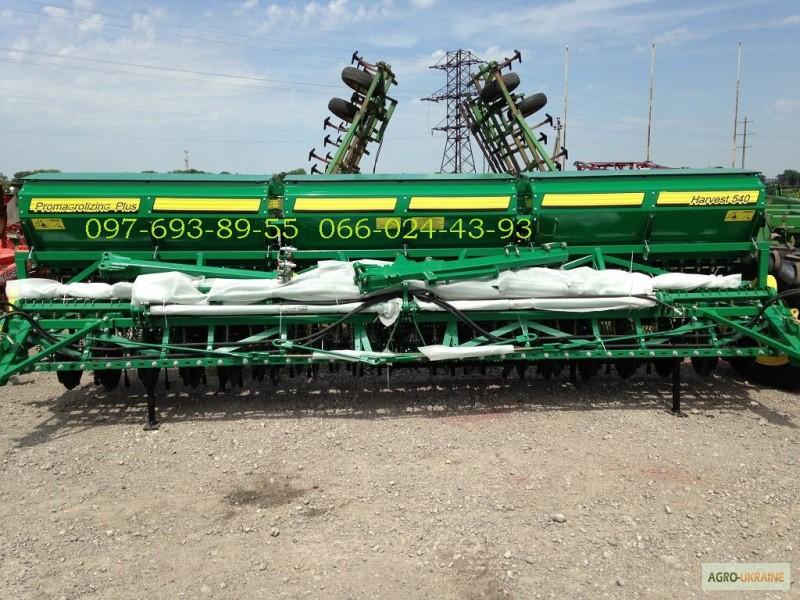

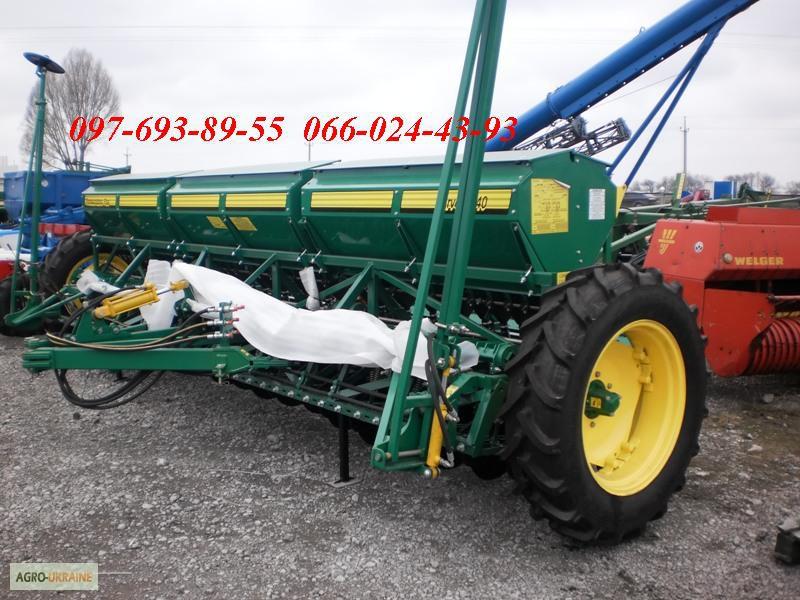

Grain seeder Harvest 540 / Harvest 540 is intended for regular sowing of seeds of grain and leguminous crops with simultaneous application of mineral fertilizers. It can be used for sowing seeds of other crops, which are close to grains in terms of seed size and sowing rates. Harvest 540 seeder models
Grain seeder Harvest 540
With finger wrappers
Grain seeder Harvest 540 - 01
Inter-row 7.5
Grain seeder Harvest 540 - 02
With rollingrollers

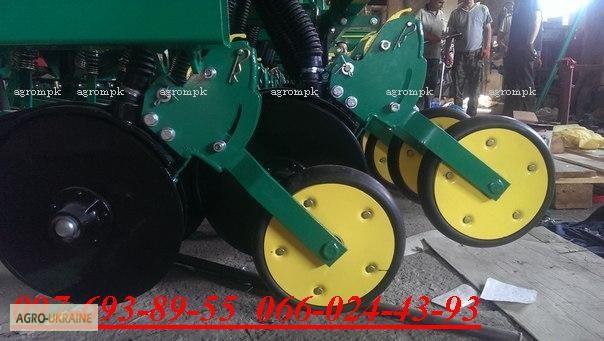

The seeder is aggregated with tractors equipped with engines with a power of 80 hp. We complete the transport device with a separate marker system - the seeder is equipped with markers on which separate hydraulic cylinders are installed, which facilitates their control by the operator from the tractor cabin. Node = coulter + rolling roller = allows you to adjust the depth of planting seeds with an interval of 1 cm with simultaneous soil rolling.
To order, the planters are equipped with a transport device, which allows them to be moved on general purpose roads without the use of additional means of transport.
Powder coating
Two-disc coulter with offset discs.
It is preferable to use on
20 hectares of fields. When using the SP-10.8 coupler, it is possible to make a tractor hydrofed wide-grip unit from two seeders, which increases productivity by 1.5-2 times.
The hitch is aggregated with tractors from 150 hp. trailer way. Due to the increase in the grip width, productivity increases by 1.5 times compared to the basic Astra SZ 3.6A model. The engine of the MTZ-80 tractor is loaded up to 85% of its power, which saves fuel by up to 20%.
Width of capture
m
5.4
Number of lines
pcs.
36
Width between rows
cm
15
Seeding rates: 170
кг/га

- for seeds

5-400(//tractor-service.com)
- for fertilized

25-200
The depth of planting seeds and fertilized
mm
40-80
Working speed
km/h
9-12
Productivity
ha/time
4.9-6.5
Hopper capacity, (total):
dm3
 1600
- for seeds

960
- for fertilized

640
Dimensions (length x width x height)
mm
2950х6750х2750
Mass.
kg
2803±100
It is aggregated with tractors with a capacity of 204
л.с.
to 85
