KZK-6-01, KZK-6, KZK-9.2, KZK-10, KZK-12.5, Dnipropetrovsk region.

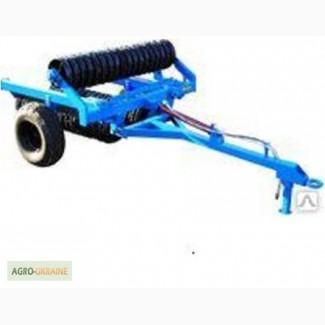

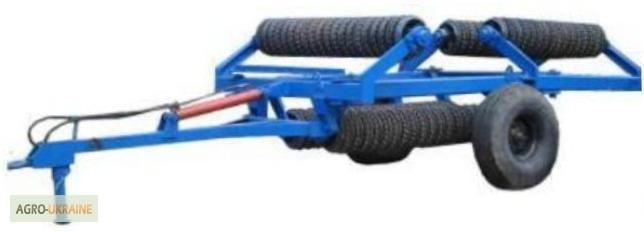

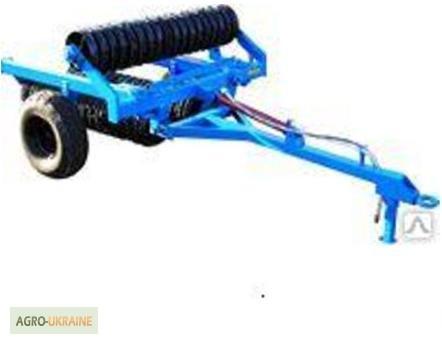

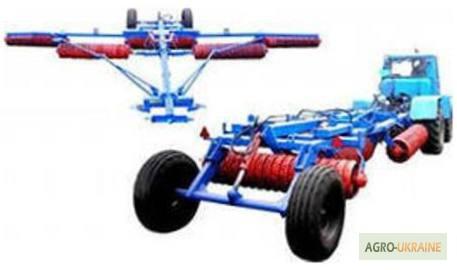

Rinks toothed-ring series KZK are intended for pre-sowing and post-sowing soil rolling, grinding of the surface soil crust and partial leveling of the plowed field.
Technical characteristics: Mark KZK-6 KZK-6A KZK-9,2 KZK-10

It is aggregated with tractors of traction class 1.4 1.4 3 3
Semi-trailer type
Gripping width, m 6 6 9.2 10
Productivity, ha/hour 6.5 6.6 9.8 6-11
Working speed, km/h up to 12 up to 12 up to 12 up to 10
outer diameter of the wedge ring, 350 460 350 350(//tractor-service.com)
outer diameter of the gear ring, mm 360 470 360 360
Total mass kg. 2650 3100 3700 4600
Dimensions in working condition, mm :
length 3580 3580 3580 7000
width 6240 6240 9285 10250
height 970 1025 970 1000
Dimensions in transport condition, mm :
length 4930 4930 4930 6800
width 2290 2290 2290 2300
height 1570 1670 1570 140
