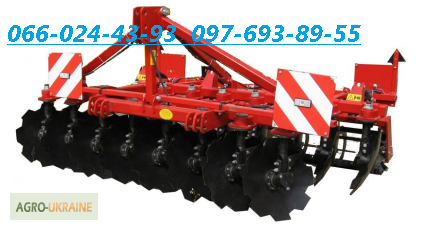

Disk plow PDM-3.0, Dnipropetrovsk region.

Disk plow PDM-3.0 with adjustment of the track are intended for the preparation of soils that are not clogged with slate and other obstacles, for sowing grain and technical crops by loosening the field surface to a specified depth with a specific soil resistance up to 0.9 kg/cm2, hardness 35 kgf/cm2 and humidity up to 27%.
In one pass, the unit grinds and compacts plant residues, shreds and levels the field surface, and compacts applied fertilizers.
Constructive features of PDM aggregates:
Working width (m) 3.0
Productivity (ha/hour) 2.4 - 3.0
Processing depth (cm) 8 - 20(//tractor-service.com)
Angle of attack of discs (degrees) 16...20...24
The diameter of the disk of the working body (mm) 640
Number of working bodies (pieces) 16
Working speed of movement (km/h) 8 - 10
Transport speed, no more (km/h) 20
Unit weight (kg) 1400
Necessarypower of the tractor (HP) 135 - 150
