Stabilizer of air pressure SDV-6, SDV-6-M1, Kharkiv region.

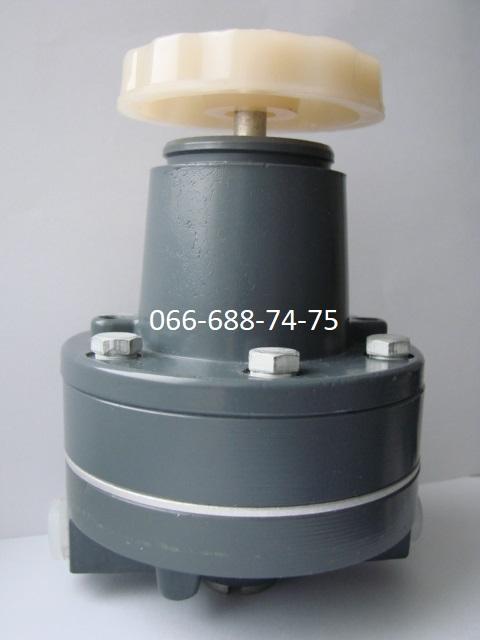

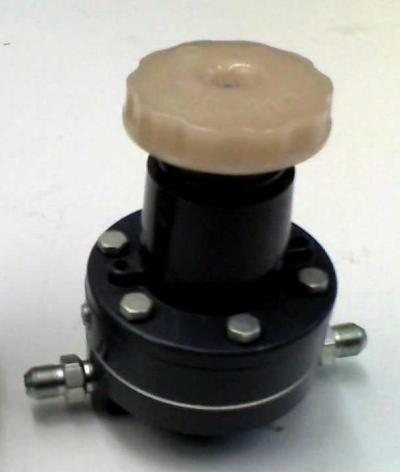

Stabilizer of air pressure SDV-6
Technical description of air pressure stabilizer SDV-6
Air pressure stabilizer SDV-6 is intended for reduction and stabilization of air pressure in control and regulation systems, for powering devices and actuators. It is used in petrochemical, food, chemical industry, mechanical engineering and other industries.
Stabilizers SDV-6 belong to the rebuildable single-channel, single-functional products and are mounted in a vertical position on the air duct or bracket in the immediate vicinity of the air filter.
The SDV-6 stabilizer is designed to work both indoors and outdoors (under a canopy) with an ambient temperature ranging from minus 50°C to plus 60°C and relative humidity ranging from 30 to 80%.
Technical characteristics of the air pressure stabilizer SDV-6
Maximum air flow rate - 6 m3/h
Permissible inlet pressure - 0.35...0.8 MPa (3.5...8 kgf/cm2)
The output pressure adjustment limit - 0.02...0.36 MPa (0.2...3 kgf/cm2)
Output pressure stabilization error, MPa (kgf/cm2) at an ambient temperature of 20±5°С:(//tractor-service.com)
- when changing the input pressure - ±0.003 (0.3)
- when the flow rate changes - ±0.006 (0.6)
Overall dimensions: 90×155×146 mm
Mass, not more than: 1 kg.
New devices infactory packaging.

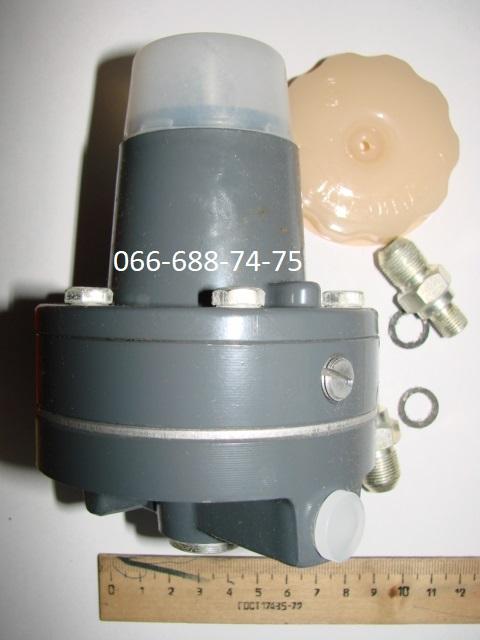

Two connecting fittings are included.
Specify the price.
Phone: (O66) 688-74-75, (O67) 315-36-33

Air pressure stabilizer СДВ6, СДВ-6-М1, СДВ6М1, СДВ6-М1, СДВ-6М1, СДВ-6
