Centrifugal fan OBR 200 M-2K, Donetsk region:

Centrhoeal fan OBR 200 M-2K with single-phase and three-phase motor.

Model Voltage, V Power, W m3/hour rpm Pressure, Ra
OBR 200 M-2K 220 600 1800 2730 900

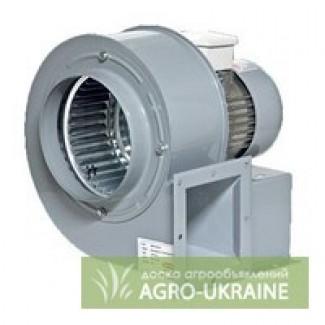

Fan OBR 200 M-2K
- Centrifugal fan with an asynchronous single-phase and three-phase motor, on non-wearing ball bearings with a long service life. Insulation class "B&F", degree of protection IP44 and IP54.
- Pre-bent impeller made of galvanized steel sheet, dynamically balanced according to DIN ISO 1940 standards.
- Body made of light steel sheet painted with epoxy-polyester paint.
- Designed for high pressure and maximum air flow.
Ventilation of industrial and household premises.(//tractor-service.com)

Characteristics
Main
Industrial fan design type Radial (Central)
The type of industrial fan according to the execution is Multi-zonal.
Productivity 1800.0 (cubic m/hour)
Rotational frequency 2800.0 (rpm)
Power consumption 0.6 (kW)
Mains voltage 220~240 V
Weight 10.0 (kg)
Warranty period 12 (мес)
