Reaper attachment for harvesting sunflower, sunflower harvester, Zaporizhzhia region.

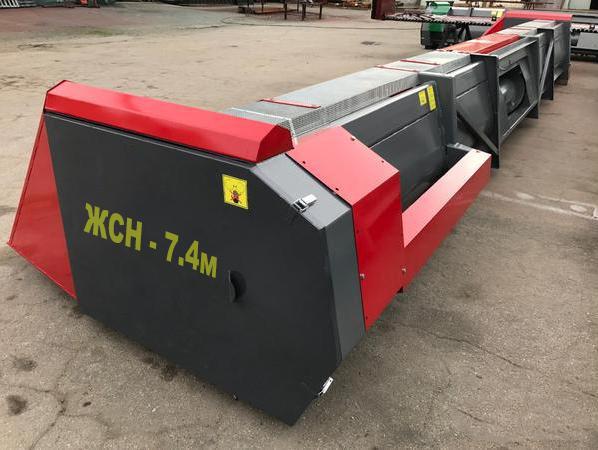

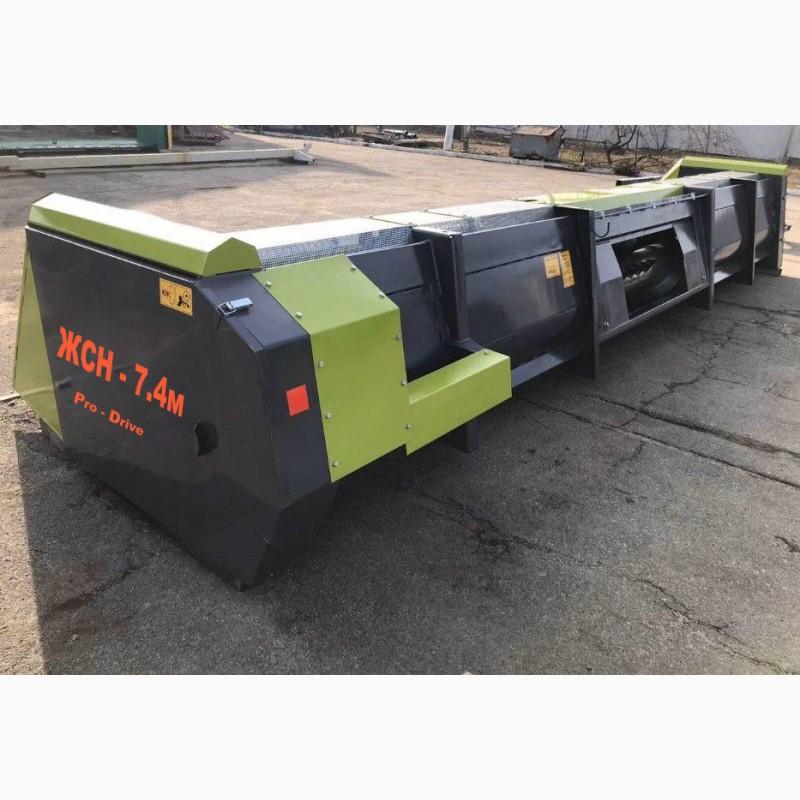

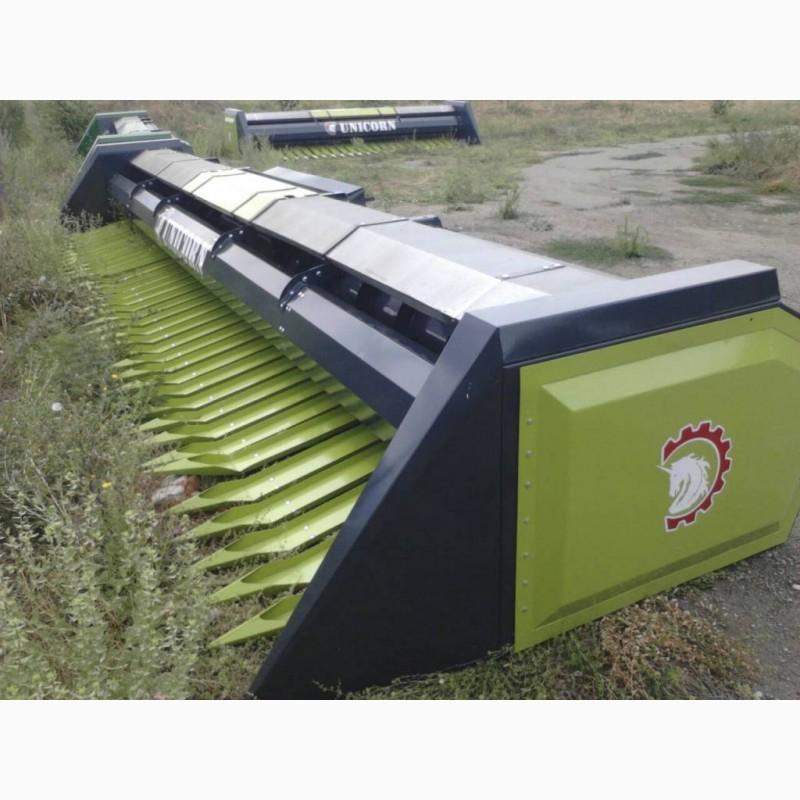

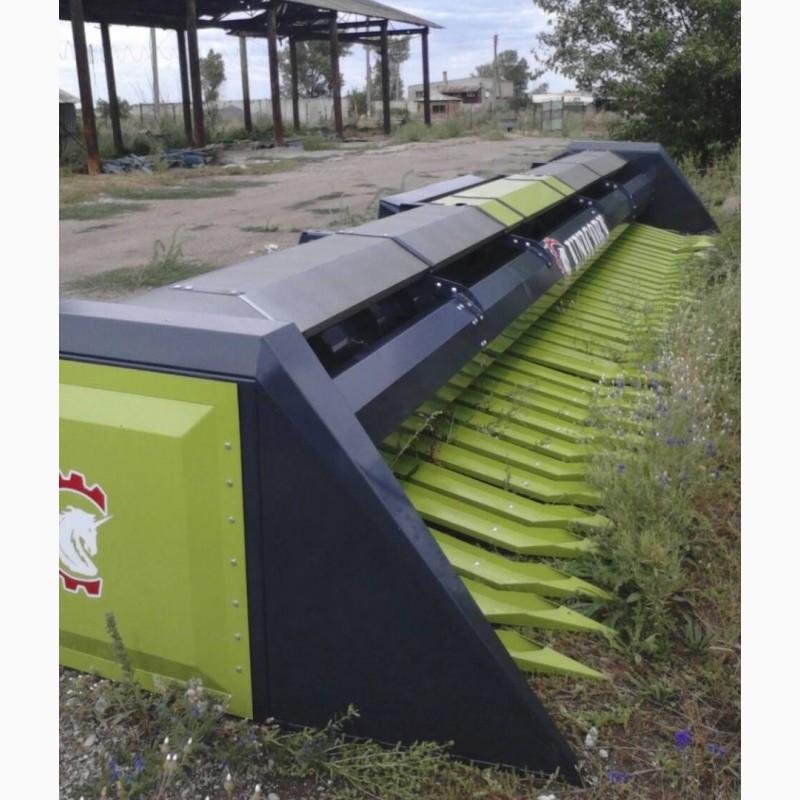

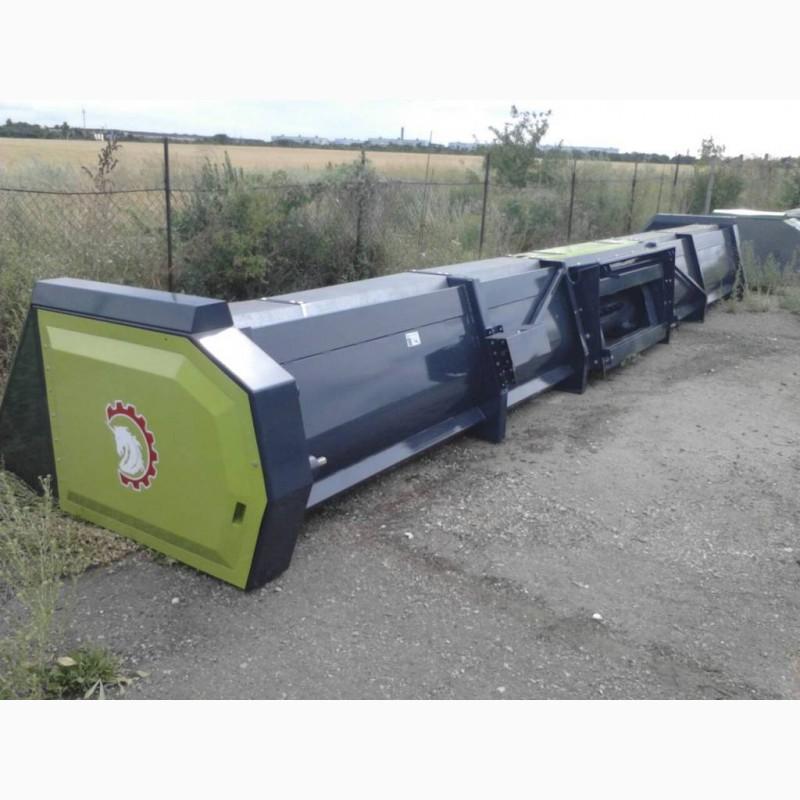

ZhSN-6m; 7.4m; 9.1m rowless sunflower harvester for domestic and imported harvesters intendedfor harvesting row sunflower and continuous sowing in all climatic zones of its cultivation.

The harvester is made in 3 versions with a 6m grip; 7.4m; 9.1m, manufactured to order forspecific combine.

Technical characteristics:

width of capture - 6m-7.4m-9.1m
productivity - according to the harvester
cutting height - 250-800mm
cutting device - Schumacher (MPN knife drive)
knife stroke - 700 rpm

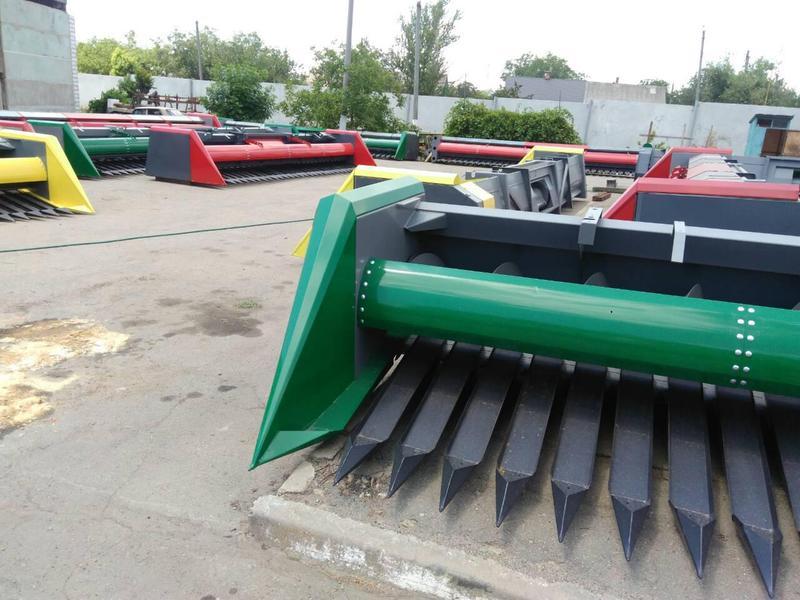

divider width - 170mm
the length of the divider is 1400mm
interaxial distance between dividers - 225mm(//tractor-service.com)

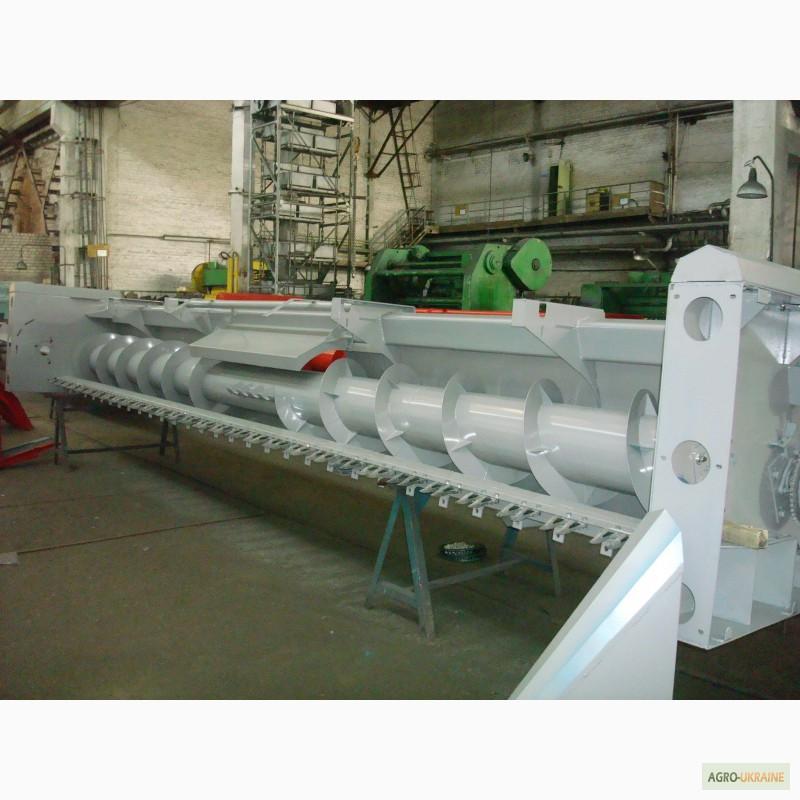

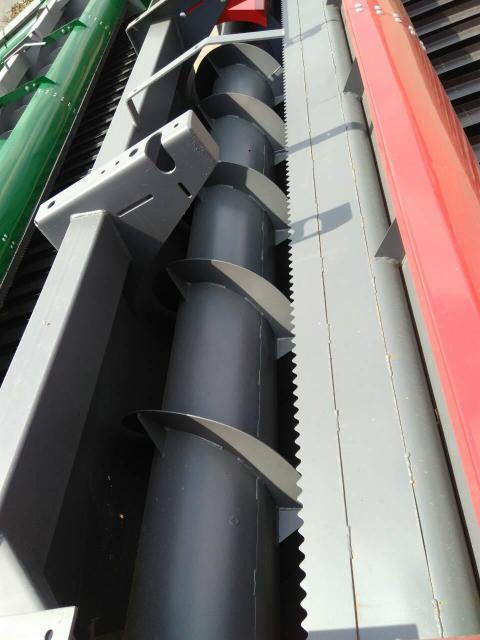

the diameter of the spiral of the auger - 540 mm
step between turns of the screw spiral - 500mm
diameter of the central supporting pipe of the auger - 250 mm
screw rotation speed - 176 rpm
aggregated with combines with a capacity of 250 to 350 liters. with.

Overall dimensions:

height - 1.1 m
width - 2.34m
mass - 2000-2470-3070 kg.

The harvester is designed and manufactured on the basis of importedharvesters for harvesting sunflowers Zaffrani (Italy) company.

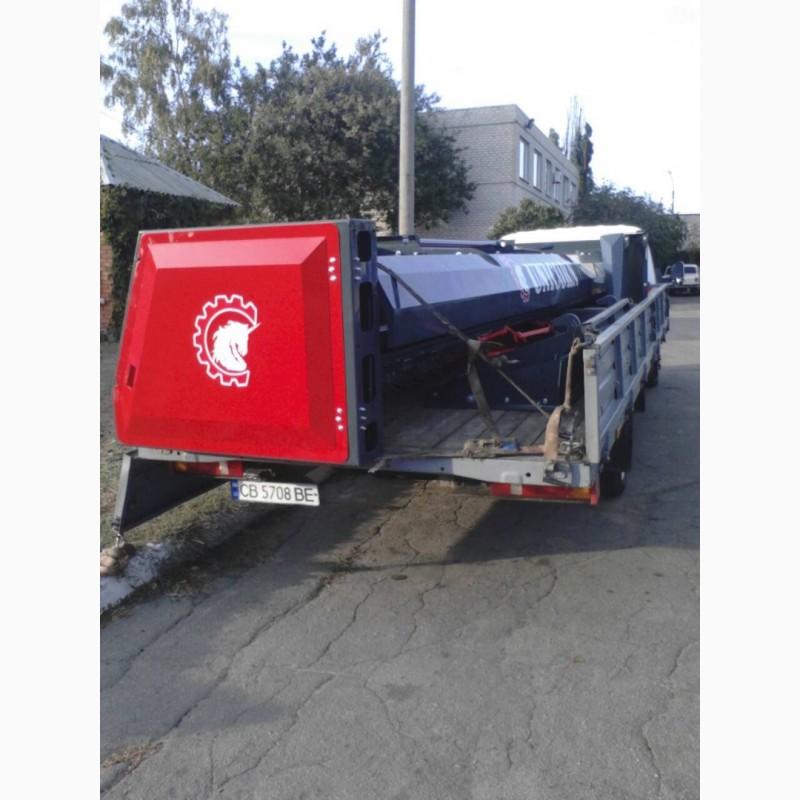

Factory warranty. Delivery to the household
