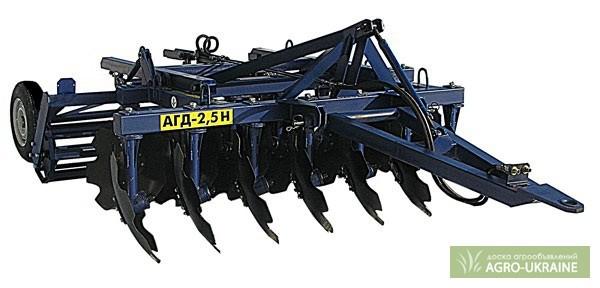

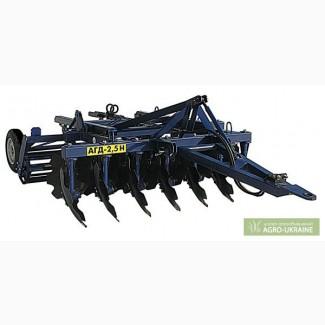

Disk harrow AGD-2.5H, Dnipropetrovsk region.

Агрегат ґрунтообробний дисковий причіпний АГД – 2,5Н (запатентовано)
The unit is intended for the processing of compacted soils of variousmechanical composition with grinding and incorporation of harvest residues into the soil under the following conditions:
- the hardness of the soil is not more than 3.5 MPa,
- soil moisture not more than 27%,
- height of harvest and plant residues up to 30 cm.
The unit is designed for work with tractors of the 14 kN class (1.4 ts)
The unit can be operated in all soil and climatic zones.
TECHNICAL CHARACTERISTICS
Trailer type
Construction width, m 2.5±0.1
Productivity ha/h, 1.8...2.2
Depth of tillage, cm 8...18
Working speed, km/h 8.0...12.0(//tractor-service.com)
Transport speed, km/h 20
Weight of the product (without accessories), kg 1160 ± 50 Overall dimensions, mm, no more
length 4800 ± 150
width 2800± 150
height 1000± 150
Ground clearance, mm, not less than 300
Service personnel, person. (tractor driver) 1
Guaranteed resource, ha 1240
Transfer to transport and working position is hydraulic
Options for using AGD-2, 5H:
- as a trailed unit, is attached to atractor using a towing device;
- as an intermediate option, semi-mounted;
- as a mounted tool, move the towing device to a vertical position,
disconnect the wheel arch, hang the unit on the tractor's three-point system; |183
