Spring sprayers OP-600,OP-800, Dnipropetrovsk region.

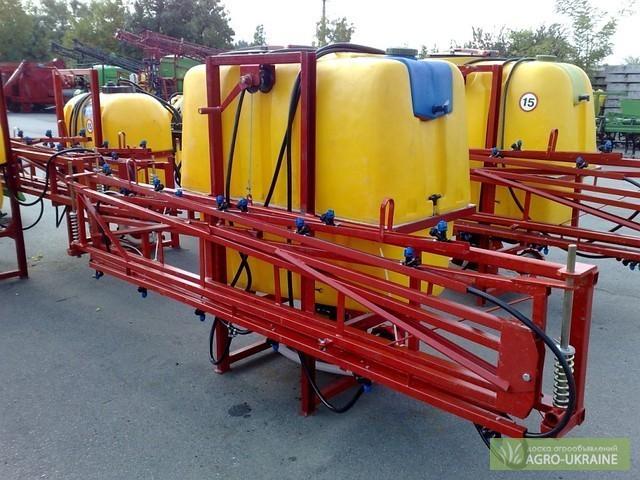

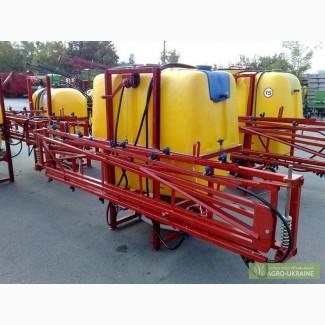

Spring sprayer

200 l/ rod 10 m
400 l/rod 12 m
600 l/ rod 14 m
800 l/ rod 16 m
1000 l/ rod 16 m

Technical data:
Tank volume l 200 400 600 800
Rod length m 10 12 14 14-16
Working pressure MPa 0.2-2.0 0.2-2.0 0.2-2.0
Number of sections pcs. 3 3 3
Number of pcs. 16-20 24 24-28 24-28(//tractor-service.com)
sprayers
Distance between m 0.5 0.5 0.5 0.5
sprayers
The type of sprayers is flat-jet.
Hydraulic mixing
Overall dimensions m 1.1x0.95x2.2 1.1x0.95x2.2 1.5x0.95x2.2 2.3x0.95x2.2
Weight kg 120 155 to 200 to 220
Pump membrane
l/m 70 70 100 100
PTO speed rpm 540 540 540 540
Maximum pressure Mra 2 2 2 2
Sections of the managing unit 4 4 4 4
valve
Tractor class T-25, MTZ, YMZ, T-40 MTZ, YMZ, T-40
