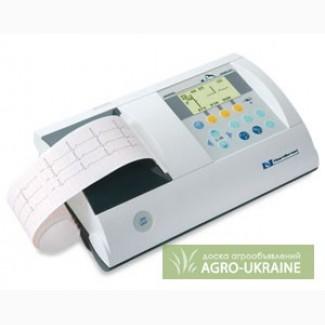

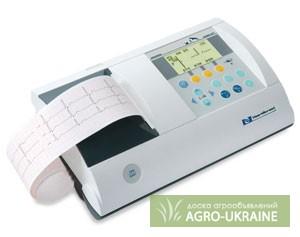

HeartScreen 60G VET electrocardiograph, Poltava region.

Electrocardiograph Heart Screen 60G Vet, Innomed Medical (Innomed) is a veterinary three-channel cardiograph that allows recording the bioelectric potentials of the heart for the diagnosis of the cardiovascular system in animals, mainly dogs, cats, horses, and laboratory animals. The device, working from a battery or from the network, has a synchronous 3-channel amplifier and an ECG signal processor, with subsequent printing on a thermal printer. High-speed data transfer through a serial port to a personal computer ensures the display of 3 ECG channels on the PC screen in real time with the possibility of their further processing. The device can be ordered either with different patient cables (KPAC4, KPAC5). The device automatically recognizes the type of cable, and in the case of the KPAC5 cable, you can use one lead for the limbs.

Heart Screen 60G Vet (Innomed, Hungary) is easy to use. Basic functions, selection of preset recording mode, recording, and data printing can be performed by pressing several buttons located under the device display. With the help of an additional Bluetooth module, it is possible to connect to a computer without a cable, this will make it easier to examine patients.

Cardiograph Heart Screen 60G Vet, even of the basic configuration, can be connected to a personal computer. Thus, it is possible to display all 3 ECG channels on a large PC screen in real time, as well as save records. In addition to the date and exact time of registration, the identification number or the entered name of the animal is automatically assigned, which provide identification of the records saved by the device.

Archiving and monitoring is performed by the cardiology data management program InnoVet for Windows. With the help of this new cardiology database InnoVet for Windows and the HeartScreen 60G Vet electrocardiograph, you can create a veterinary ECG diagnostic center.

There are several variants of the veterinary electrocardiograph Heart Screen 60G Vet (Innomed) with the following features:

base version:

Three-channel mode of automatic or manual printing, built-in clock, saving records, replaceable battery pack

SpO2 version:

In addition to the functions of the basic version, a built-in pulse oximetry module is included (option)

cardiology data management program InnoVet for Windows (option):

It can be additionally ordered for any of the above versions. The program, installed on an IBM-PC compatible personal computer, allows you to perform ECG monitoring in real time, save electrocardiograms and analysis, search and display previously saved cardiograms. The program works under the Windows operating system.

Technical characteristics of the Heart Screen 60G Vet electrocardiograph:
(//tractor-service.com)
dimensions and weight: 250x150x70mm, 1.2kg (without accessories)
power supply: 220V 50 / 60 Hz, 0.3-0.6 A
battery type NiMH 1500 mAh, 10V;
battery life: 6 hours in monitoring mode, 30 minutes in printing mode;
leads: 3 standard (6 chest electrodes) and 1 lead from the limbs (in the case of KPAC5)
paper speed: 5, 25, 50 mm/s +/- 1%
sensitivity: 2.5, 5, 10, 20 mm/mV +/- 3%
paper: thermal paper with a width of 58 mm in a roll of up to 50 m.
printer: high-resolution thermal head, 16 dots/mm, printer resource 50,000 m;
registration modes: 3 channels in manual or automatic mode
data to be printed: ECG curves, date, time, personal code of the patient;
ECG amplifier: o frequency range: 0.5-150 Hz; o inherent noise level at the input: no more than 20 μV; o common-phase signal attenuation coefficient: not less than 100 dB; o input impedance: not less than 50 MΩ; o input signal range: ± 8 mV;
sampling frequency: 1000 Hz per channel;
ADC resolution 13 bits
filters: network 50/60 Hz, anti-tremor 35 Hz, with the possibility of separate inclusion
output: RS232 serial port;
LCD display: graphic, 58x34 mm or 64x128 pixels
data on the LCD display: 1 real-time ECG channel, device operating mode, heart rate;
controls: film keyboard with LED indicators
electrical safety: protection class I, type CF;
patient circuit leakage current: no more than 10 μA
protection from defibrillation: only for cable with protection
environmental requirements:
working temperature: 0°С...+45°С
storage temperature: -20°C...+55°C
