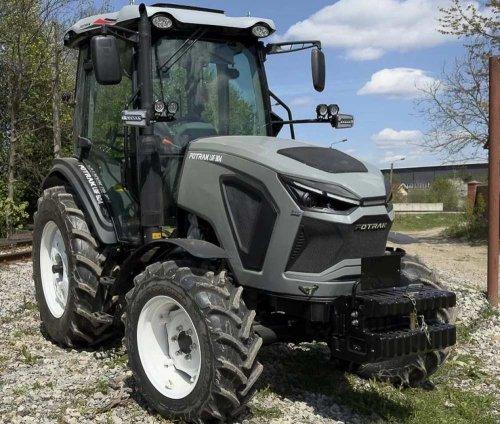

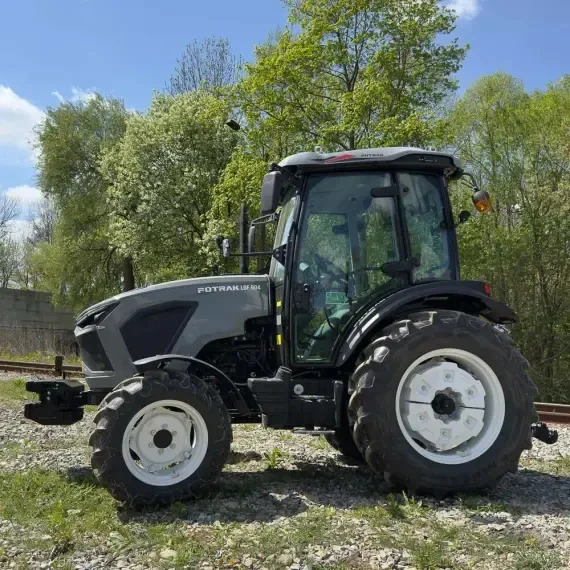

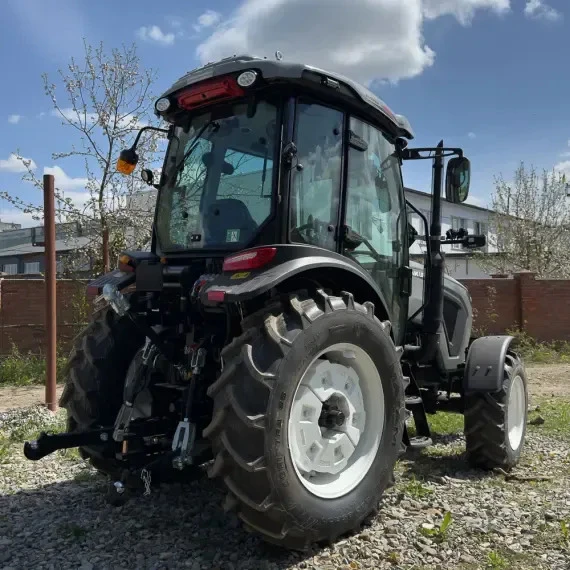

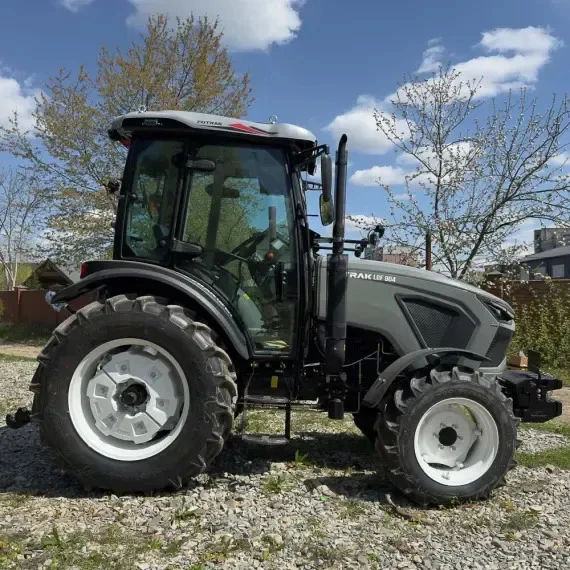

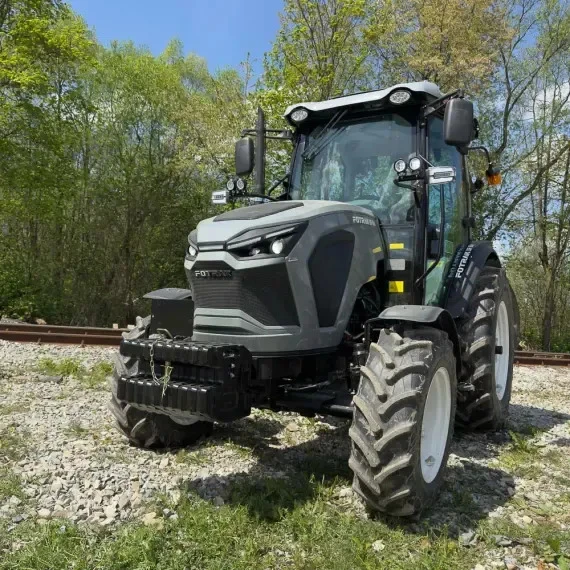

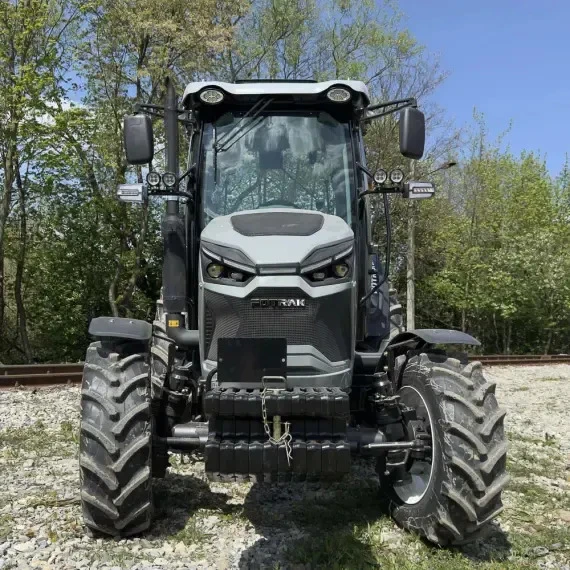

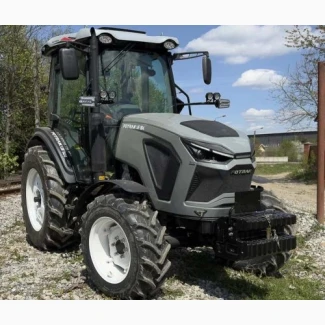

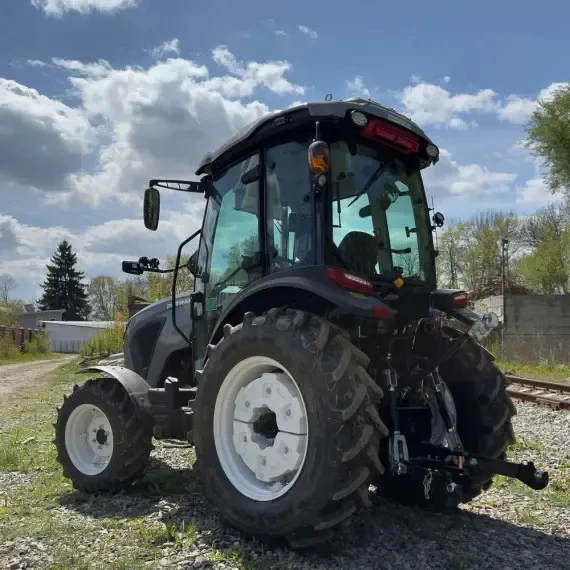

Tractor FOTRAK LGF 904, Kyiv region.

The FOTRAK LGF 904 tractor is a modern and powerful agricultural machine with a capacity of 90 hp. (66.2 kW), which is designed to perform heavy energy-intensive work on medium and large farms with an area of ​​up to 100–120 hectares. This model is a notable novelty on the Ukrainian market, which has gained popularity thanks to an excellent combination of traction characteristics and premium comfort for the operator.

Technical characteristics
Engine: Reliable 4-cylinder water-cooled YTO Y4105ZT turbodiesel. Thanks to the working volume of 4200 cm³, the engine provides high torque and stable operation with heavy wide-grip equipment with low specific fuel consumption (323 g/kW·h).

Transmission: Fully synchronized mechanical gearbox with gear formula (4+4)x3, giving 12 forward and 12 reverse speeds. This allows you to smoothly select the speed from 1.8 to 28.7 km/h for a specific operation.

Clutch: Reliable dry two-disc clutch.

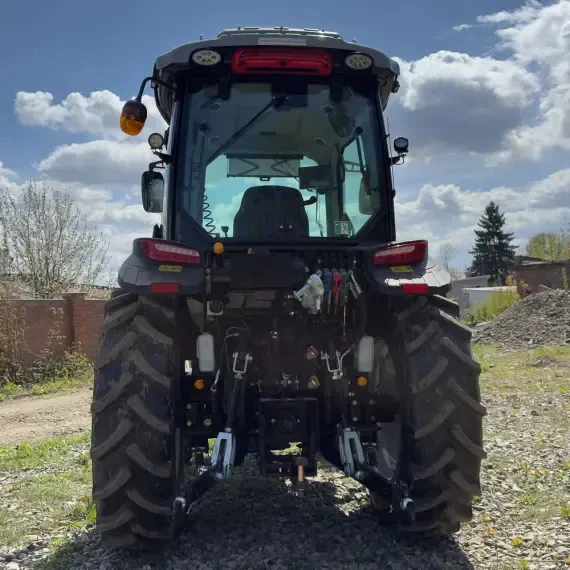

Hydraulics and hitch: The maximum load capacity of the rear three-point hitch is 3000 kg. The model is equipped with a separate hydraulic lift with two external hydraulic cylinders and has 6 hydraulic outlets (3 pairs of quick pressure/drain couplings), which allows you to connect modern multi-circuit attachments.

Power take-off shaft (PTO): Rear longitudinal with 8 splines, operates in 540/1000 rpm modes.

engine power, hp (kW) 90 (66.2)
Wheel formula 4x4
Engine type diesel, 4-stroke, YTO Y4105ZT
Number and arrangement of cylinders 4, vertical
Engine starting system electric starter
The cooling system is liquid, closed, with forced circulation of the cooling liquid
Engine volume, cm3 4200(//tractor-service.com)
Nominal engine fuel consumption, g/kW*h ≤323
Gearbox (KP) (4x3)+(4x3)
Rear differential lock +
2-disc dry clutch
The main transmission is live
Hydraulic control control
brakes on the secondary shaft of the gearbox, brake drums
Power take-off shaft (PTO) rear, splined
Typehydraulic pump system gear pump (NS) for the suspension drive / NS for power steering operation
The drive of the hydraulic lift is two external hydraulic cylinders, a separate gear hydraulic pump
The load capacity of the attachment is 3000 kg.

Revolutions of the power take-off shaft (PTO), rpm 540/1000
Sizetires front 300/70 R20, rear 380/85 R30
Front wheel track 1330-1490, rear 1300-1820
Clearance, mm 400
Number of hydraulic outlets 6
Trailer connector (socket) +
Dimensions LxWxH mm 4150x1880x2700
Curb mass, kg 4012
