Wheel tractor Hanwo 904 for 90 forces Blue, Dnipropetrovsk region.

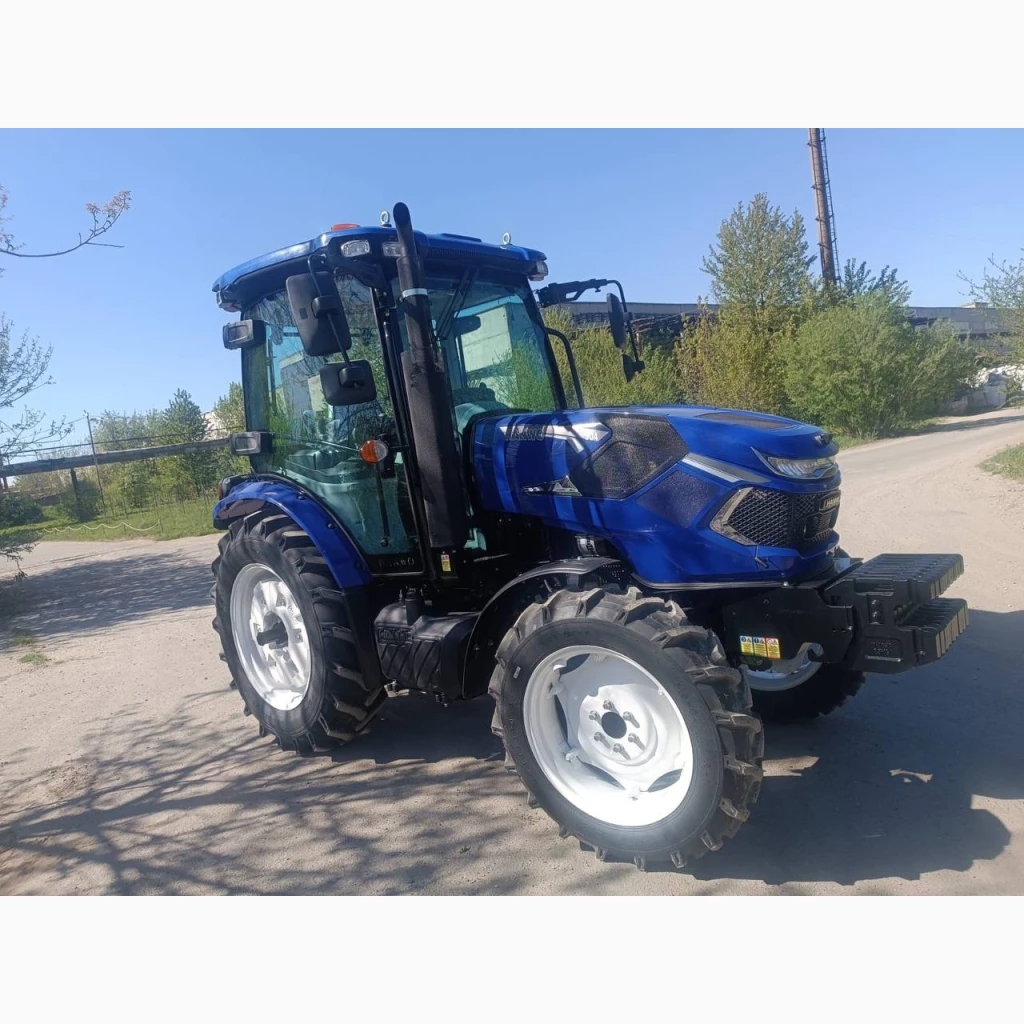

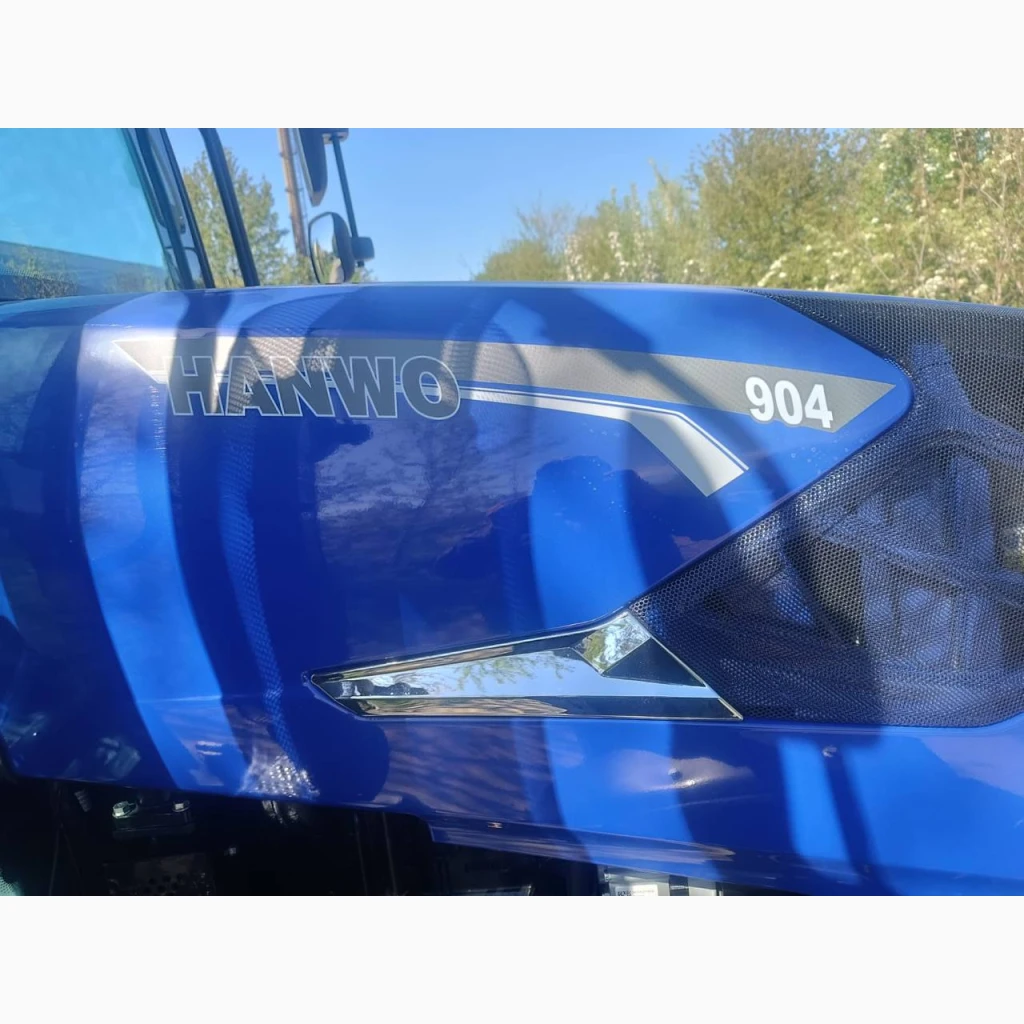

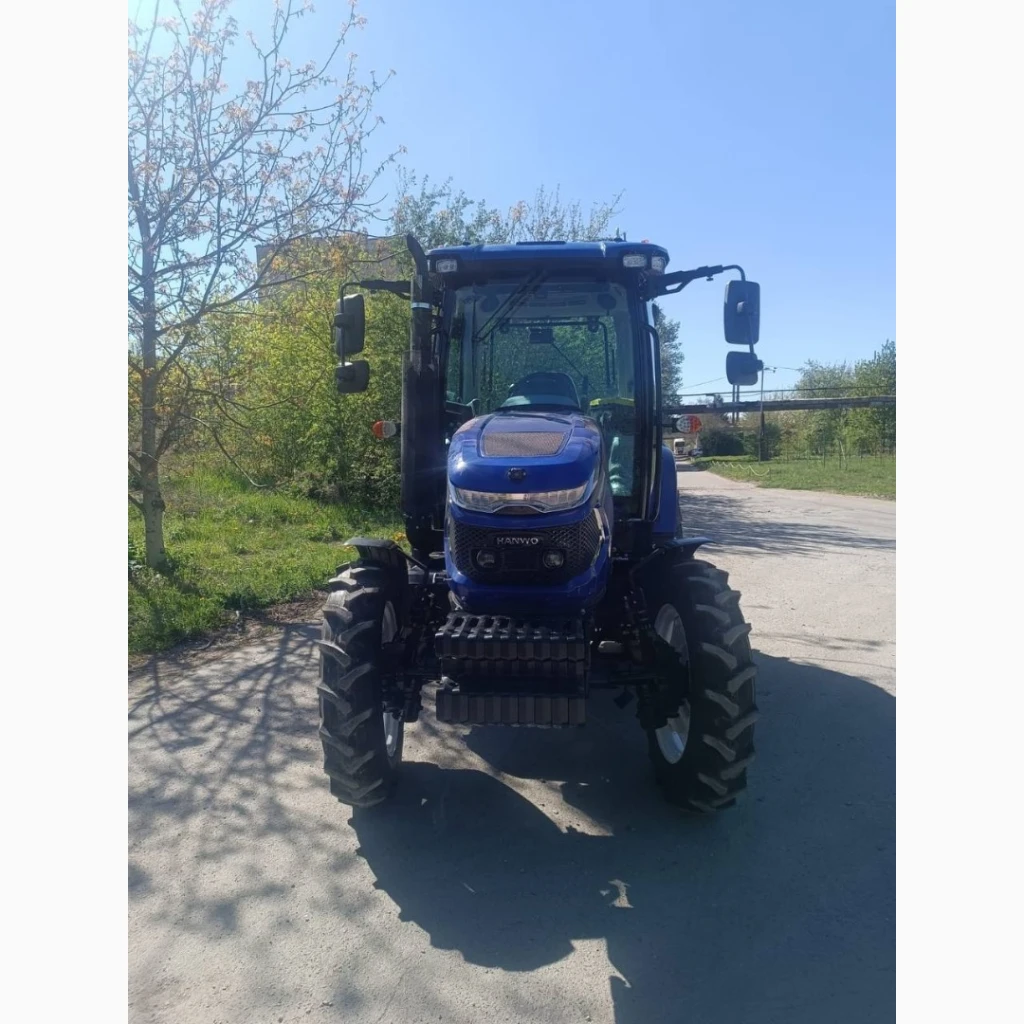

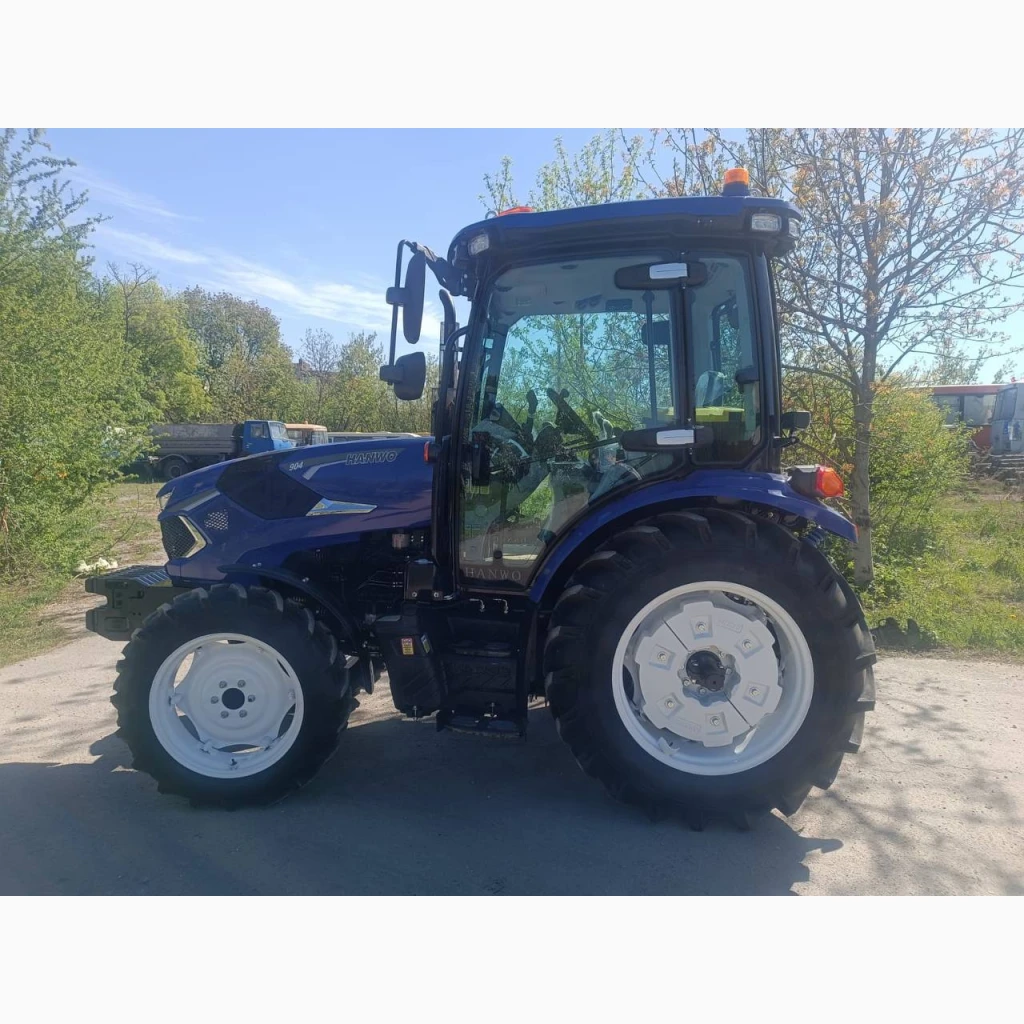

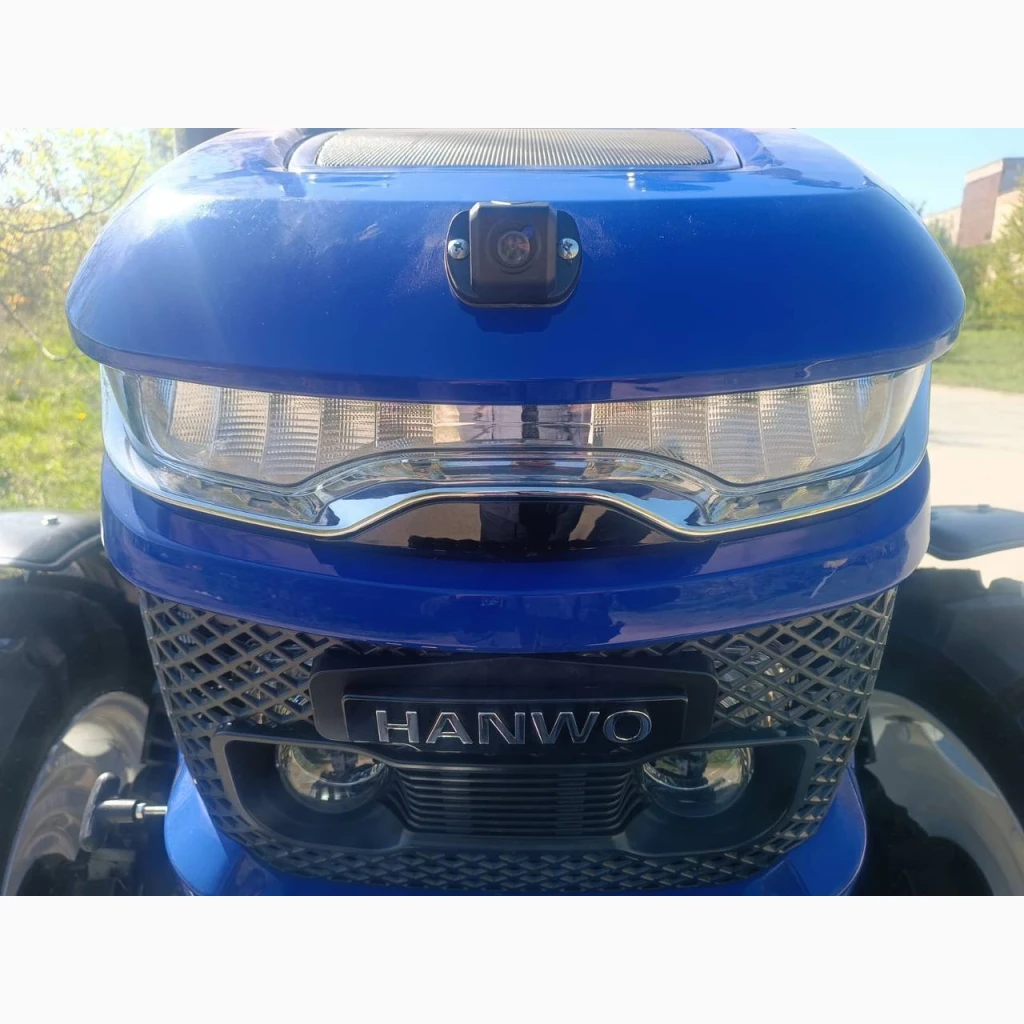

Tractor Hanwo 904
Volume - 3470 cm turbo - 90 hp. 4C6-100M22 Quanchai engine (now they started to be installed on Lovol) Separate oil pans on hydraulics and box
Tank - 80+60

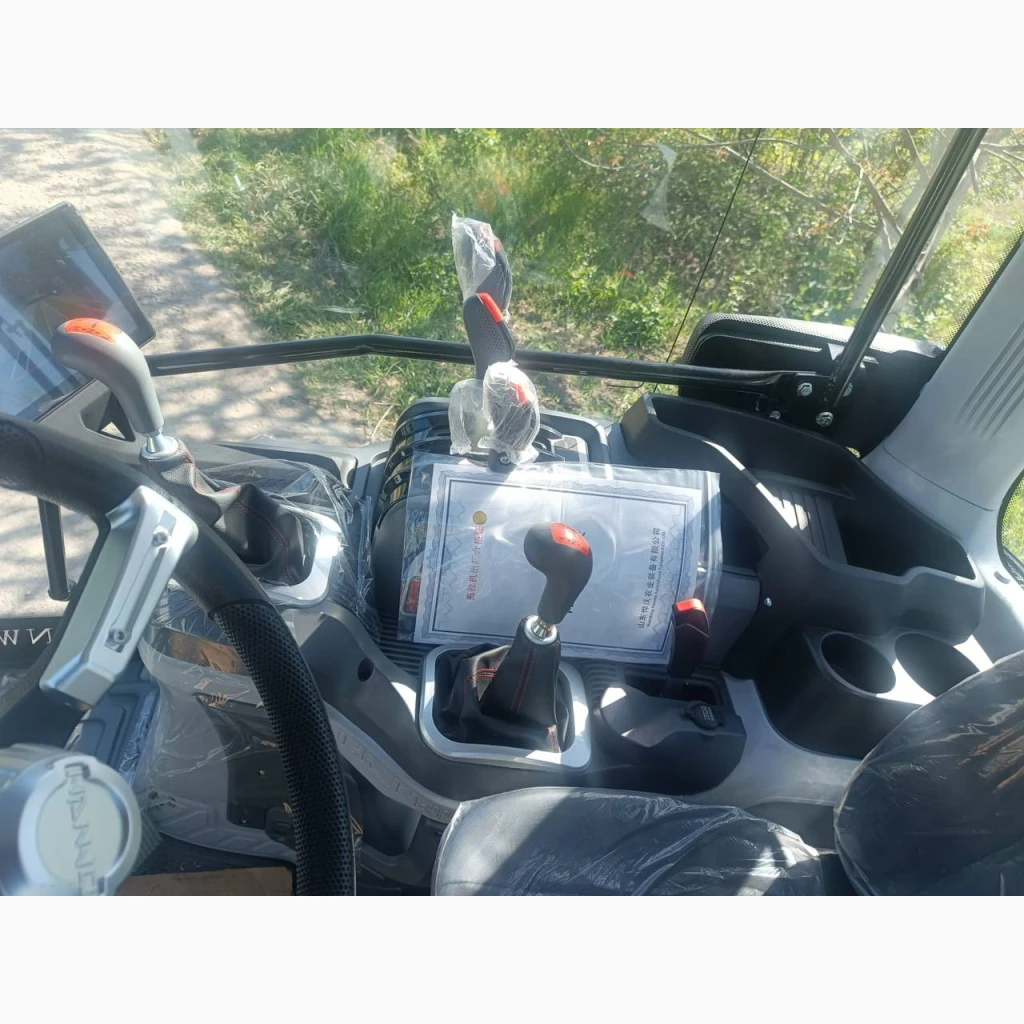

The gear shifting formula is (4+3)-(4+3)
Lowered - 3 gears + neutral
Reverse - there is
Clutch - Single-function, double-disc, permanently closed type

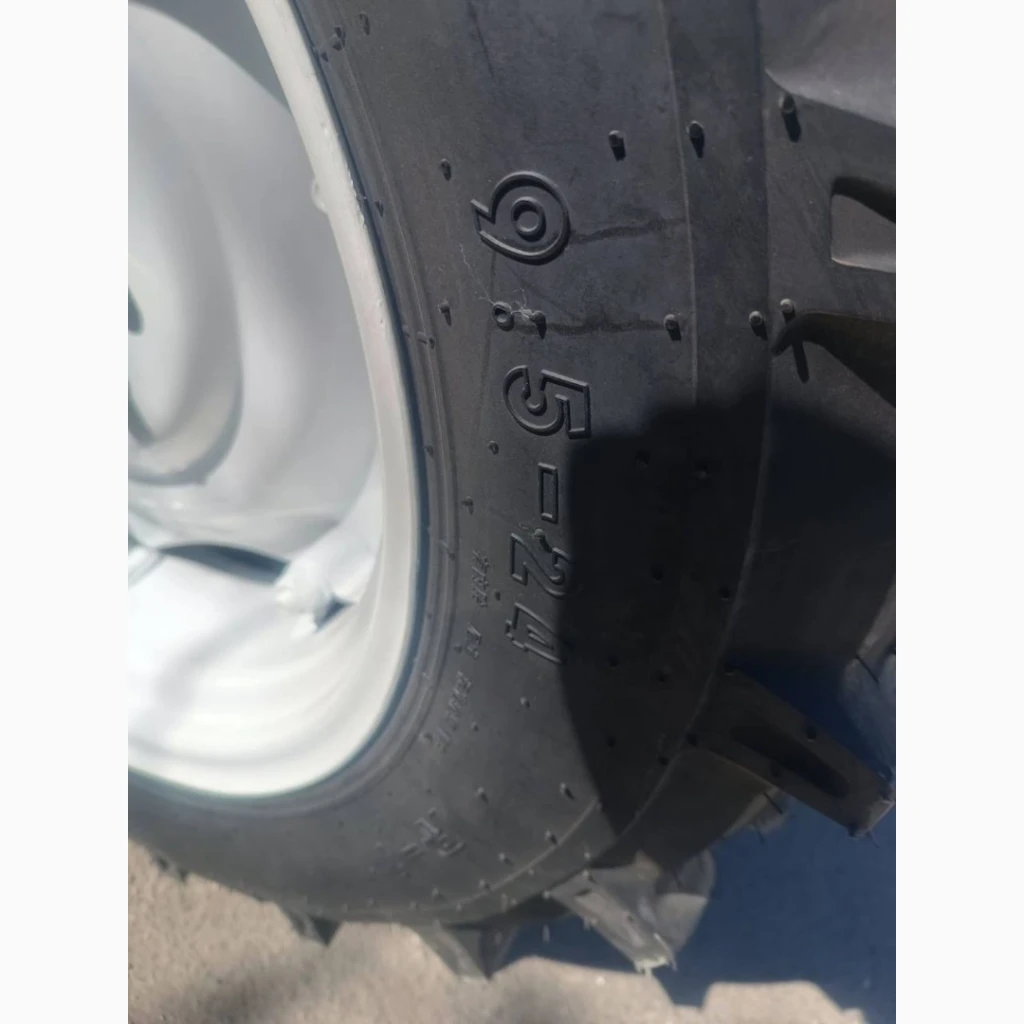

The size of the fronttires - 9.5-24

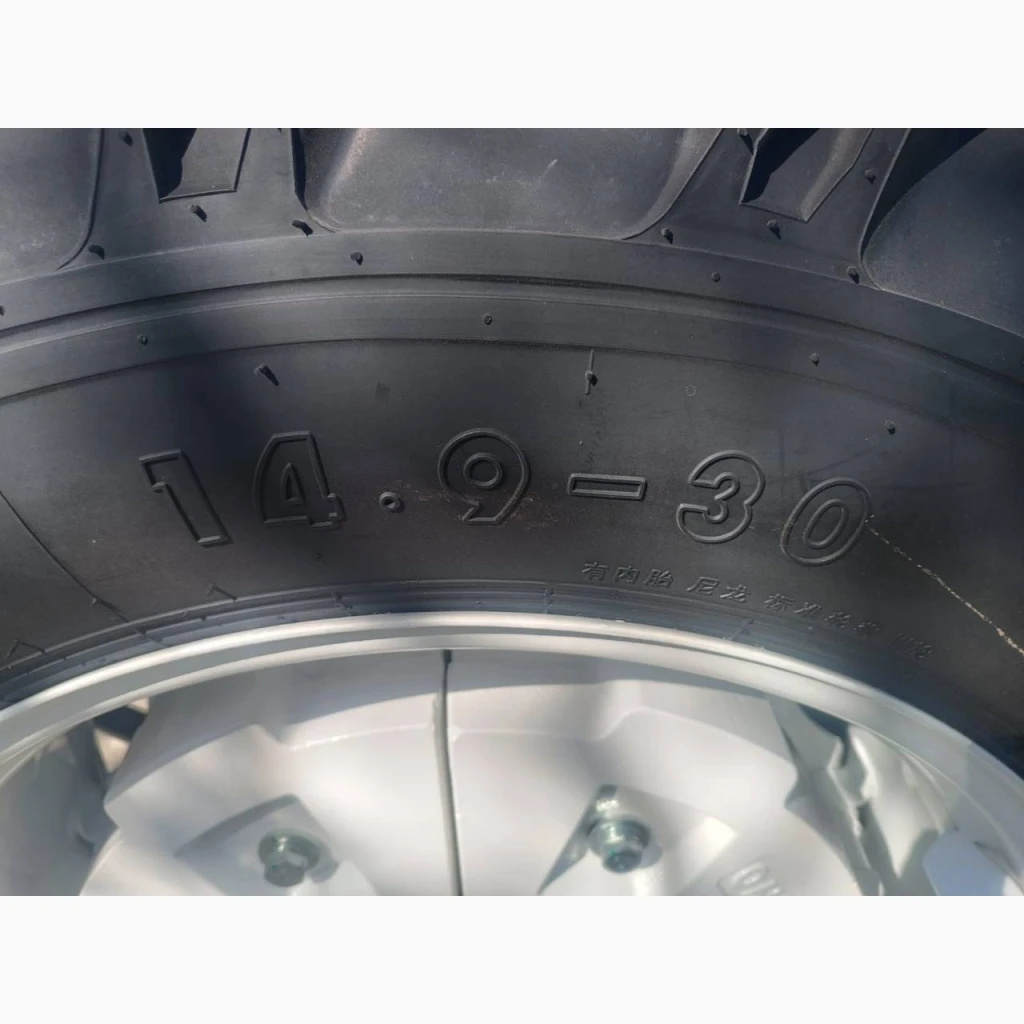

The size of the rear tires - 14.9-30(//tractor-service.com)
Wheelbase, mm – 2120
Nominal traction force, kN – 25.2
Overall dimensions (LxWxH), mm - 4230x1770x2785
Operating weight, kg – 3,660

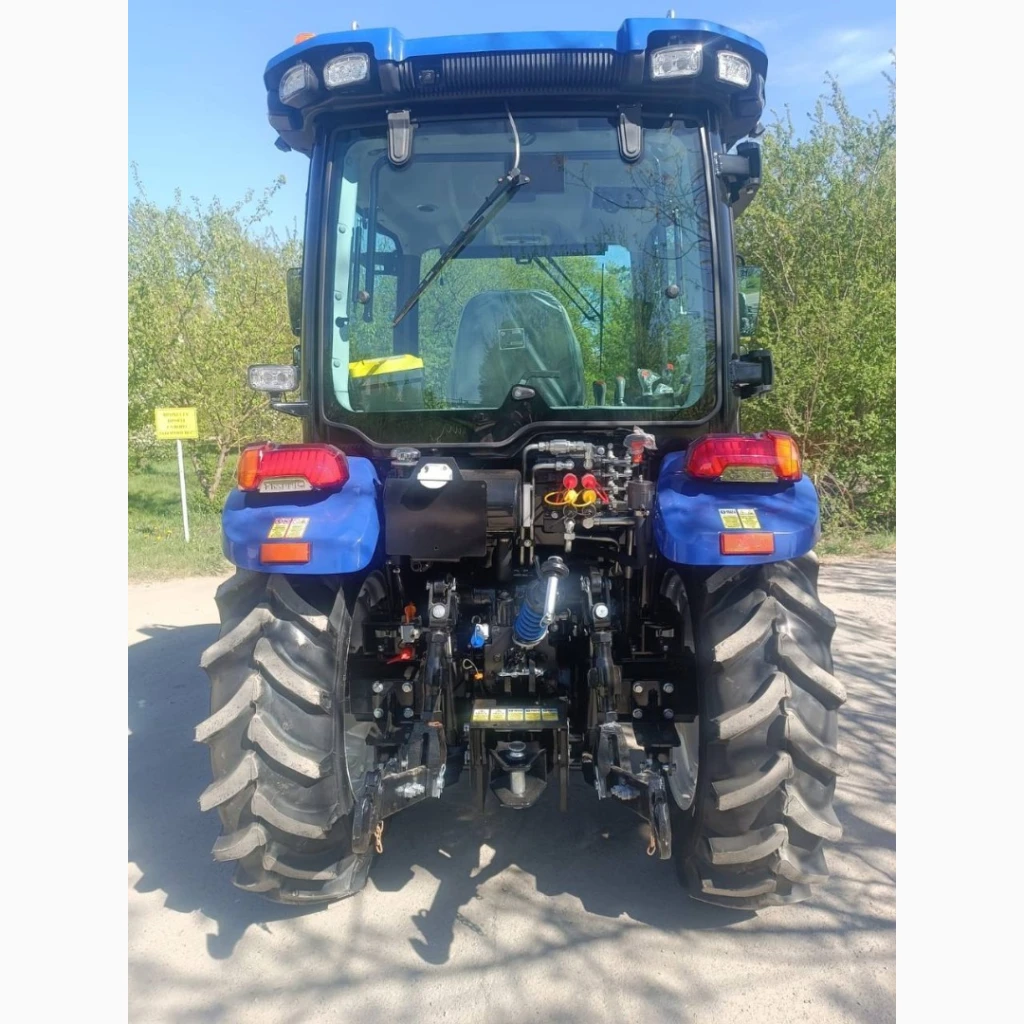

Rear attachment system - Universal, 3-point, 2 hydraulic cylinders
The maximum load of the hinged mech-mu, kg – 1610
The volume of the oil tank of the hydraulic system, l - 24

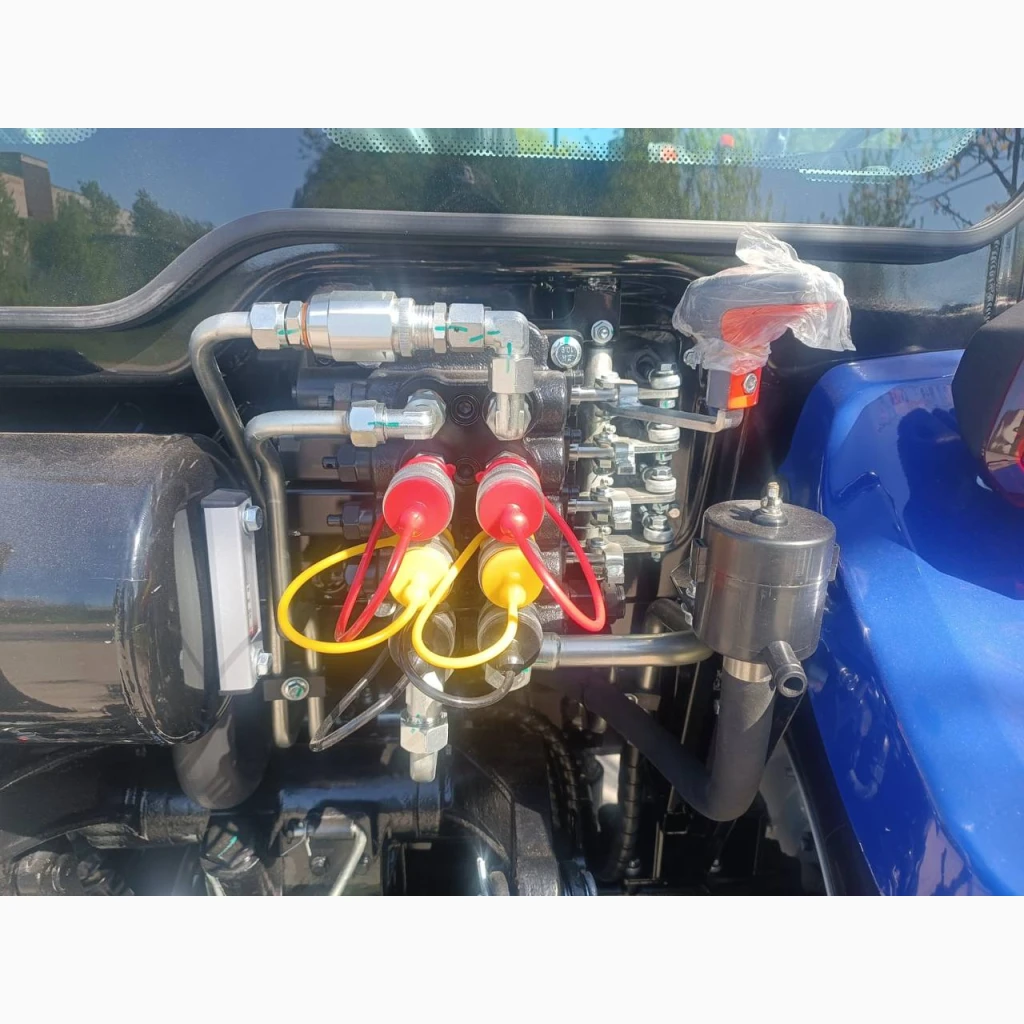

Hydraulic outlets for connecting attachments - 4 (2 pressure/drain, 2 drain) with quick-release couplings, control from the main hydraulic distributor

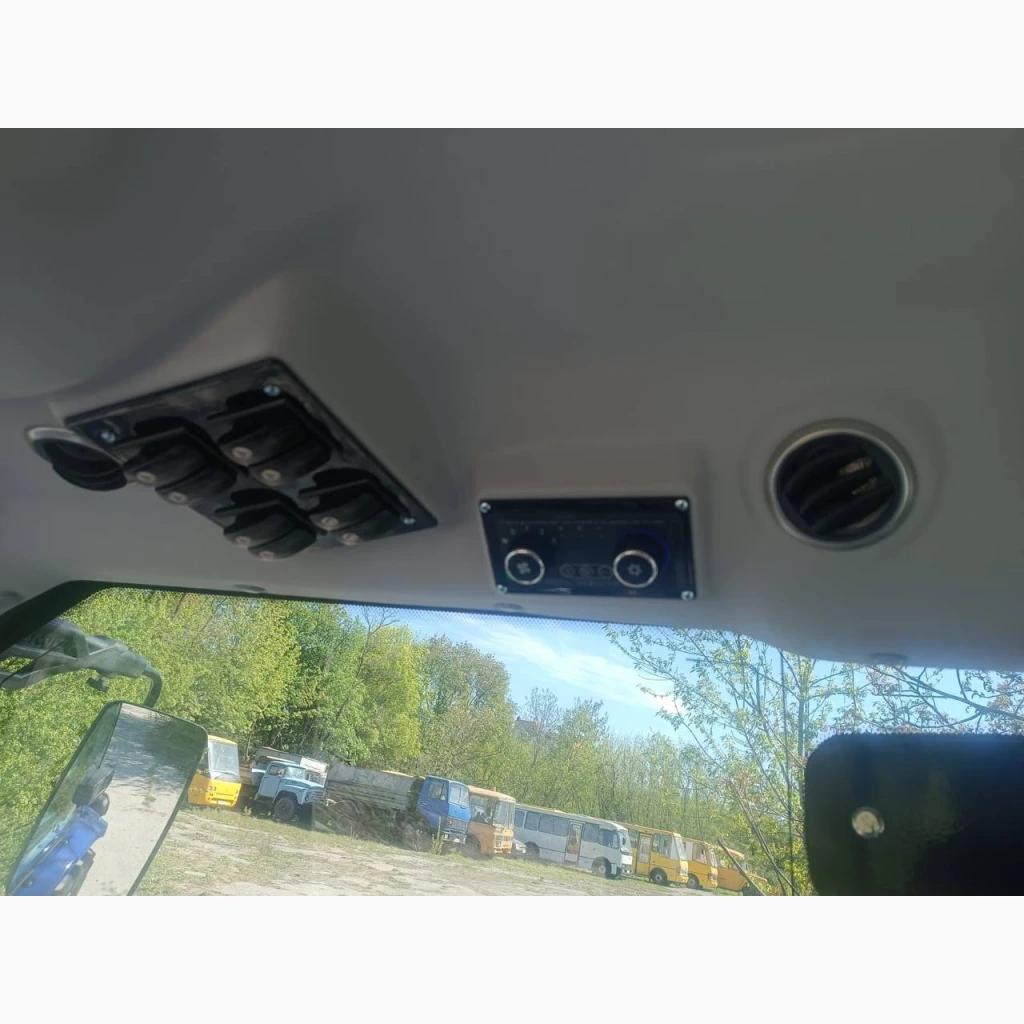

Air conditioner, heating, compressor
