For sale Diesel generator Outdoor Power SW-11500 (10 kW), NEW!!!
Bargain possible. Call.
*****************************************************

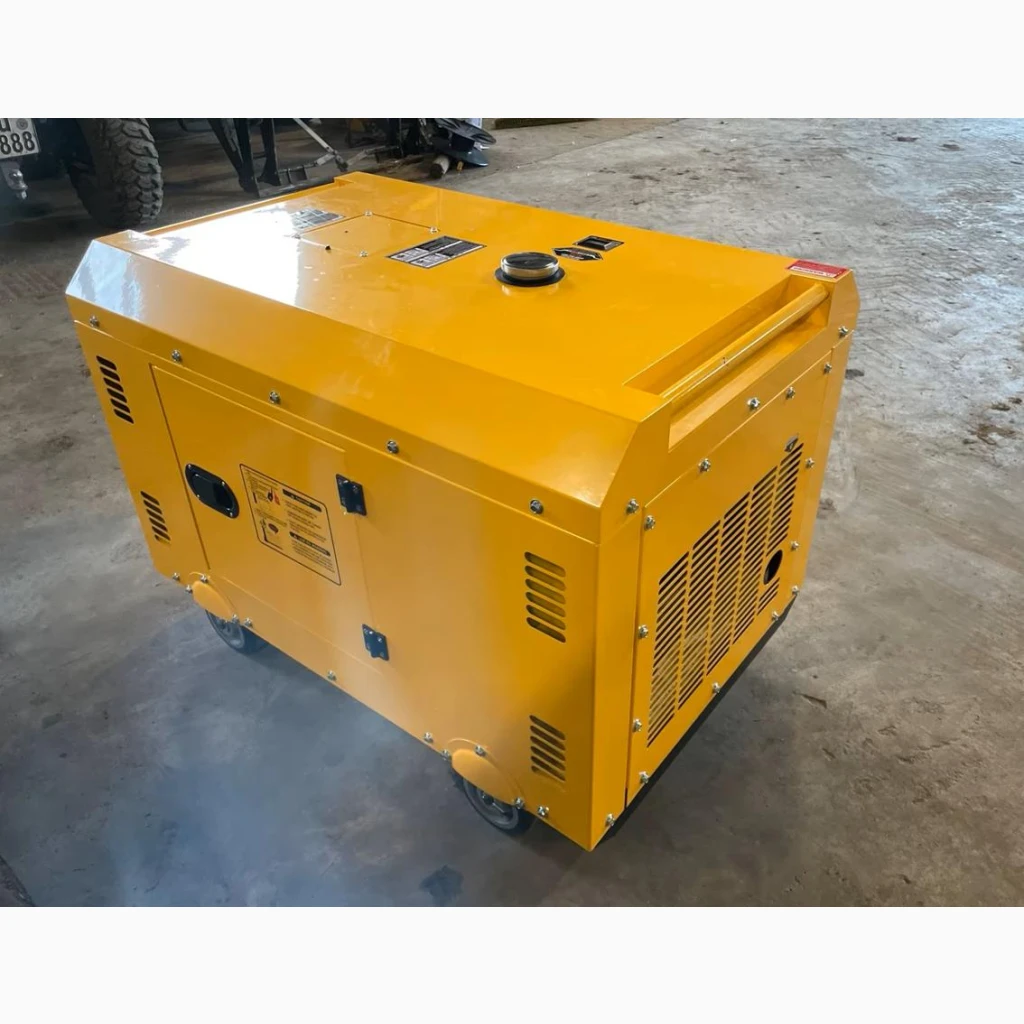

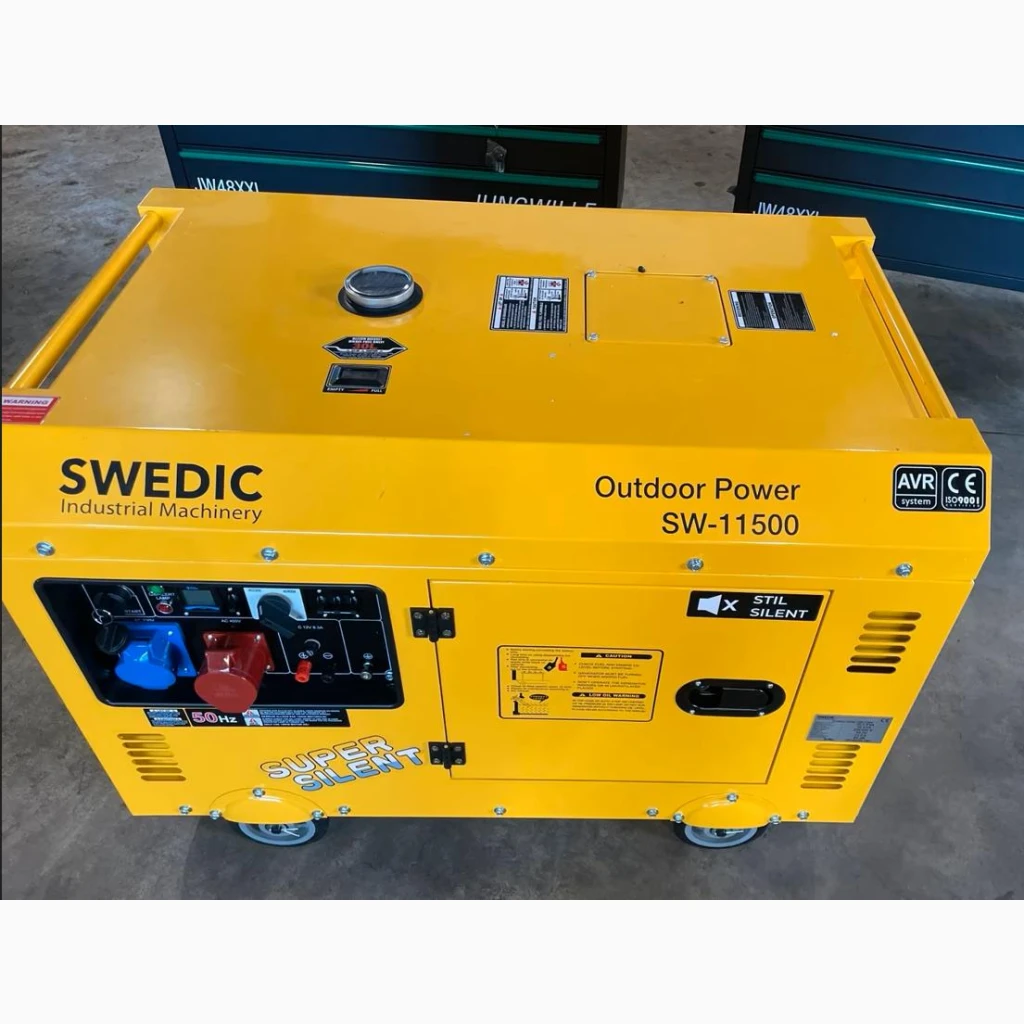

Outdoor Power SW-11500 is a diesel generator with a closed (silent / easy open) case, designed for long-term autonomous power supply of equipment. The design of the unit ensures a relatively low noise level, automatic protection of the engine at a low level
oil and electric start. The generator is equipped with standard 230 V and 400 V sockets for connecting various types of loads.
Main purpose:
power supply during outdoor events;
backup power supply of construction objects;
temporary supply of electricity to equipment that needs up to ~10 kVA.
Protection of the engine from damage is implemented through automatic shutdown at low oil level with an indication on the panel.

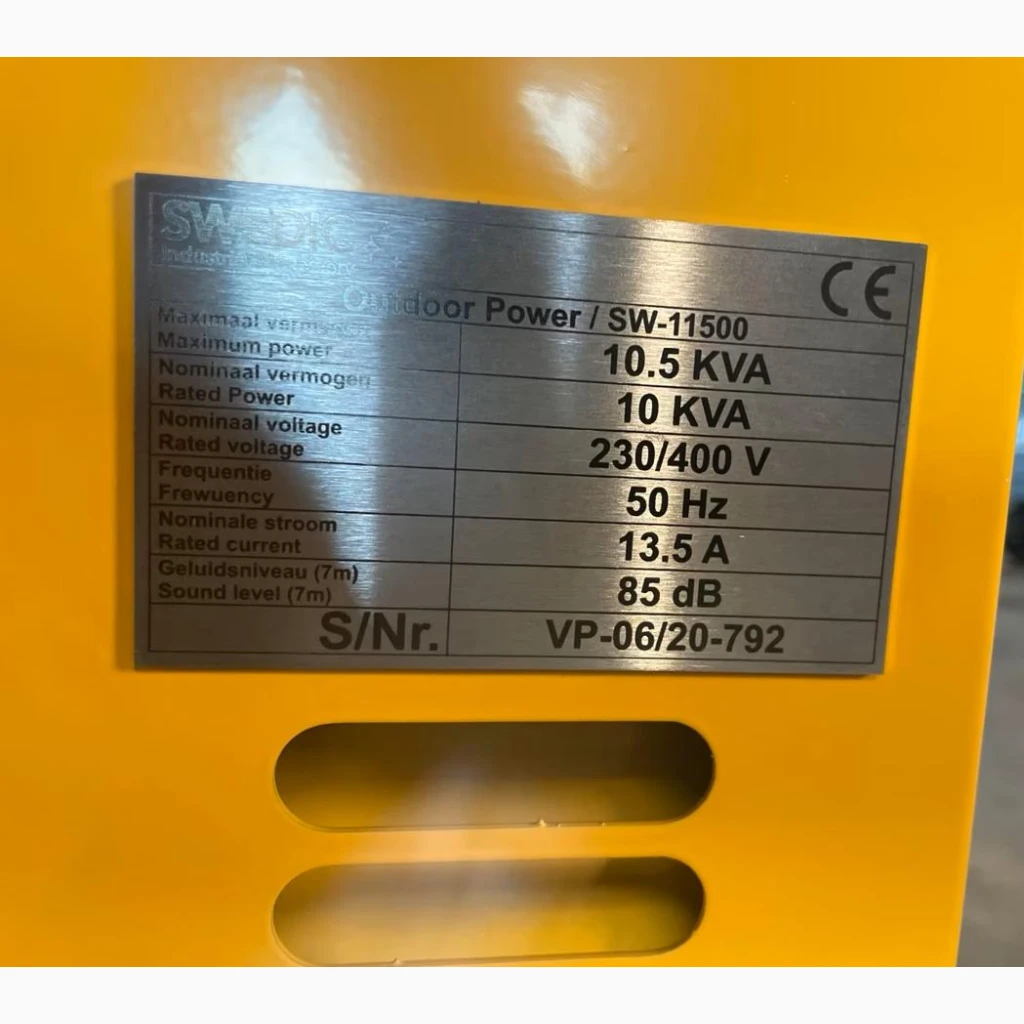

Technical characteristics:
Electrical part
Frequency: 50 Hz
Rated AC voltage: 230V / 400V
Nominal power (400 V): 10 kVA
(//tractor-service.com)
Maximum power (400 V): 10.5 kVA
Rated power (230 V): 8 kVA
Maximum power (230 V): 8.5 kVA
DC output: 12V / 8.3A
Nominal current (400 V): 16 A
Nominal current (230 V): 32 A
Engine and consumption
Fuel type:
diesel
Rotational frequency: 3000 rpm
Fuel tank volume: 30 l
Fuel consumption at maximum load: ≈3.44 l/h
Engine protection system: automatic shutdown at low oil level with indication.
Additional parameters
Noise level at a distance of 1 m: 87 dB
Quality standard: ISO 9001
Complete set of sockets: 16A 400V 5-pin + 32A 230V 3-pin

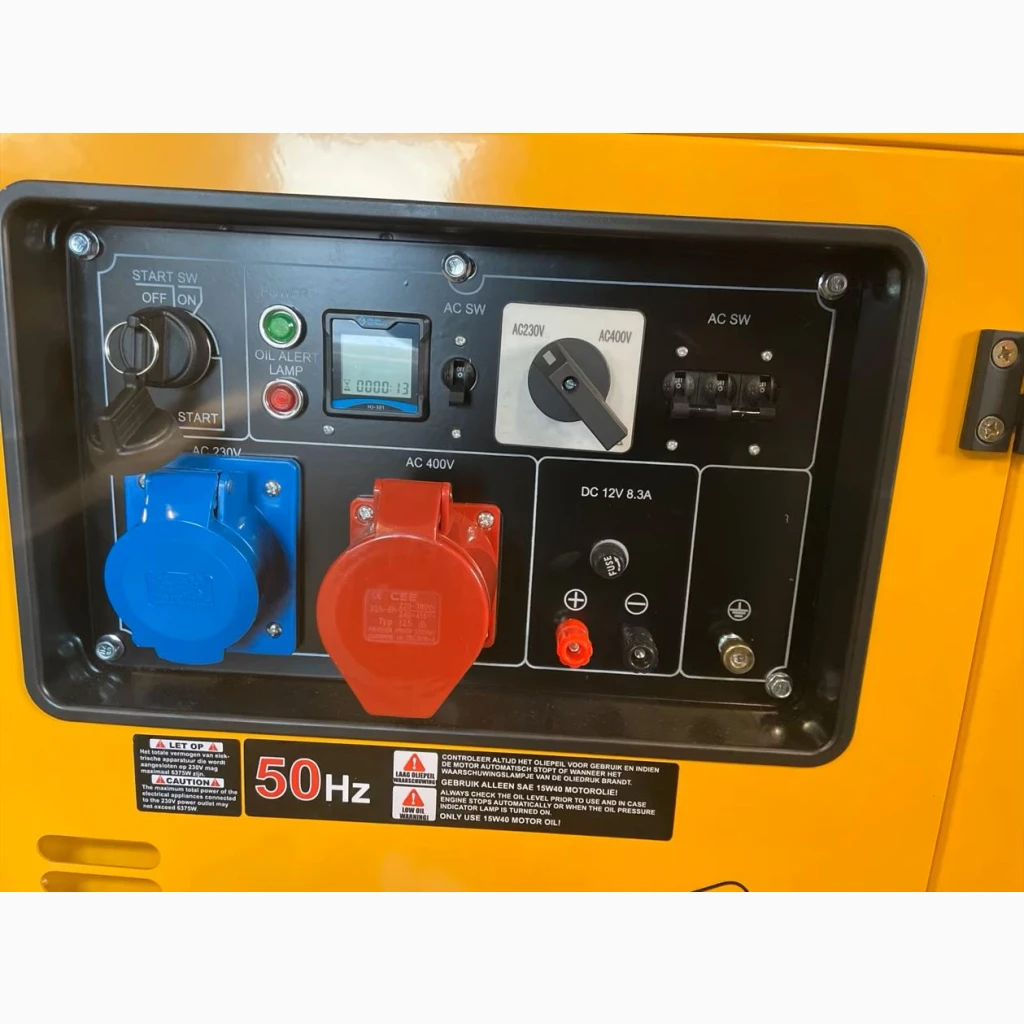

Standard functions: voltmeter, hertz meter, oil warning lamp, electric starter.
