Cultivator of continuous tillage FIELLDAY 4m mounted one section, Khmelnytskyi region.

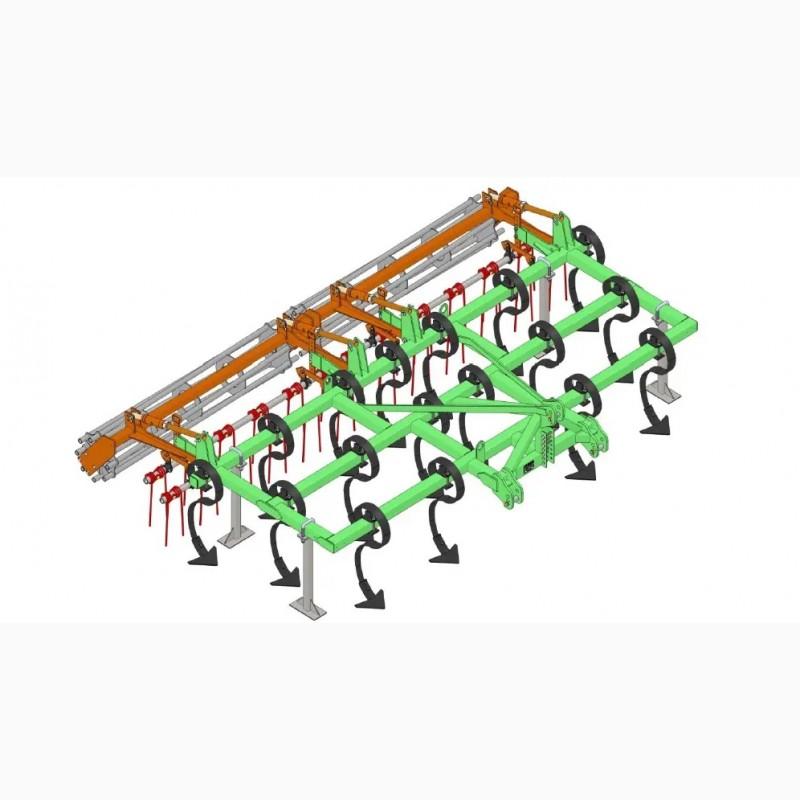

Cultivator of continuous tillage FIELLDAY
The FIELLDAY cultivator is universal and is used for pre-sowing cultivation, placing plant residues in the soil and continuous processing of steam. This cultivator provides complete soil preparation for sowing in just one pass through the field!

This cultivator is equipped with Bellota racks (Spain) with the possibility of adjusting the angle of attack and safety springs with adjustable rigidity. This type of racks is recommended for use on heavy, wet soil. Thanks to the protective spring mechanism, the racks are easily adapted to different types of soil and do not break under critical loads! The working bodies on this model are arranged evenly in a staggered order in three rows with a distance between the racks of 705 mm. This arrangement of the racks provides an impeccable effect of loosening and mixing the soil, while preventing it from getting clogged with weeds and plant residues!

The cultivator of continuous tillage FIELLDAY performs the following operations:
Cleaning steam from weeds with trimming and combing their roots,
Loosening of the soil without circulation of the layer and laying of plant residues ,
Crushing lumps of earth and leveling the soil with a rake with spring teeth.
Compaction and formation of the ideal structure of the surface layer of the soil by rolling rollers to prevent moisture evaporation.
Range of application:
Pre-sowing cultivation and seedbed preparation
Complete processing and cleaning of vapors from weeds.
Alignment of plowing
Distinctive features of the model
Uniform staggered arrangement of working bodies with a distance of 705 mm, which prevents clogging with weeds and plant residues!
Independent stepless adjustment of the cultivator processing depth on each wheel.
Mechanically independent wheel lifting system due to hydraulic drive
Direct drive of hydraulic cylinders
Lubricated fingers of power drives
Quick-release drawbar with finger attachment with cotter pin.
Detachable drawbar bracket with lanyard for adjusting the height of the drawbar.
Technical characteristics
Aggregation method: Trailed
Gripping width: 4 m
Number of rows: 3
Processing depth: 4-15 cm.
Working bodies:

— Rack type: Active rigid Bellota (Spain) with a safety spring and adjustment of the angle of attack of the paws
— A bushing with a bushing for lubricating the replaceable bushings of the working body.
— Quantity: 17 pcs.(//tractor-service.com)
– Placement step: uniform in a staggered order of 235 mm
– Distance between racks in a row: 705 mm
– Paw width: 270 mm
– Material of legs and racks: Forged hardened boron steel with polymer super-resistant coating.

Frame with a wall thickness of 5 mm.

Complete set:

— Grabs with spring hard teeth 8x320 mm made of hardened steel grade 70
— Rolling rollers with a diameter of 300 mm, a knife thickness of 6 mm and bearings in a cast-iron housing UCF 208 (Japan)

Transportwheels:

—Universal tires 5.50 R16 with special cutting for soil
— Strong cast KPS hubs

Talrep

Lubrication of power drive fingers

Fingers made of steel 45 with cotter pin

All elements of the cultivator undergo mandatory processing, namely: cleaning, grinding and sandblasting! Before painting, primer and drying with a heat gun is carried out! At the end, all parts are covered with a polyurethane coating and dried in a drying chamber!

Functional properties
Adjustment of the angle of attack and tension force of the safety springs of the struts.
Adjustment of the angle of attack and depth of rake processing.
Adjusting the height of the drawbar with a lanyard
Independent stepless wheel height adjustment.
Adjusting the height of rolling rollers.
Regulates the depth of cultivator processing due to the height of the skates and the height of the wheels.
The system of raising and lowering the wheels due to the hydraulic drive.
