Equipment for concrete manhole bases, CAPITAN, Kyiv

Equipment for concrete bases of manholes and channels, CAPITAN.

BFS is a technology leader for your success.

CAPITAN – BFS solution for economic production of monolithic foundations for wells.

The base of the well and niches are determined on the computer.
The nominal diameter, the number of inlet holes, the type of lining of the well, the diameter of the inlet and outlet holes, as well as the angles and slopes of the channels are precisely determined. Wall thickness and well height are calculated by the BFS product configurator. A visual model is created with one click of the mouse and the data table is automatically populated with the relevant data, which is then transmitted to the milling center.

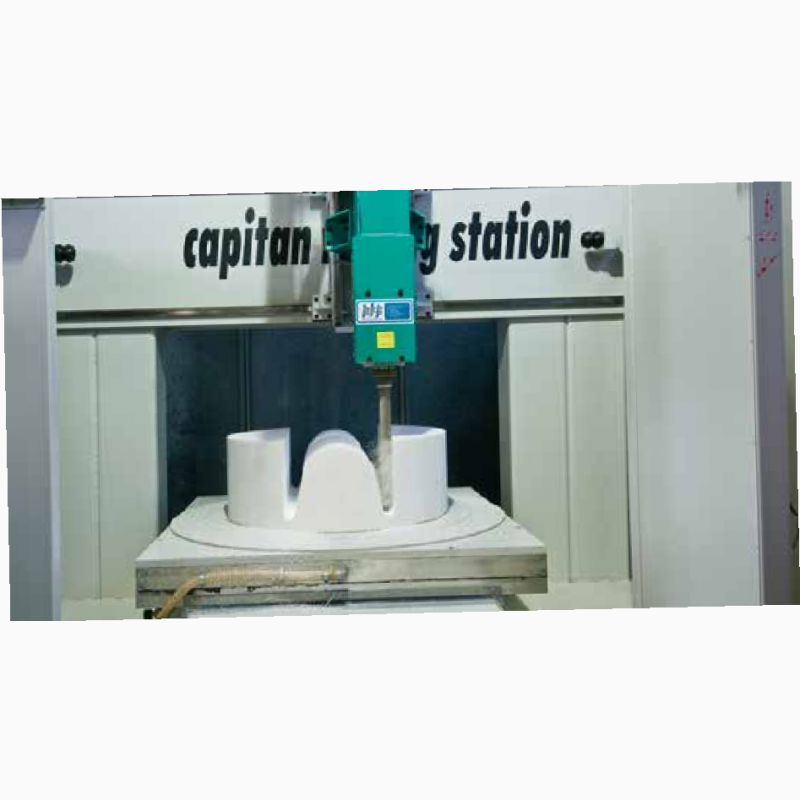

The heart of the CAPITAN production line is a state-of-the-art milling center designed specifically to meet these requirements.

Milled niches are assembled in just a few work operations. You can make up to 30 precisely machined channels from rigid expanded polystyrene per shift.

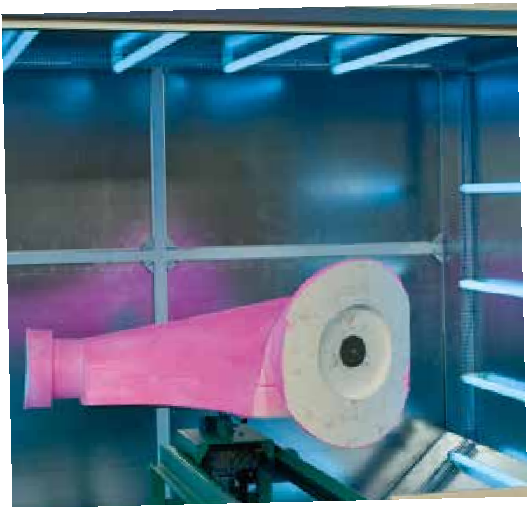

After applying the distribution compound BFS-Casacap, the polystyrene channel hardens under the influence of UV radiation and is ready to be installed in the form.

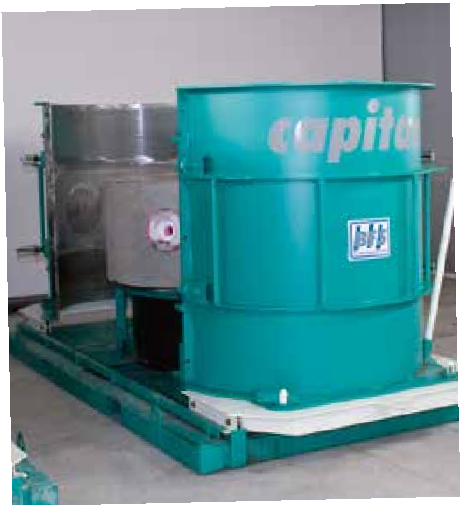

The channel is precisely positioned and fixed on the core of the mold with the help of a magnetic fastener. The height of the product is adjusted individually, then the form is closed.

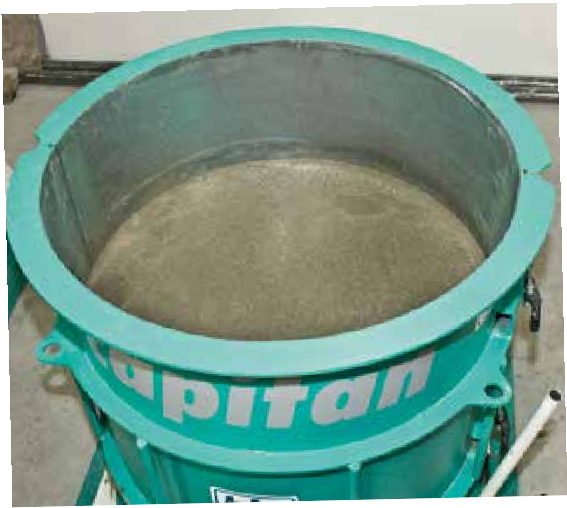

The form is ready to be filled with concrete.

Conventional liquid concrete or self-compacting concrete is poured through the BFS concrete feeder. Excellent product quality is achieved when using any type of concrete.

The bottom of the CAPITAN hatch hardens inside the mold.

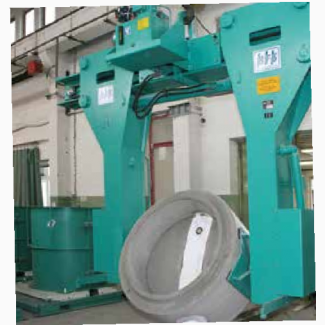

After opening the mold, the approved product is removed from the core of the mold with the CAPITAN reversible traverse.
The product is turned over and installed in the formwork position.
(//tractor-service.com)
After opening the mold, the hardened product is pulled out of the mold core with the CAPITAN reversible traverse.
The product is turned over and placed in the position for removal from the mold.

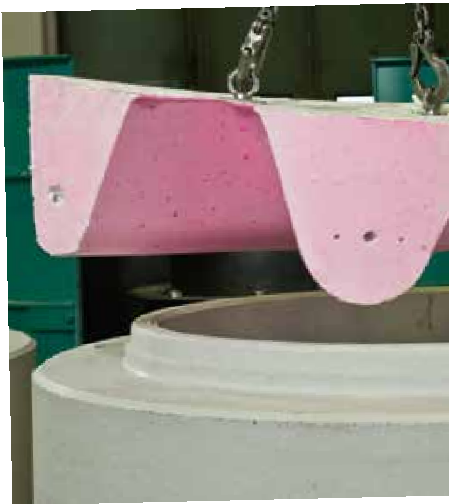

Rod forms and rods with recesses are suitable for multiple use: with careful circulation, up to four to five castings can be made with one set - this is an important factor for a positive calculation of the cost.

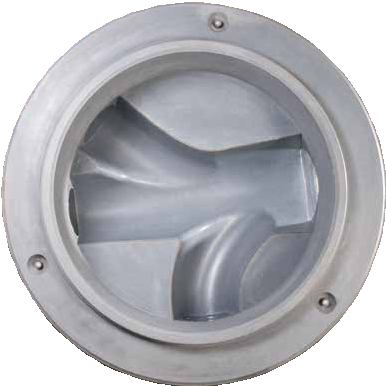

Monolithic foundations of wells with extremely smooth surfaces,

flexible channel diameters and slopes, as well as variable height of inlet and outlet openings.

CAPITAN housing system ensures wear resistance of production, minimizing production time.

A tool that provides effective management of sewage infrastructure.

Convincing advantages:

Nominal diameter: 800–1500 mm
Height difference: up to 400 mm.
Free choice of hatch lining inclination
Free choice of channel inclination angle
Free choice of channel height
Reducing the thickness of the wall due to the displacement of the cores of the grooves and much more.
Low cost of production of individual products due to the possibility of multiple use of the negatives of the recess cores
High process safety thanks to convenient system components
No need for finishing work
Low labor requirements
Fast and economical expansion of the system thanks to a large number of auxiliary modules.
