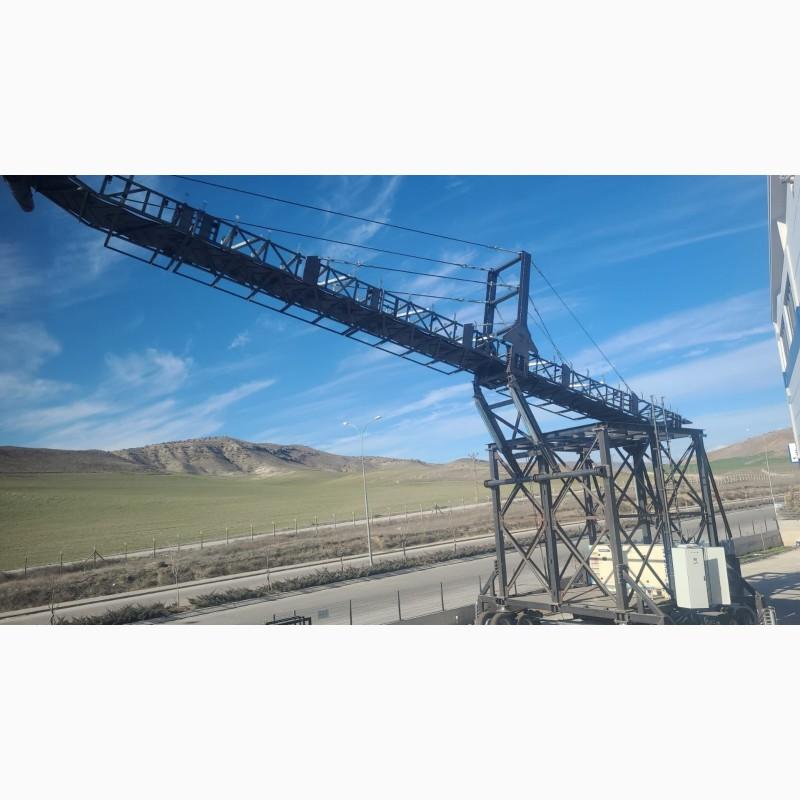

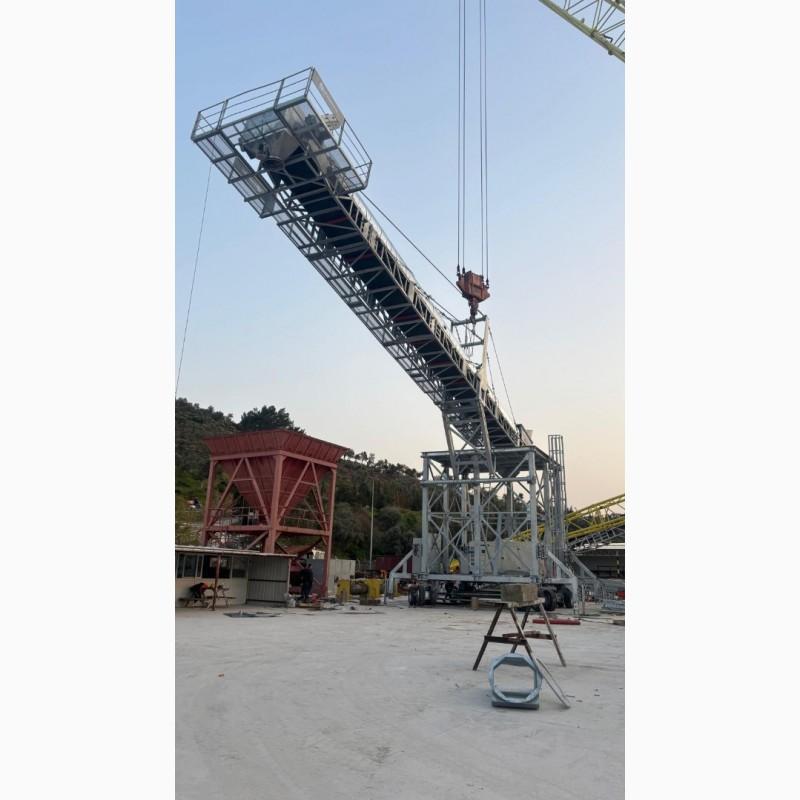

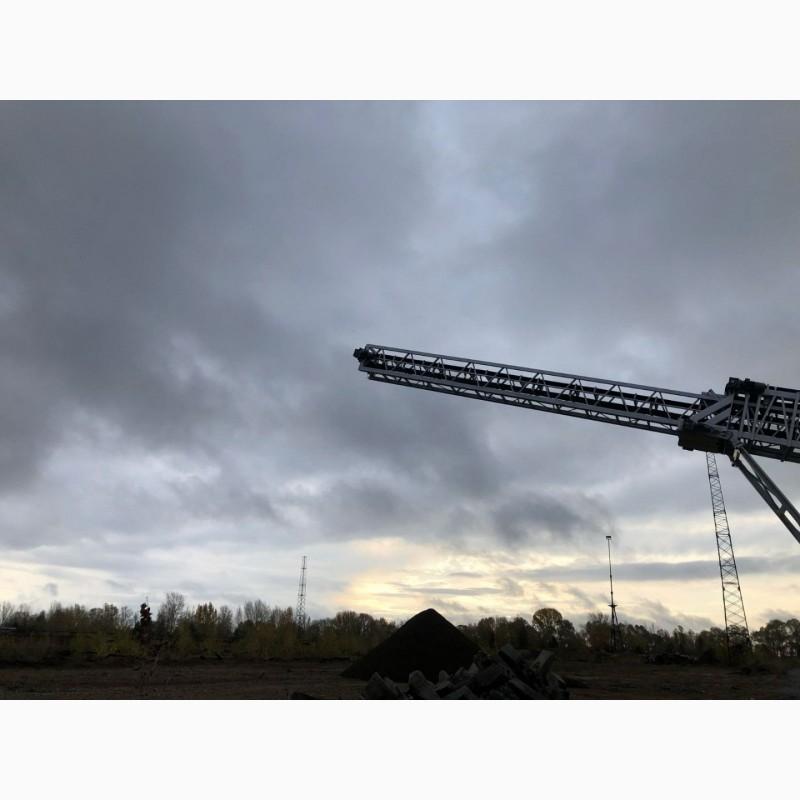

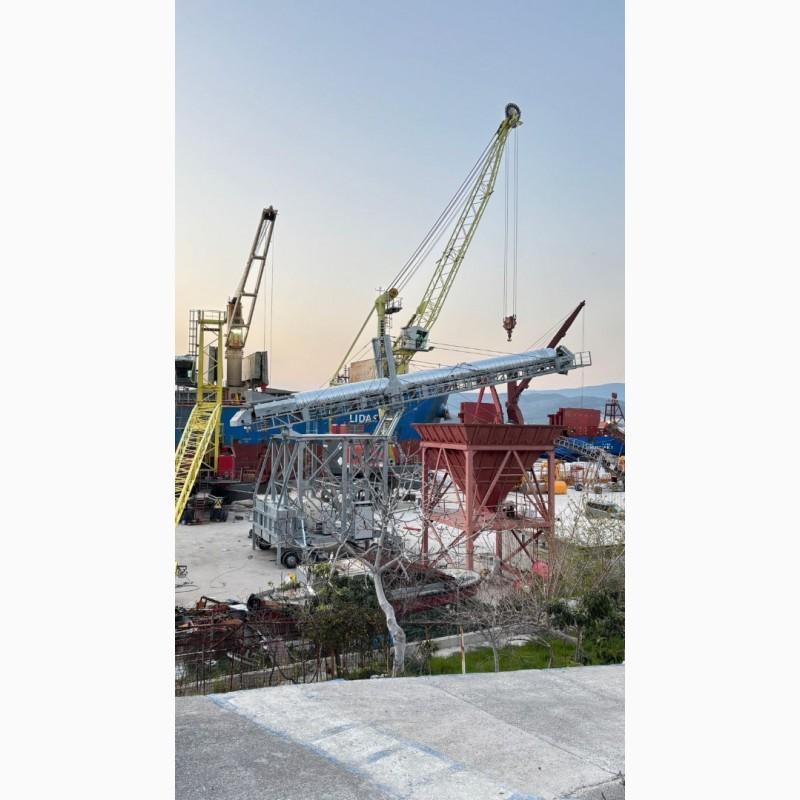

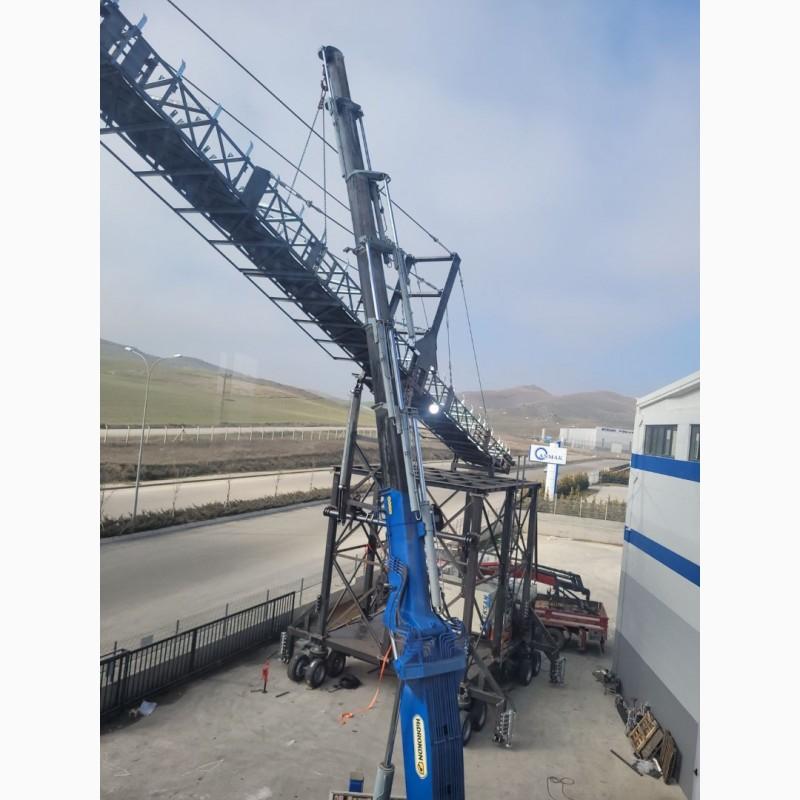

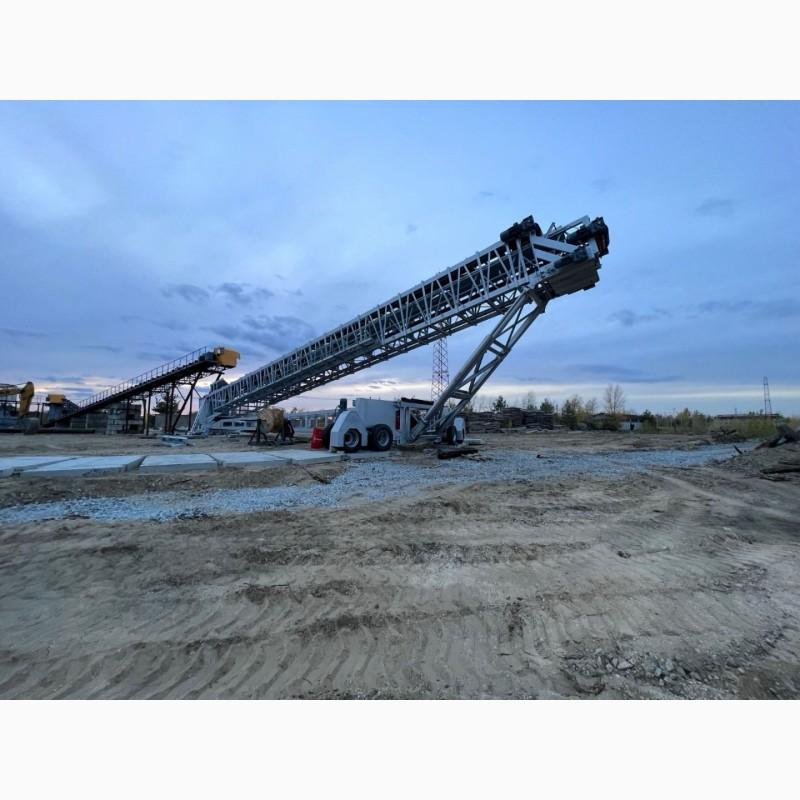

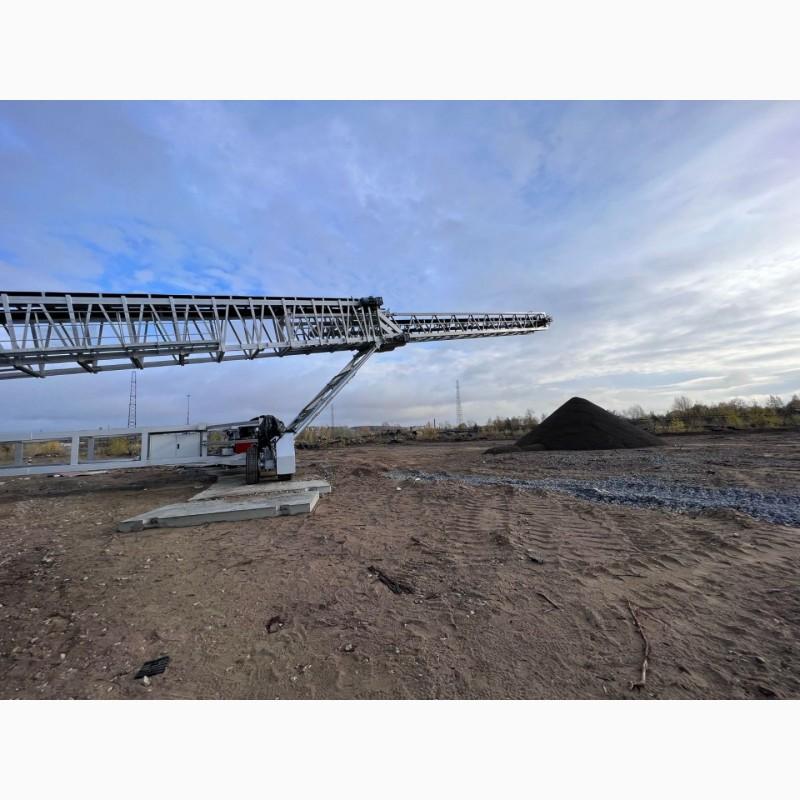

Radial conveyor Automatic Telescopic PTRC2000, 2000 t/h, PolygonMach Turkey, Kyiv

Automatic telescopic radial conveyor PTRC2000, 2000 t/h, PolygonMach Turkey.

Delivery set:

Radial telescopic conveyor PTRC 2000

Productivity 2000 t/h at a speed of 2 m/s

Chevron telescopic radial conveyor 1500x55000 mm

Chevron conveyor belt

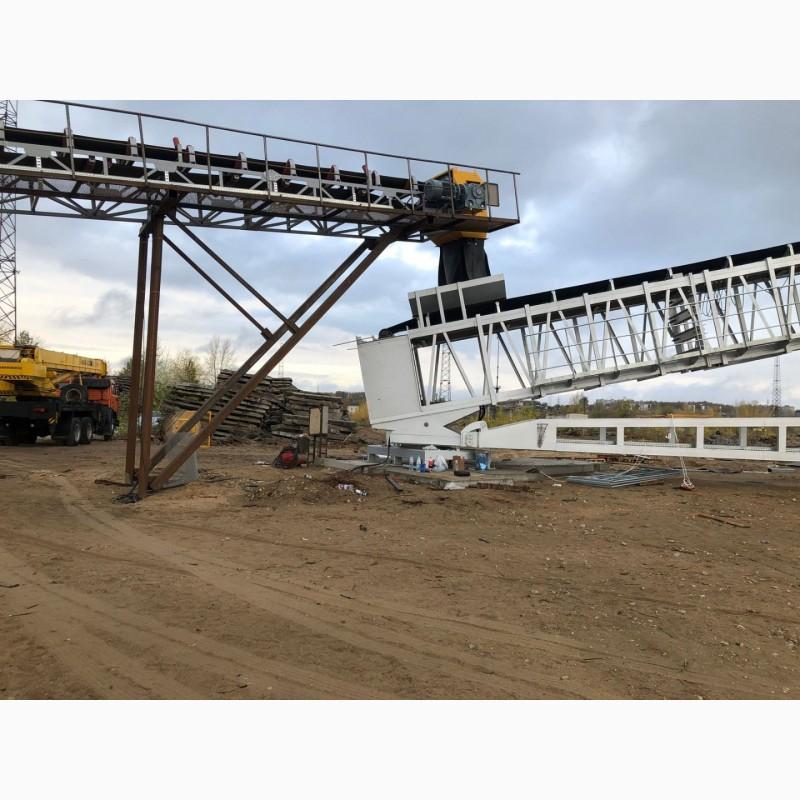

Loading hopper 3.5 m3

Protective coating of the conveyor belt for dust suppression.

Water dust suppression system in gutters

360 ° rotating chute.

Magnetic separator at the feed point

Remote control

Electrical and electronic panel (SIEMENS)

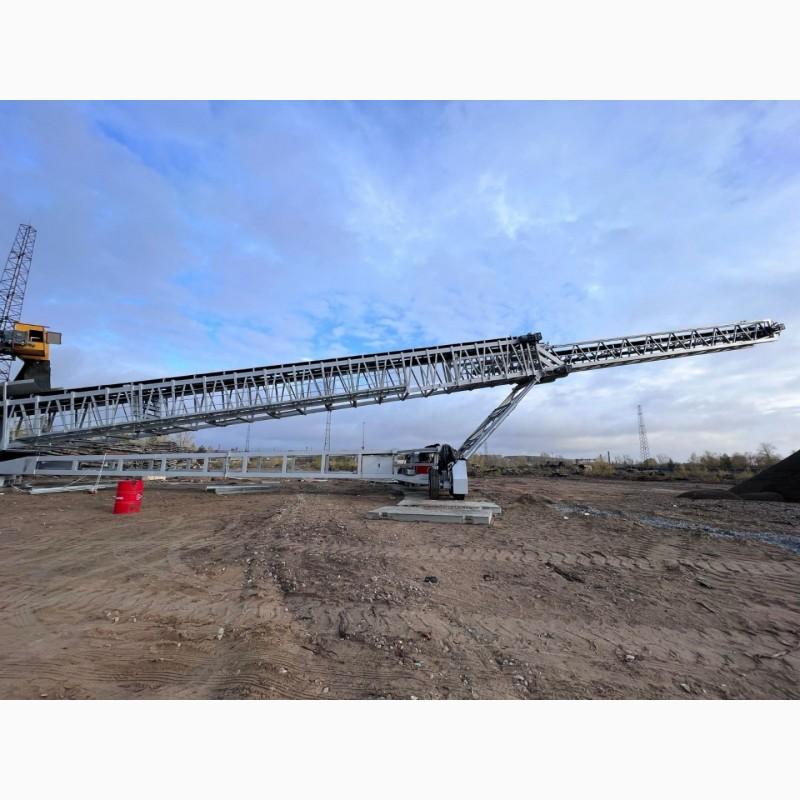

PolygonMach PTRC Series - Telescopic Radial Conveyor

Telescopic radial conveyors of the PolygonMach PTRC series are designed for high-performance material handling, providing efficient storage and controlled unloading. Universal conveyors can be adapted to the customer's requirements in terms of length, belt width and productivity.

Main characteristics and advantages:

Custom design – Available tape widths from 500 to 1500 mm and adjustable length according to specific project requirements.
Adjustable tape speed:
Slope - speed from 0.1 to 3.2 m/s, the hydraulic system adjusts the slope from 3° to 23° for flexible discharge of material.

High performance stack:
Accurate Unloading – Provides efficient stack management, reducing segregation at the point of unloading and increasing product quality.

Advanced material handling system – 360° rotating chute for accurate material placement, minimizing waste and increasing efficiency.
Dependable Performance - Durability - Industrial grade components, additional zinc plating and standard TS 542 tapes ensure durability in tough environments.
Optional Dust Suppression System – Water suppression systems and belt coverings are available to minimize dust emissions.
Automated safe operation system – Siemens electronic panel, control unit with IP68 degree of protection and remote control function for ease of use.
Enhanced Cleaning - Safety Features - Built-in belt scrapers, rotating brushes and parachute safety brake ensure smooth and safe operation.

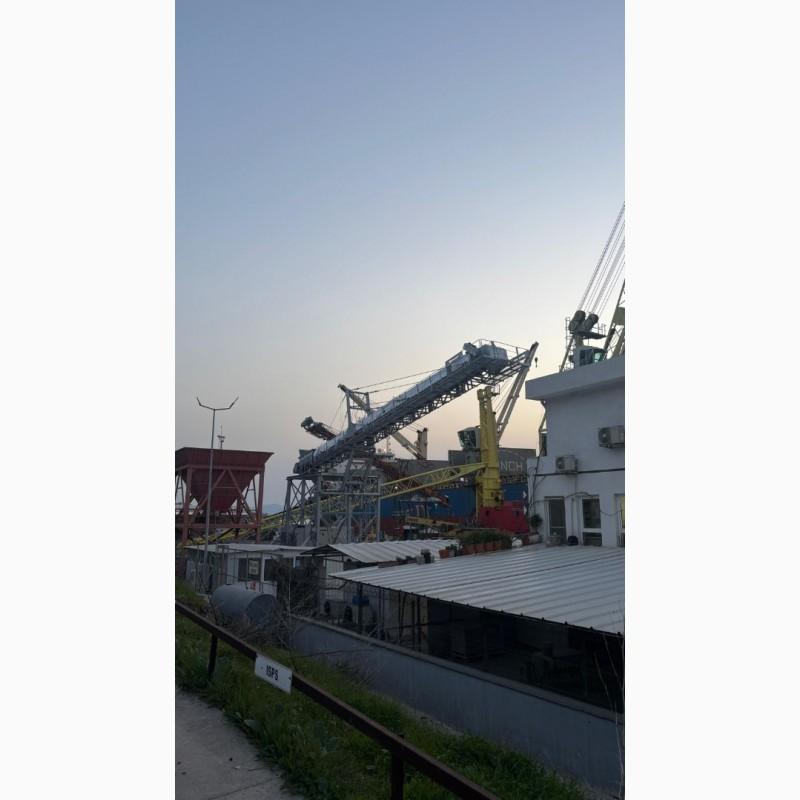

The PTRC series offers a flexible and efficient solution for transporting bulk materials with precision and reliability in quarries, ports and industrial plants.

Technical characteristics:

Direct drive drive system

Drive drum 500:12 mm with rubber coating.

Yılnaz KR series reducer - voltage 50 Hz - 380 V

Type of bed: cast iron, SNH series, with additional lubrication.

Platform: double-sided, with tape guides

Tape: TS 542 Norm, 4 layers, width 4/2.12 mm

Guide on a roll

12 blocks, 5 inch rollers. Cena series C at an angle of 35 degrees

Nominal productivity 1000-2000 t/h (0.5-3.2 m/s)

Standard pin 2.5 inches

Color: industrial paint - 140 microns on the anti-corrosion layer Henpel 5005 RAL

The increased height of the stack is 24.5 m.

The height of the falling warehouse, the angle of inclination of the conveyor

The maximum width of the tape is 1000:35000 mm.
(//tractor-service.com)
Telescopic tape width 800:2000 mm.

The diameter of the drum is 500 mm, prevents the material from sticking.

The maximum power of the belt motor-reducer 2*45 kW:

The maximum power of the motor-reducer of the belt conveyor 2*30 kW:

Total power 310 kW

Transport weight 30 tons

Transport dimensions 4400:38300:3500 mm

(The module is installed by the customer)

Control: fully automatic, with network control

Siemens automated component

Hydraulic jacks for lifting

Scraper available on main belt and receiving hopper

Cleaning: Both belts are equipped with a cleaning scraper under the conveyor belt drive drum.

Rotary brush for chevron tape receiving chute included

Discharge chute for belt conveyor included

Safety parachute brake with gravity.

Control panel: LCD display and backup control panel

The maximum speed of the conveyor belt is 3.2 m/s

Type of power source: electric

Mobile Tow Point, Towable Pin, 2.5"

The length in compressed form is 36,500 mm.

The length in the unfolded form is 55,000 mm.

Control Type: Controlled by Renote

Gutter mechanism: rotates 360 degrees

Maximum height in gutter position 20 feet

The maximum inclination of the working tape is 23 degrees.

The maximum inclination of the working belt is 3.5 degrees.

Control unit: IP68 Panel - Cooling door included

Swivel wheelbase under the loading hopper

Rigid wheel base on the side of the retractable conveyor

Hydraulic extendable supports (outriggers) Bunker area. They provide rigid fixation of the installation in field conditions.

Hydraulic extendable supports (outriggers)

Conveyor side. They provide stability and balance during work.

Grid with hydraulic control

Turning the discharge chute.

At the end of the barrel is a vertical telescopic sleeve with a rotary assembly for directing the flow ofcoal coming out of the cone.

The angle of rotation is 360 °.

At a distance of 4 m from the wheel of the support column, the passage height of the railway locomotive should be at least 5.6 m - 6 m.

Warranty 24 months.
