Metria 9000l double-walled diesel fuel tank, Kyiv

Double-walled METRIA 9000l tank for diesel fuel (Poland) - UAH 195,000.

Turnkey mini gas station 225,000 hryvnias: 149

Резервуар METRIA 9000л для дизпалива із закриваючими на замок дверима (закриваючий на замок корпус дозволяє попередити несанкціонований доступ до обладнання) [ 195 000 грн ],
The best varfant complete set 220V 56L/MIN with a PANTHER 56 pump, with an electronic counter, a water separator filter, a coarse cleaning filter PIUSI Italy [ UAH 37,000 ],
with pump 75 l/min (for refueling trucks) [ UAH 40,000 ]

Turnkey mini gas station with diesel fuel dispensing and accounting control system.

Stationary fuel tank 9000 Eko L Fuel Tank is designed for on-site storage and filling of oils belonging to the group of flammable liquids with fire hazard class III, i.e. petroleum products with a flash point above 55°C, including diesel fuel.
The tank is manufactured in accordance with the PN-EN 13341:2005+A1:2011 standard under the supervision of the Department of Technical Supervision (UDT). The tank is made in the form of a self-supporting double-walled structure made of UV-stabilized polyethylene PE-HD.

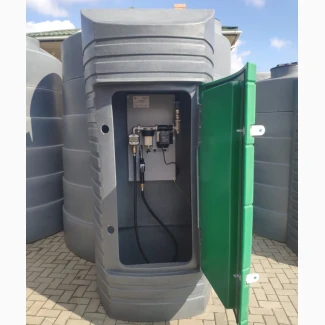

A hermetic filling cabinet (made of PE-HD) with a door that can be locked with two locks is installed next to the external tank.
The cabinet contains bottling equipment and monitoring systems.

The complete device with distribution system includes:
1. Double-walled tank with distribution cabinet (protected by two locks).
2. Distribution system consisting of:pump, flow meter, filling gun, fine filter, sleeve.
3. Monitoring system consisting of:
a sensor that monitors the interluminal space (leakage control),
fuel level probe.
transmitter interacting with sensor and probe(//tractor-service.com)
receiver with display
4. Maximum level sensor. The device consists of a probe located at the top of the inner tank and a plug that connects to a system that signals when the maximum level is exceeded or automatically shuts off the unloading pump on the tanker. The device protects the tank of the portable dispenser from overflowing and overflowing during unloading.
5. Unscrew the ventilation hole in the inner tank.
6. Inspection cover in 4 inch inner tank.
7. Inspection cover in outer tank, 16 inches.
8. The two-inch filler neck ensures a tight connection with the injection tank.
9. Grounding is carried out outside the distributor housing.

Each double-wall tank is equipped with standard fittings in accordance with the requirements of the standard:
protection against overflow of the GOK tank
air release valve
a probe that monitors the space between the shells (signaling a leak)
Euroconnector VK 50

To protect against mechanical damage, the tank must be transported empty and with attached transport belts.
The tank is installed on the street, on a flat surface.
The tank must touch the soil surface tightly and stand vertically.
Before installing the tank, the surface must be thoroughly cleaned.
Optimum protection against fuel leakage and smell due to the use of a proven design solution - a double-walled design, which also provides high resistance to mechanical damage.
High-quality polyethylene, from which the tanks are made, and the most modern production technologies provide reliable protection against temperature changes.
Long-lasting: they do not change color, do not crack, do not corrode, are resistant to sunlight and ultraviolet rays.
Operation of the tank does not require special preparation, it consists in connecting thepump to a current source of 220,380,12,24 V, controlling the fuel level through the inspection or filling hatch, or with the help of an indicator.
