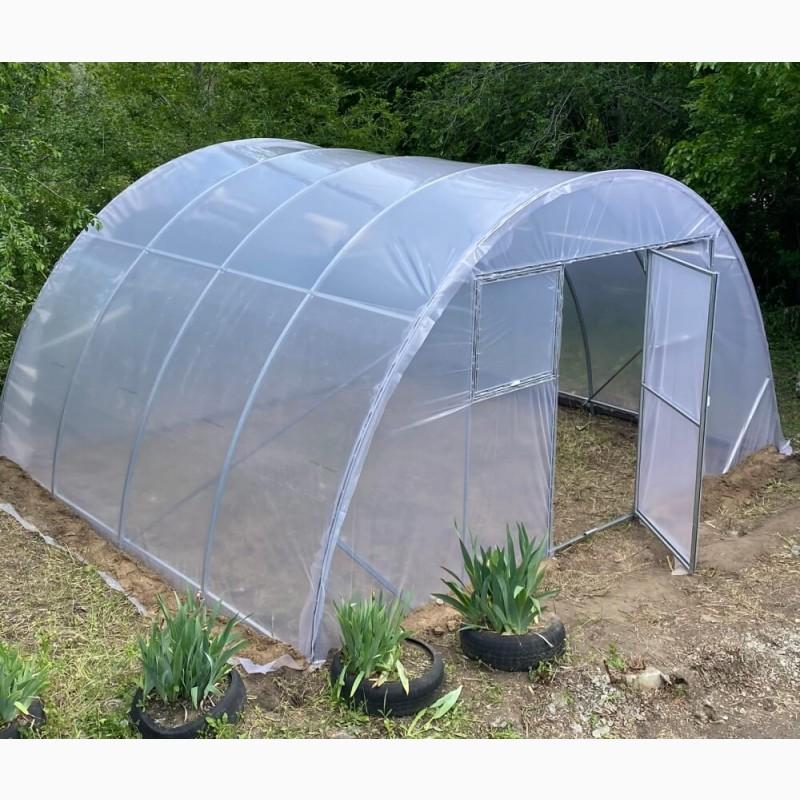

Greenhouse "Almir" 5 or 6 m wide from a square pipe 30*30 with a film of 150 microns, Kyiv region.

The assortment includes the following types of greenhouses:
Greenhouse "Almir" 5×8 from galvanized square pipe with 150 micron film - UAH 26,100
Greenhouse "Almir" 5×10 from galvanized square pipe with 150 micron film - UAH 29,600
Greenhouse "Almir" 5×12 from galvanized square pipe with 150 micron film - UAH 33,100
Greenhouse "Almir" 5×14 from galvanized square pipe with 150 micron film - UAH 36,500
Greenhouse "Almir" 5x16 made of galvanized square pipe with a film of 150 μm - UAH 40,100
Greenhouse "Almir" 5×18 from galvanized square pipe with 150 micron film - UAH 43,500
Greenhouse "Almir" 5×20 from galvanized square pipe with 150 micron film - UAH 46,950
Greenhouse "Almir" 6×8 made of galvanized square pipe with 150 micron film - UAH 30,500
Greenhouse "Almir" 6x10 from galvanized square pipe with 150 micron film - UAH 34,500
Greenhouse "Almir" 6x12 made of galvanized square pipe with 150 micron film - UAH 38,600
Greenhouse "Almir" 6×14 from galvanized square pipe with 150 micron film - UAH 42,800
Greenhouse "Almir" 6x16 made of galvanized square pipe with a film of 150 μm - UAH 47,100
Greenhouse "Almir" 6x18 from galvanized square pipe with 150 micron film - UAH 51,200
Greenhouse "Almir" 6x20 from galvanized square pipe with 150 micron film - UAH 55,500

The frame of the greenhouse "Almir" is made of galvanized square pipe 30x30 mm. The greenhouse can withstand mechanical loads of up to 250 kg/m2. The term of operation of the greenhouse is from 10 years.

One end of the greenhouse has a door and two cabins, the other has two cabins. The film is attached using zigzag profiles.

Galvanized frame
The frame of the greenhouse "Almir" is made of galvanized square pipe 30x30 mm. Frame parts are galvanized inside and out by hot-dip galvanizing. The distance between the arches is 2 m in frames under the film and 1 m in frames under polycarbonate. The frame has 5 longitudinal rows. The greenhouse can withstand mechanical loads of about 250 kg/m2.

Greenhouse frame made of galvanized square pipe
Simple installation
Installation of the greenhouse does not require welding. Frame elements are connected to each other by connecting two pipe ends (telescopic connection) or with the help of corners and are tightened with bolts. Thegreenhouse kit includes detailed video instructions and a simplified printed version.

Anchor for the stability of the greenhouse
Anchors for stability
T-shaped anchors are included in the greenhouse set. Anchors are attached to the ends of each arch and to the door jambs. Anchors are dug into the soil to a depth of 35-40 cm, which ensures the stability of the frame. When installing the frame on a concrete foundation or a wooden beam, the greenhouse kit is supplemented with anchor bolts.

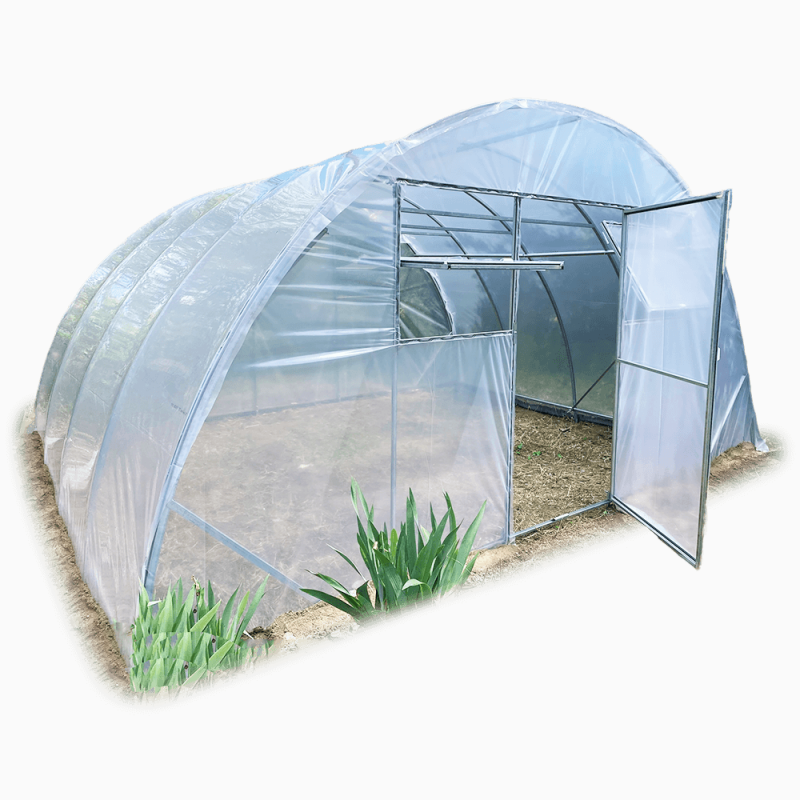

Farm greenhouse Almir under the film
Greenhouse film
The greenhouse is equipped with a light-stabilized film. The term of operation of the film is 3 years (manufacturer's warranty). The greenhouse film performs the following functions:

Transmits the light necessary for the rapid growth of plants;
Retains harmful ultraviolet rays for plants;
Protects plants from rain, snow, wind, etc.
Zigzag profile for attaching the film to the greenhouse
Fastening the film(//tractor-service.com)
In the extended configuration of the greenhouse, the film is attached to the frame using a special fastener - a zigzag profile. The zigzag profile consists of two elements — a metal U-shaped profile that is attached to the frame, and a metal zigzag that clamps the edge of the film inserted into the profile.
Video

Frame of Almir farm greenhouse made of galvanized square pipe

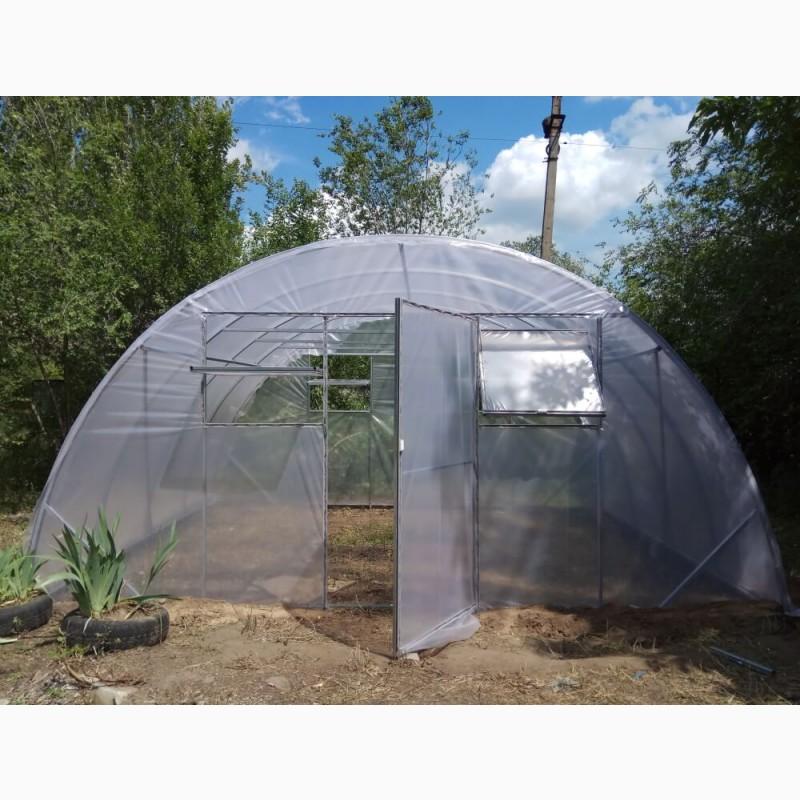

Doors and apartments
"Almir" greenhouses in the standard configuration have 1 door and 2 windows on one end and 2 windows on the opposite end. The second door can be ordered as an option. Doors and windows are fastened with hinges, have handles and latches to prevent involuntary opening.

Kit for mounting a greenhouse under a film
Complete set
The greenhouse kit contains everything you need for its installation: detailed installation instructions (video, PDF and printed version), metal elements of the frame, doors, windows, anchors, film, film fasteners, a fastening kit consisting of corners, bolts, nuts, etc.

Recommended conditions of operation and installation of a greenhouse
The greenhouse must be installed on a level site;
The greenhouse should be installed on the most shaded side of the house;
The greenhouse around the entire perimeter should be dug into the ground to a depth of 35-40 cm;
All metal elements of the frame must be fixed and tightly tightened.

Frame
Galvanized square pipe 30×30 mm

Width of the greenhouse
5 m, 6 m

The length of the greenhouse
8 m, 10 m, 12 m, 14 m, 16 m, 18 m, 20 m

High-quality film
5-year warranty, high degree of UV protection.

Film thickness
150 µm

Strength
250 kg/m2.

Door
One door with two flats on one side of the greenhouse and two flats on the other side (the second door can be ordered as an option)

Complete set
Detailed installation instructions, frame elements, 1 door with hinges (the second door is optional), 2 hinges, handles, film, anchors, a fastening kit consisting of angles, bolts, nuts, etc. info.
