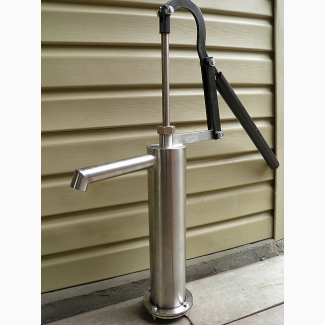

Hand pump for a well Hand water pump column. Pishchevaya stainless steel, Poltava region.

Hand pump for a well. Manual water pumpcolumn pump. Food grade stainless steel

- water mirror (depth to the beginning of the water in the well) no more than 8 meters.

- the total depth of the well itself is no more than 100 meters.

The pistonof the pump is cast in the production precisely according to the diameter of the sleeve, this allows to extend the life of its operation as much as possible.

DESCRIPTION AND GENERAL CHARACTERISTICS:

The pump consists of a sleeve, anodized steel flanges, a piston with a handle for supplying water and a goose.

The outer diameter of the sleeve is 101.6 mm.

Sleeve height - 330 mm(//tractor-service.com)

Sleeve material - FOOD STAINLESS STEEL

The material of the flanges is stainless steel.

Fastening to a horizontal surface is carried out by means of a flange on the lowerpart of the pump or on a well pipe with an external thread 1"

The diameter of the fastening holes is 10 mm.

The suction nozzle for water is located on the lower end of the cylinder.

Thread for connecting a fitting or pipe ― 1"

The pump does not create pressure at the outlet and serves only to fill containers that are installed under the pump outlet.

Water supply for 1 press 1500 ml.
