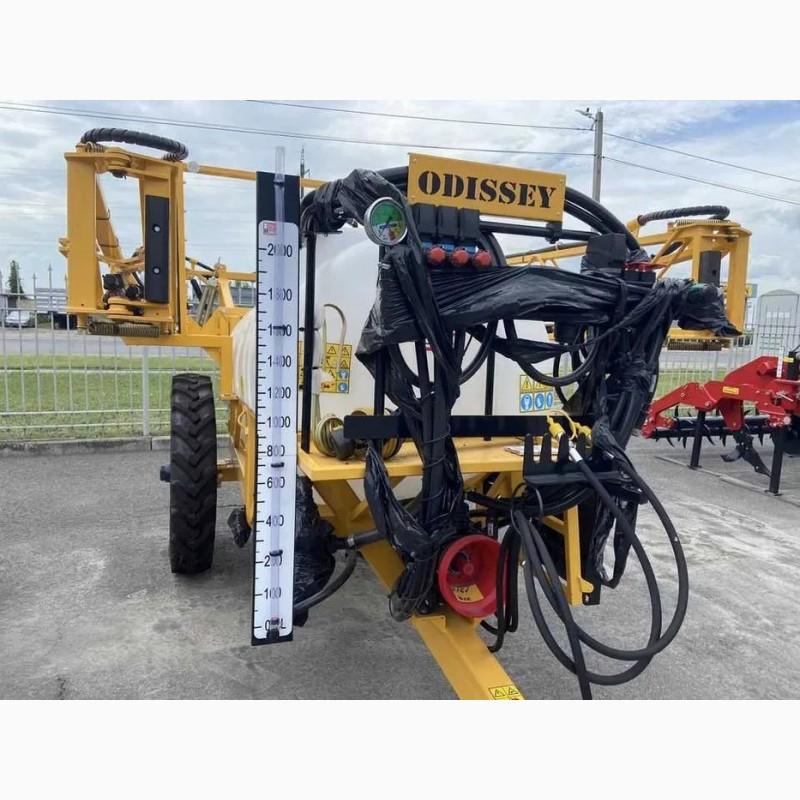

Trailed sprayer Boguslav Boguslav OPK 2000-18 Odyssey, Odesa region.

ODYSSEY OPK 2000-18 (hydraulic disassembly)
The OPK 2000-18 trailed sprayer has an 18 m long volumetric boom and a pendulum stabilization mechanism. It also has a hydromechanical vibration damping system. The bar and frame are made using sandblasting followed by powder painting to increase reliability and protect the surface of the equipment from corrosion.
• OPK 2000-18 is equipped with a parallelogram-shaped suspension equipped with two hydraulic cylinders; it provides a smooth change in the height of the bar installation from 0.5 to 1.8 m even during the movement of the equipment.
• In case of collision with an obstacle, the rod is equipped with a protective mechanism that allows it to deviate up to 15 degrees. vertically and up to 45 degrees. horizontally After the obstacle is passed, the bar will be returned to its original position.
• The trailed sprayer includes a polyethylene tank with a capacity of 2,000 liters.
• To maintain a constant concentration of the working fluid, 2 injection mixers with ceramic tips are used, which are placed at the bottom of the tank.
• OPK 2000-18 is equipped withwheels of a large diameter (R32), which ensures operation at high speed with a clearance of 550 mm.
• The width of the track can be adjusted by a stepless device in the range from 1400 mm to 1800 mm.
• To ensure smooth and reliable operation of the sprayer's hydraulic communications, the device uses a pump from the Italian company "Annovi Reverberi", communication elements from the Italian company "Arag", as well as sprayers from the German company "Lechler", which are leaders in the production of components for sprayers.

Technical characteristics of the OPC 2000-18 "Odyssey" trailed sprayer
1. Capture width, m 18
2. Tank capacity, L 2000(//tractor-service.com)
3.Pump productivity Annovi Reverberi, l / min 160
4.Tires 9.5R42
5. Track width limit, mm 1400-1800
6. Clearance, mm 650
7. Weight, kg 1600
8. Working height of the bar, mm 500-1800
9. Cardan shaft Weasler AW 10
10. ARAG computer optional
11. Foam marker / Cruizer II GPS navigator optional
12. Equipment for washing canisters
with a mixer with a capacity of 20 l as an option.
13. Wide-angle cardan shaft Weasler AW21-80˚ optional
14. Nozzle holder for 3 IDK injector nozzles (red, blue, brown) optional
15. Nozzle holder for 1 IDK injector nozzle red basic configuration
