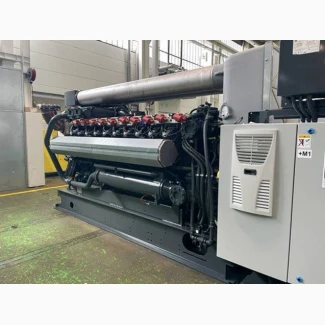

Gas generator Jenbacher 320, 1000 kW, 2023, new without working, Kyiv

GPD Jenbacher J320, 1 MW, 2023 new without working.

Technical parameters of the equipment:

Engine Brand QRS 20V3 (JENBACHER J320)

Engine type 20V3 (J320)

Engine power – 1,006 Kw

RPM 1500

Fuel Natural Gas Methane

Generator STAMFORD

Volts 400

Hz 50

Control unit DIA.NE

Year of manufacture 2023

Working hours - 0 hours, did not work

Warranty 12 months.

The option is a 24-month warranty.

The package includes:

- GPA with generator

- Gas main

- Computer Control Unit

Technical parameters of GPA:
(//tractor-service.com)
Input power

Methane consumption - Gas volume 265 Nm³/h

Electric power 1006 kW.

Heat removed (based on glycol 37%)

~ 1st stage intercooler (engine jacket water cooling circuit) kW 166

~ 2nd stage intercooler (Low-temperature circuit) kW 85

Lubricant (Engine jacket water cooling circuit) kW 118

~ Water in the shirt kW 341

~ Surface heat. kW 86

Spec. fuel consumption of the electric motor kWh/kWtel h 2.50

Spec. engine fuel consumption kWh/kWh 2.44

Consumptionlubricants approx. [3] kg/h 0.31

Electrical efficiency 39.9%

Fuel gas LHV kWh/Nm³ 9.5

Main dimensions and weight

Length mm ~ 5.700

Width mm ~ 1.700

Height mm ~ 2.300

Empty weight kg ~ 13.900

Weight of the equipped kg ~ 14,400

Warranty 12-24 months.
