Reel 1″inch 25mm (on 15m) for diesel fuel for winding hose Hosereel XL F0075018B, Kyiv

Hosereel XL hose reel, without hose ( F0075018B ) - 1″ (15m), for diesel fuel PIUSI Italy

Reel for hose diameter 1″ (25mm) – without a sleeve,

coil capacity (maximum sleeve length) – 15m,

the presence of a mounting bar,

pressure - 15 bar,

for diesel fuel,

weight – 27 kg, 175

розмір – 560*350*560мм,

матеріал – нержавіюча сталь,

producer: PIUSI ( Italy ),
(//tractor-service.com)
warranty - 12 months.

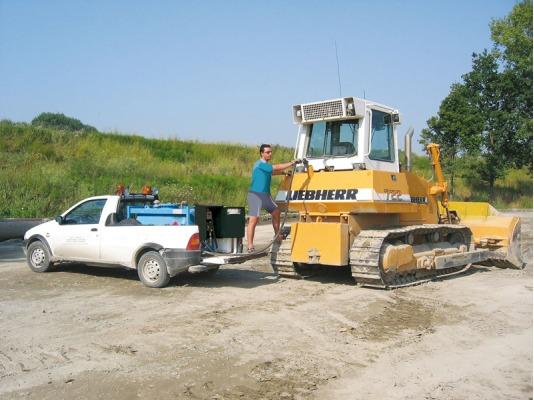

Automatic retracting mechanism for supply hosesdiesel fuel andoil, which allows you to refuel the equipment when it is not possible to drive close to the gas station or for cars with large dimensions.

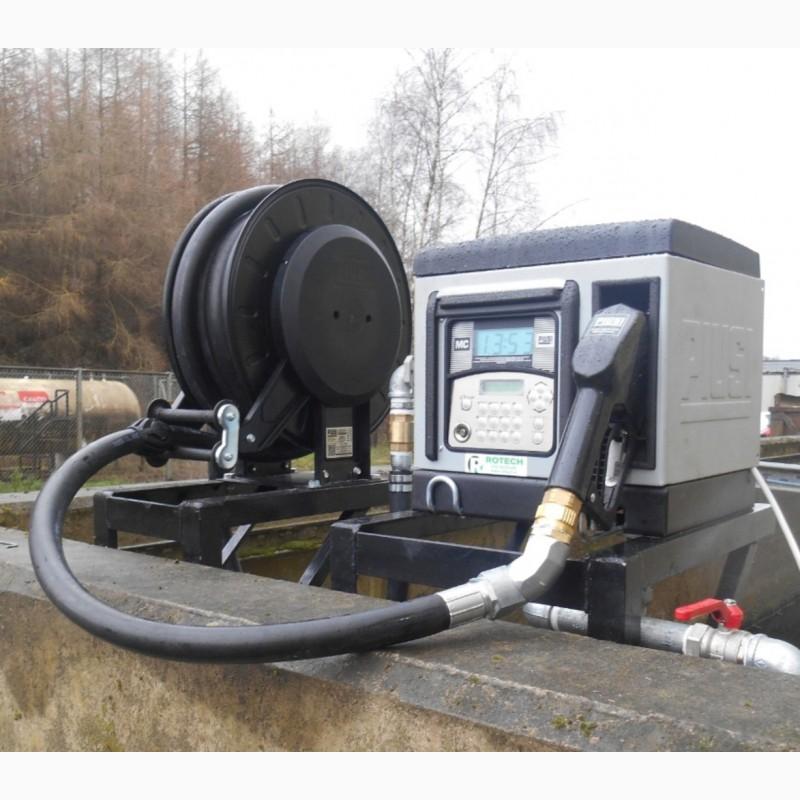

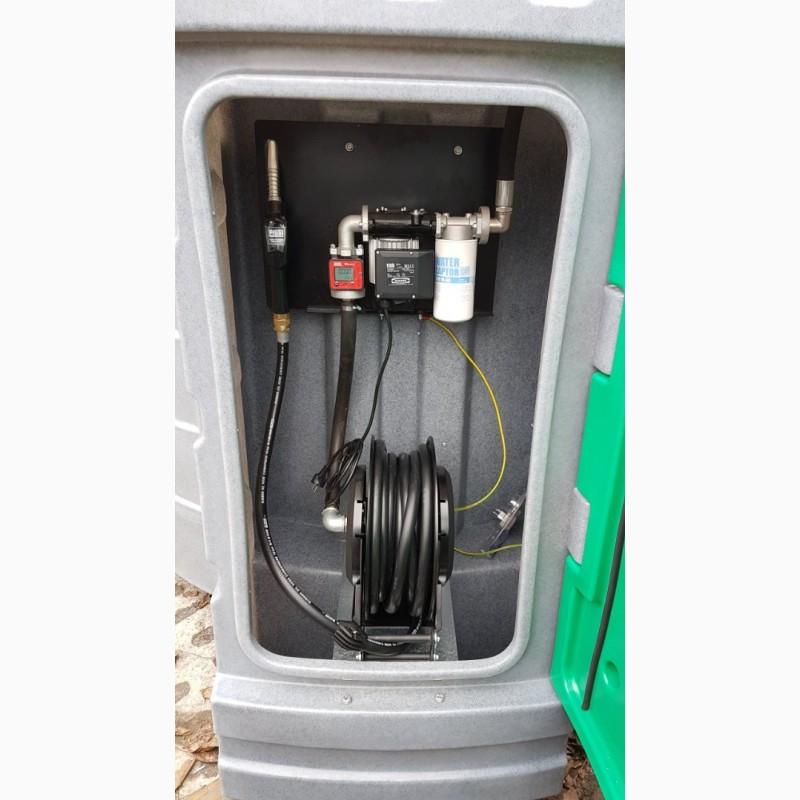

It is installed on gasoline trucks and fuel dispensing modules.

Thoughtful design allows to limit pressure losses and simplifies use even with high-performancepumps, which are commonly used in diesel fuel filling stations.

Features:
- reduction of pressure loss thanks to the correctly selected size of the hydraulic system;
– installation of drums in a safe position with side protection to prevent accidental contact with hands;
– adjustable brackets to simplify placement according to needs;
– rotary support (on order) for adjusting the direction of the retracting mechanism.

Installation is carried out with the help of a bracket that allows you to position the drum in any plane, all models of this series are equipped with a bracket.

The coil is equipped with a device for automatic winding of the fuel hose.

A specialized device prevents arbitrary unwinding under pressure up to 15 Bar.
