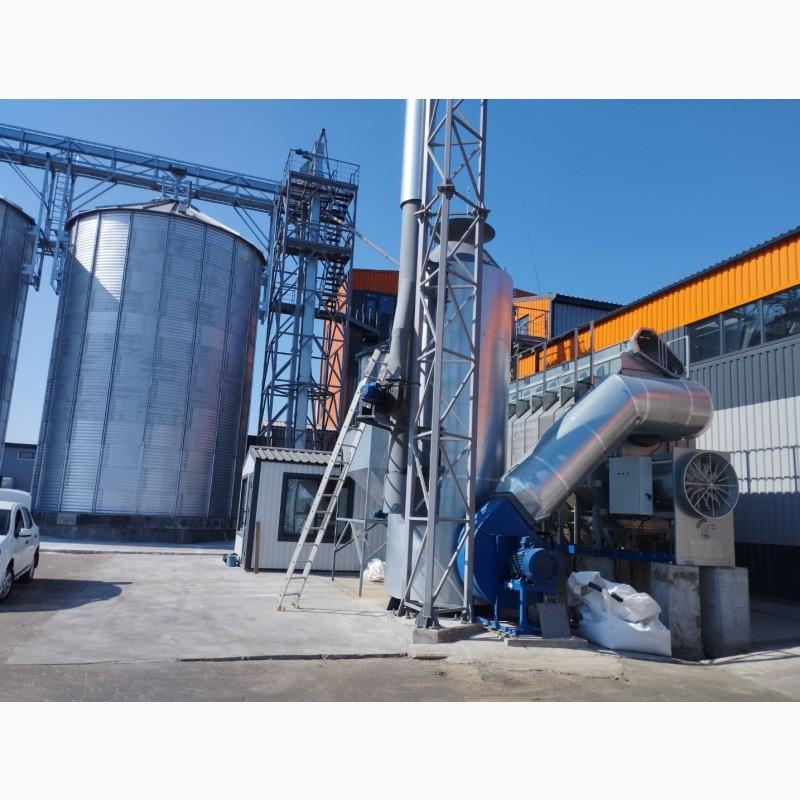

Drying of grain with clean heated air without impurities of smoke and sparks!
The design of the heat generator is based on the principle of quick maintenance and maximum combustion of both the fuel itself and the flue gases released during combustion.
Heat generators actually incorporate all the advantages of the pyrolysis method of combustion and the advantages of a conventional solid fuel boiler.
A heat exchanger made of heat-resistant stainless steel and a combustion chamber are combined in one unit, which makes direct heat transfer without loss of efficiency. Below the firebox there is an ash collector, which allows you to quickly and conveniently clean the firebox.
Thanks to the built-in heat exchanger, the following advantages are achieved:
• Compactness and small dimensions.
• Combustion products that have entered the heat exchanger settle in the ash accumulators, which facilitates maintenance.
• A large usable area of heat exchange significantly reduces fuel consumption and allows you to easily reach an outlet air temperature of 1200 C.
• Thanks to the design of the installation, the time of preparatory and installation work is significantly reduced.
• Insignificant fuel consumption to remove one ton-percent of moisture.
(//tractor-service.com)
The principle of operation of the heat generator: the fuel is automatically fed into the combustion chamber, where it burns, with the help of an auger. The main fan draws in air from above through the heat exchanger and, heating it to a temperature of 40 to 120 degrees C, supplies it to the chamber
grain dryers, and combustion products (smoke) are removed through the chimney.
Control panel: automatically maintains the set temperature from 40 to 120 0C, can be equipped with a soft start or a frequency converter to reduce the starting load when starting the main fan. The control panel is equipped with a network gateway, which allows you to control the drying process from a mobile phone, laptop or computer, to see when the heat generator was turned on, at what temperature it worked, etc.
The type of fuel for the heat generator can be:
waste of sunflowers, rapeseed, soybeans, cobs
corn, small chips, pellets, etc. To remove 1 ton-percent of moisture, 2.5-3 kg per hectare of waste is used, or about 2 kg. pellets.
One worker is enough for the maintenance and operation of the heat generator, cleaning is carried out once a day, which takes 20 minutes.
Safety measures: in the event of a power failure, the firebox is simply opened and the heat is swept out of the combustion chamber. The heat exchanger will not suffer any damage.
Power of heat generators:
1 MW; 1.5 MW; 2 MW; 3 MW.
Warranty - 24 months.
