Sowing services | accurate hanging | continuous sowing | No-Till | Mini-Till, Kyiv region.

The service provides LLC "TECHSYSTEMS"

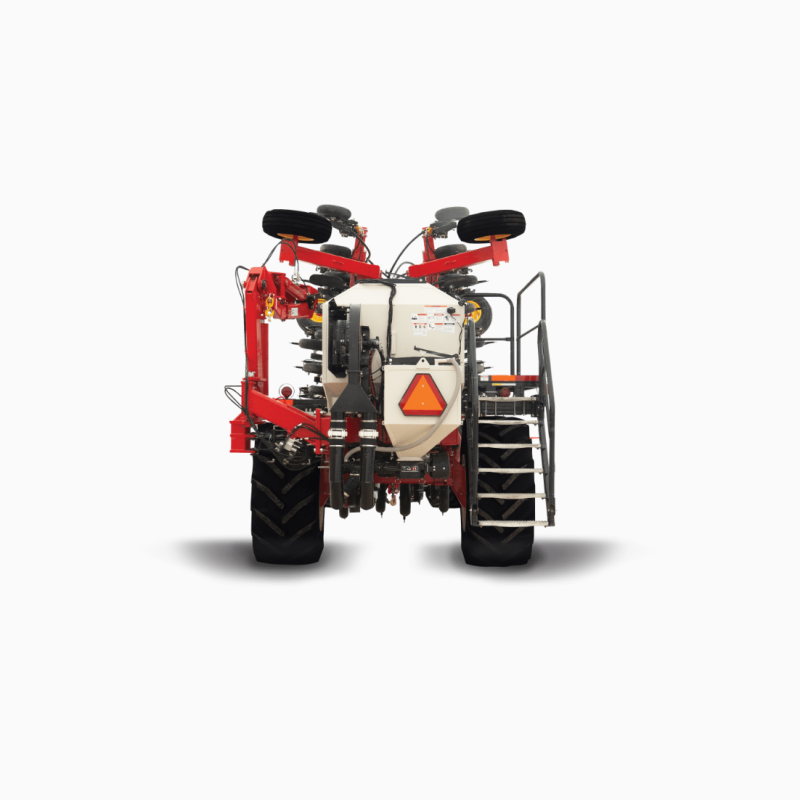

Disc seeding complexes for zero and minimal seeding Bourgault series FMS model CD-872, a working width of 8.4 meters, with a row spacing of 17.5 cm and a system of precision sowing at 70 cm.
Accurate sowing - sunflower,corn, soy.
Any crops from the smallest small-seeded crops with a rate of 1 kg/ha to the largest legumes with a rate of up to 500 kg/ha with the simultaneous application of starter fertilizers in the row and the main rates separately in the interrows. Sowing with minimal technologies and any amount of No-Till plant residues.

Characteristics of theBourgault sowing complex CD-872

Three sections of the frame with placement of coulters in two rows.
The width of the row is 17.5 cm.
The width of the capture is 8.4 meters.
Sowing rate from 1 kg to 500 kg per hectare.
Disc coulters with a diameter of 52 cm are equipped with a scraper for minimal disturbance of the soil layer. The disc has a positive angle of attack (10° vertical inclination and 7° - horizontal), mounted on a design of parallelogram levers, which ensures individual copying by each coulter. Narrow-profile spoke-shaped copying-cleaning wheel with a width of 76 mm. The wheel is located on the opposite side of the coulter disc and in line with the coulter to maintain seeding accuracy. The position of the copying wheel is set using the adjusting lever (step 6 mm, range 0-89 mm). Rolling semi-pneumatic wheel rollers with a width of 115 mm for improved self-cleaning. The rolling pressure is from 40 to 80 kg per rolling wheel. Adjustment is carried out by changing the tension of the spiral spring installed on the lever.(//tractor-service.com)
The total volume of the pneumatic bunker is 7,200 l.
Air Planter™ precision seeding systems for 70 cm row spacing. Learn more about the Air Planter precision seeding system
Application of dry or liquid fertilizers in a row with seeds. Dry fertilizers can be supplied from the pneumatic hopper through the seedbed of continuous sowing, and liquid - through the tubes in the front part of the working body. Or applying fertilizers at a distance of 17.5 cm from the line of precision sowing.
3-section hopper with KNEX™ section integration system.
BulkBoom™ crane for easy and quick hopper loading.

Tractor

Agricultural tractor McCormick X8.680. More about McCormick tractors
Poluzzi Rhino36-X track system.
FPT Beta Power ISO-mounted T2 eVG TDCR engine, 6-cylinder with turbocharging, maximum power 310 hp. (228 kW), nominal power 301 hp. (221 kW).
The volume of the fuel tank is 550 l.
The VT-DRIVE transmission is a continuously variable transmission (4 CVT ranges). ECO mode 40 km/h (at reduced engine speed). Reversing under load (Revers Power Shuttle). Electrohydraulic locking of the rear axle differential.
Length (with counterweight) 5.15 m / width 3.00 / height 3.40 m.
