The price is indicated without transport and trailer devices!

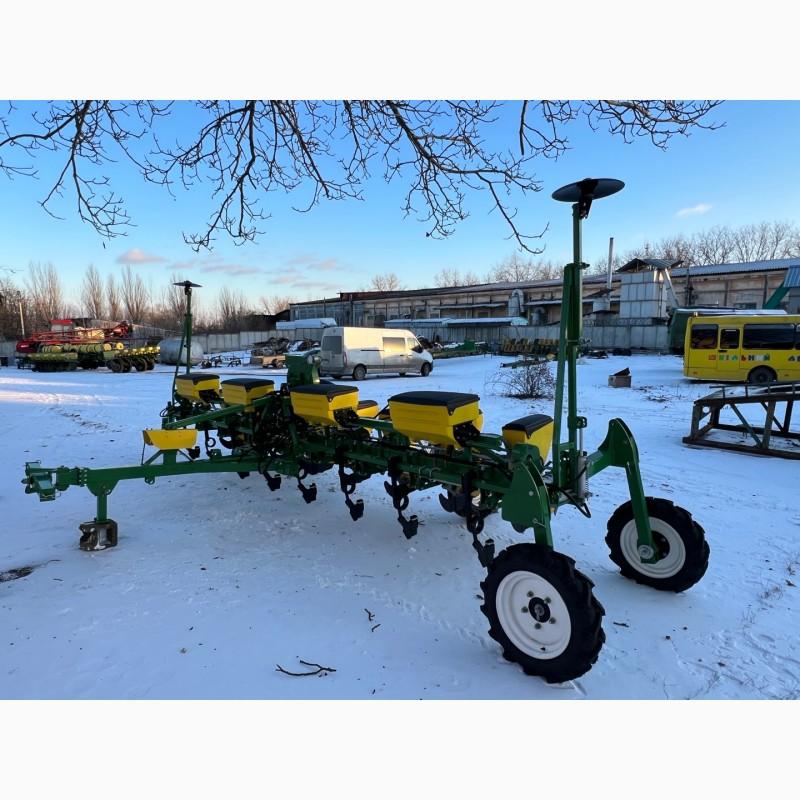

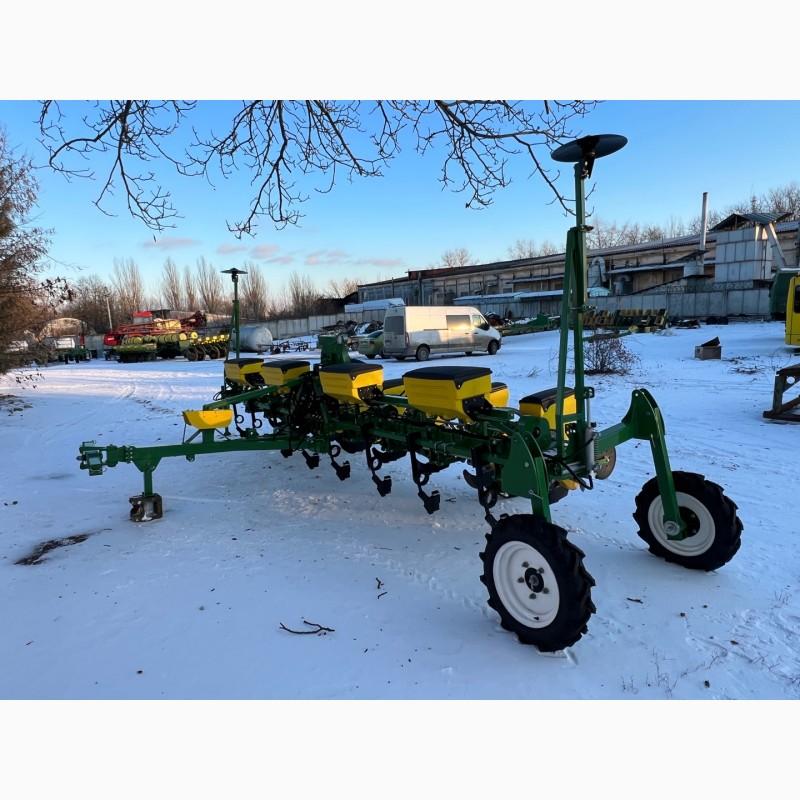

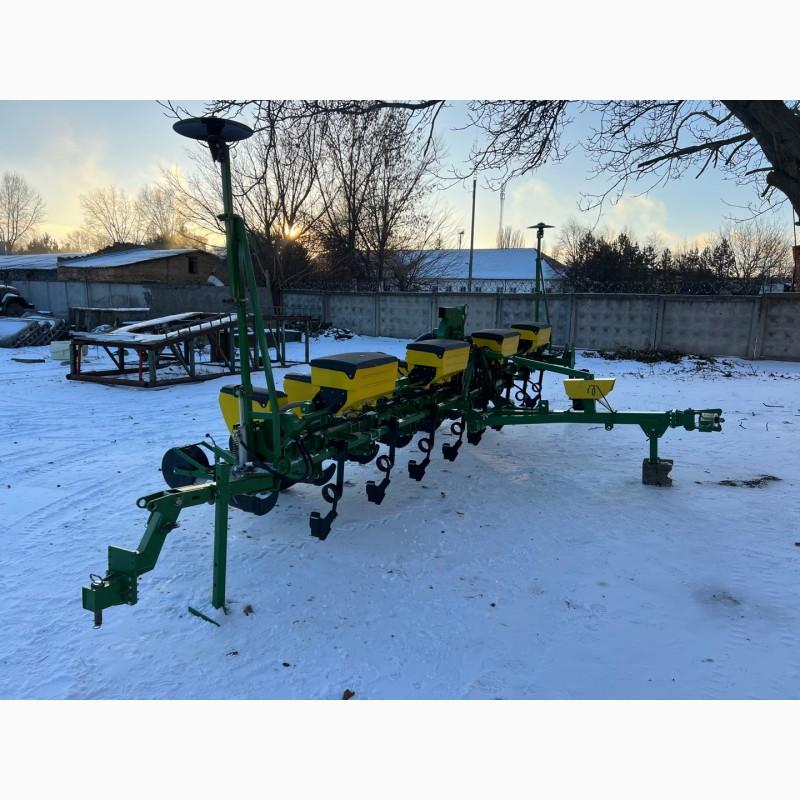

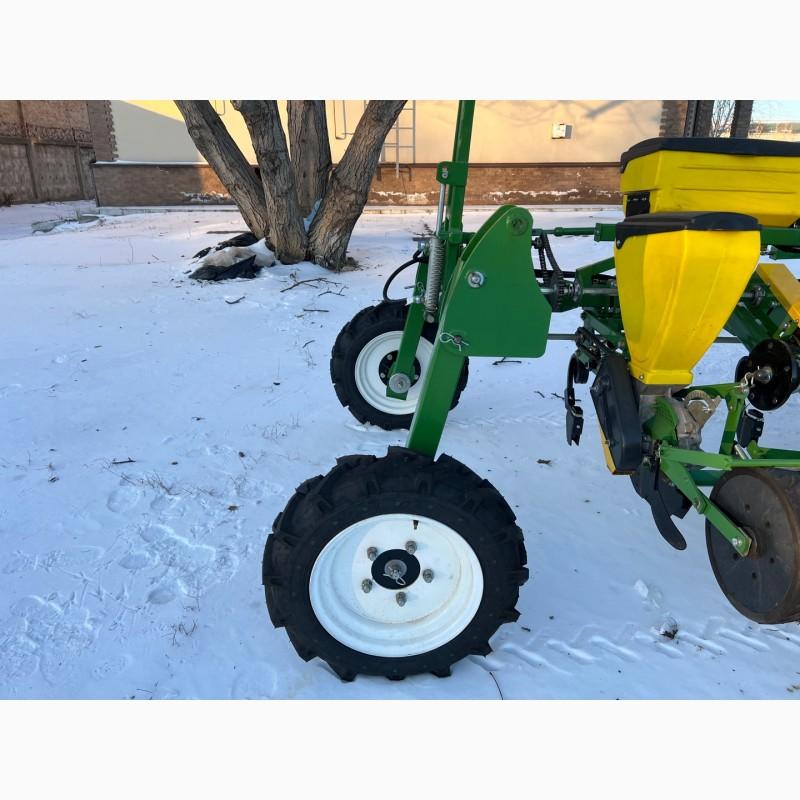

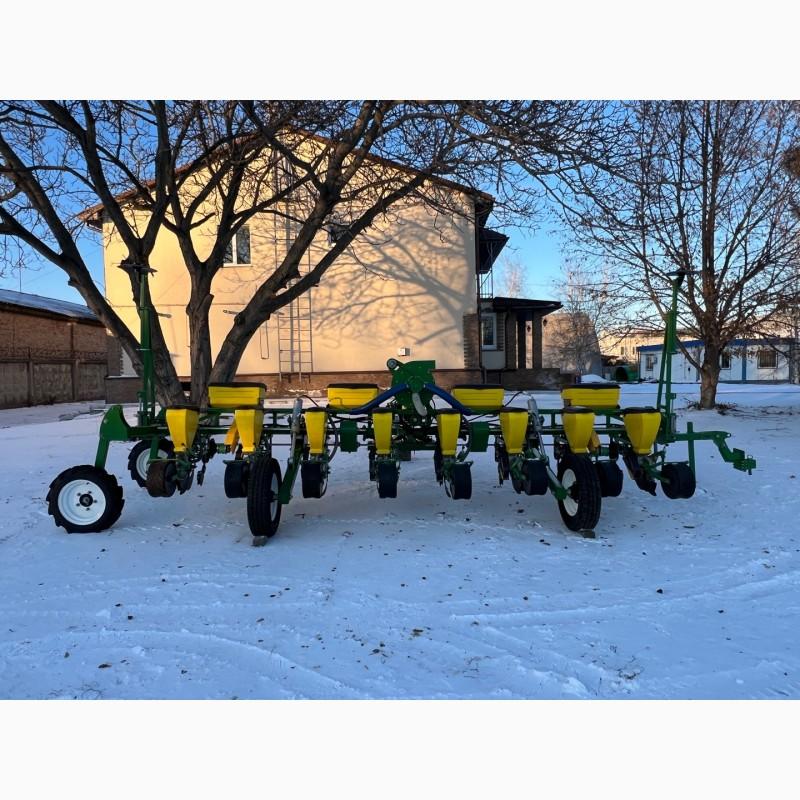

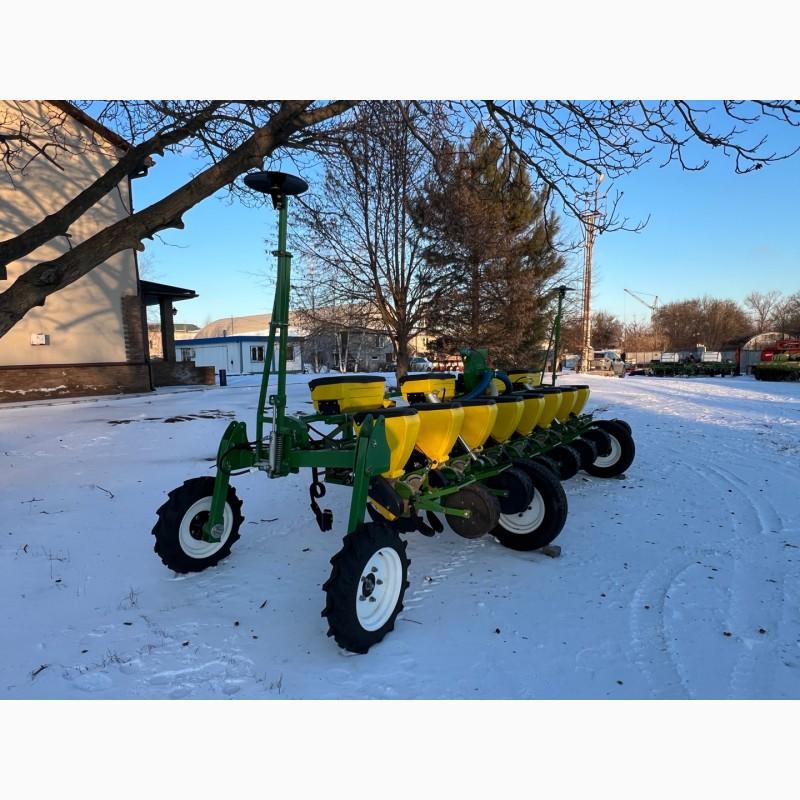

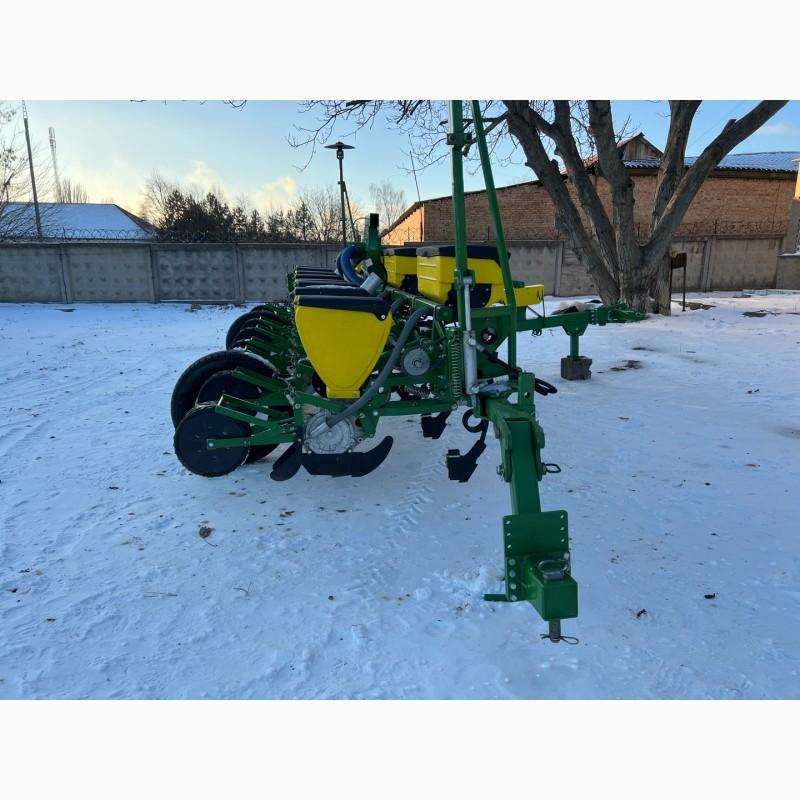

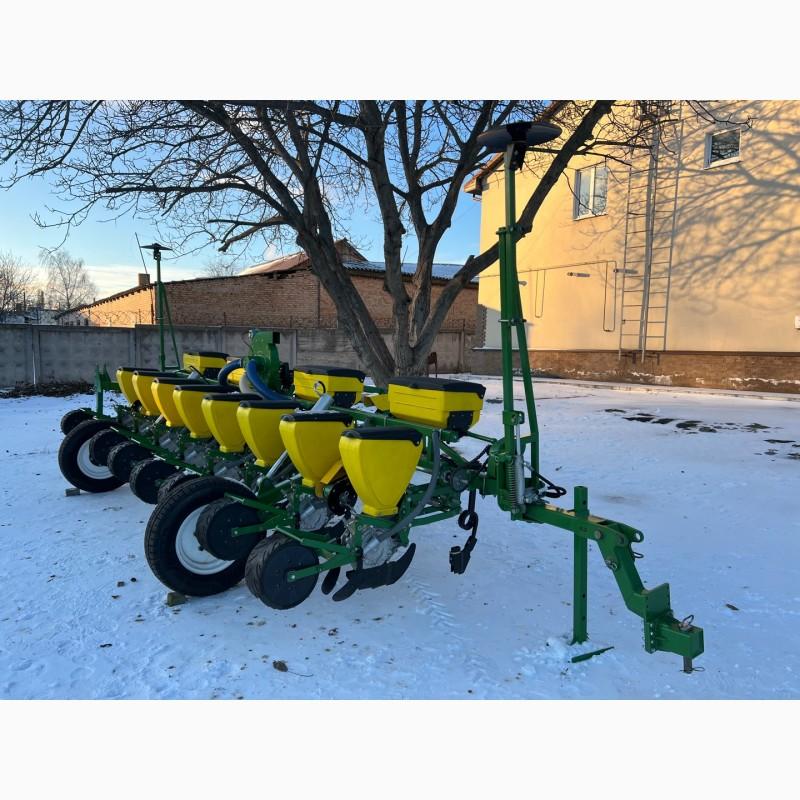

Pneumatic universal
precision seed drill VPS-8
Universal pneumatic seeder designed for
precise sowing of calibrated seeds:
- corn,
- sunflower,
- sorghum,
- soybeans
- beans
Features:

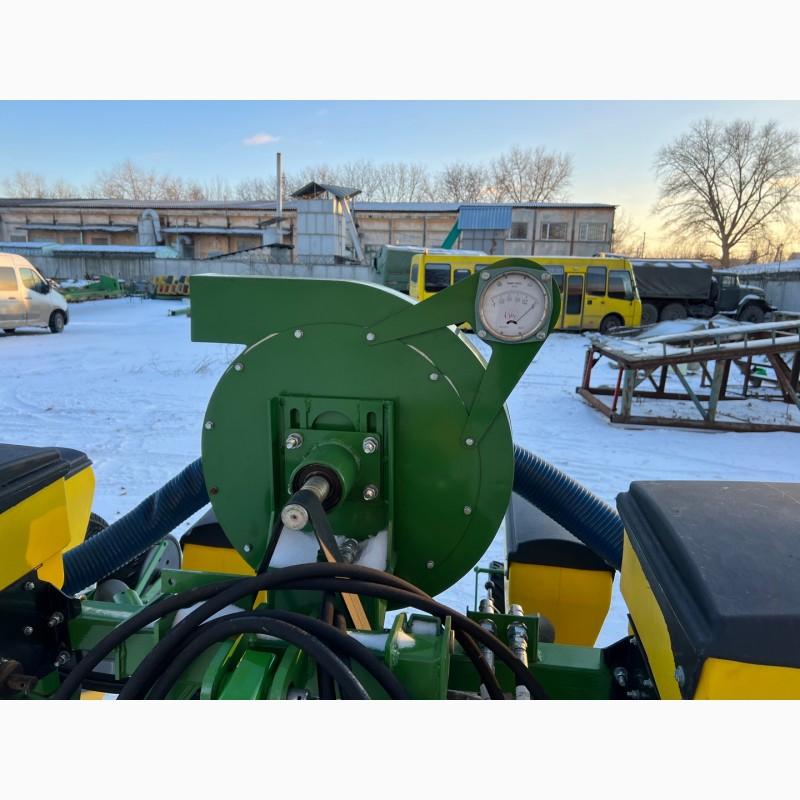

Rotary fan :
To create a stable discharge in the pneumatic system, the seeder is equipped with a rotary fan that operates from the PTO of the tractor, through the cardan shaft at a speed of 540 rpm.
It has an overtaking clutch, thanks to which, when turning, after dropping the engine revolutions, the fan continues to work due to inertia, the seeds do not fall off the sowing disc.
Pneumatic sowing machine
Reduces the percentage of seed crushing almost by half, if compared with the mechanical method of sowing.
Accuracy of sowing from 2 to 42 seeds per 1 linear meter. The seeder also has a viewing window.

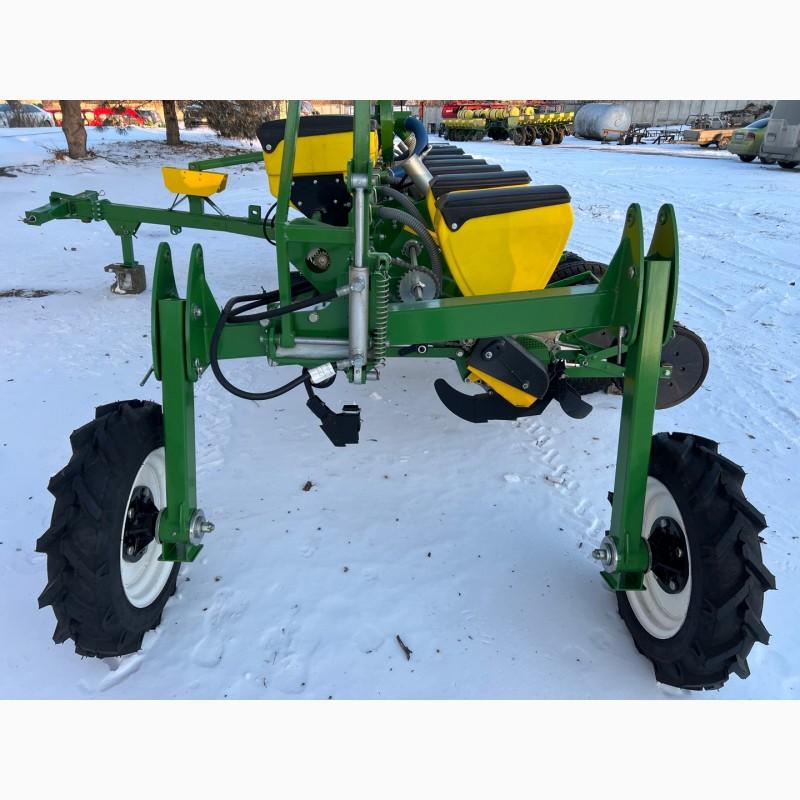

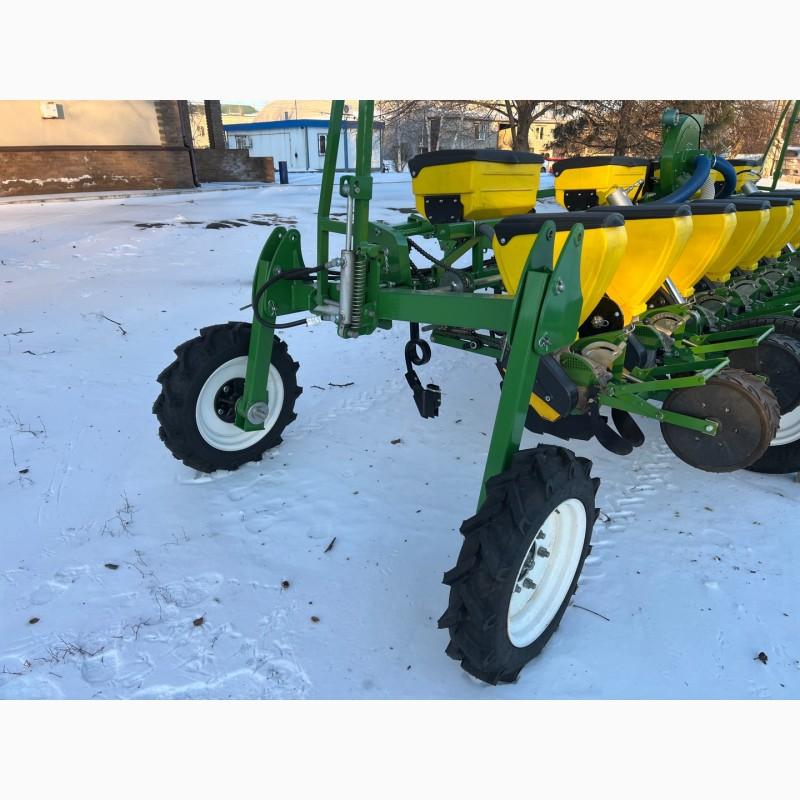

Parallelogram hanging of sections
Allows you to copy the topography of the soil, which affects the uniform depth of laying.
The planter comes with 2 sets of
sowing discs made of stainless steel for your chosen crops.
Features of the VPS-8 seeder

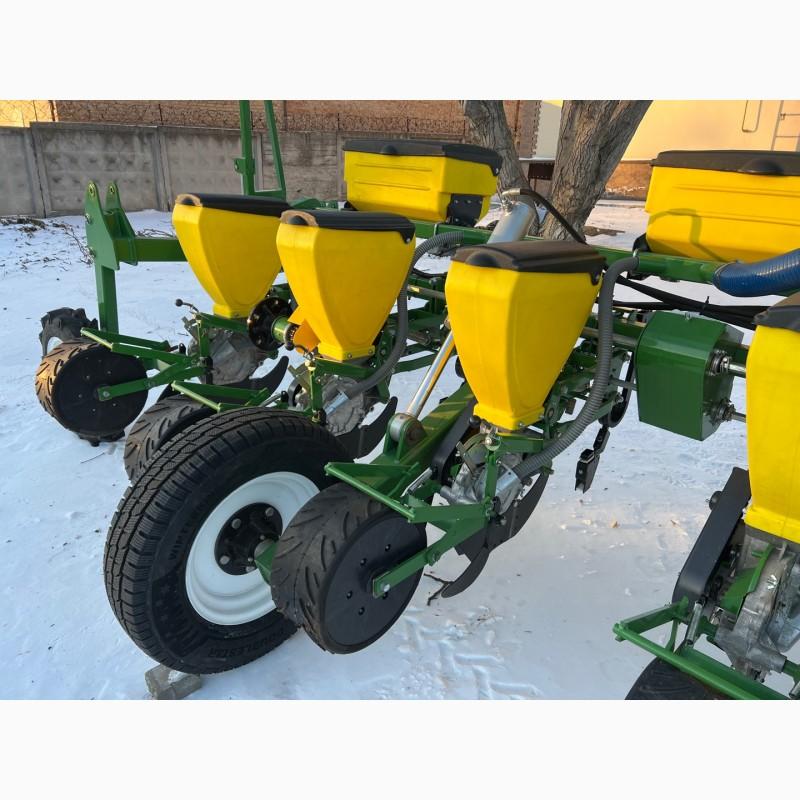

Grain hopper and frame
Nylon bunkers (do not deform, do not crack when the temperature drops, do not require additional processing).
The frame acts as a receiver and serves as a discharge chamber for the pneumatic system. Reinforced frame beam (80x80).
Fat seeder
(//tractor-service.com)

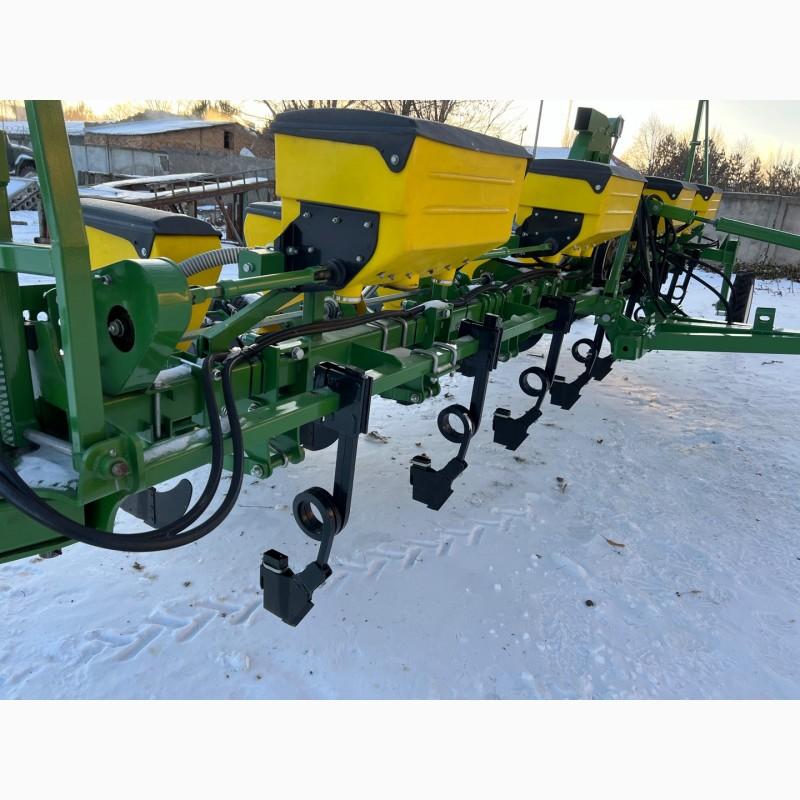

Fertilizers are applied through separately adjustable anchor coulters, fertilizers are placed separately from seeds. Plastic hoppers are used for fertilizers, which excludes the process of deformation from the chemical influence of fertilizers.
Painting - powder, special agricultural, wear-resistant paint. Individual parts of the planter have a galvanic coating.

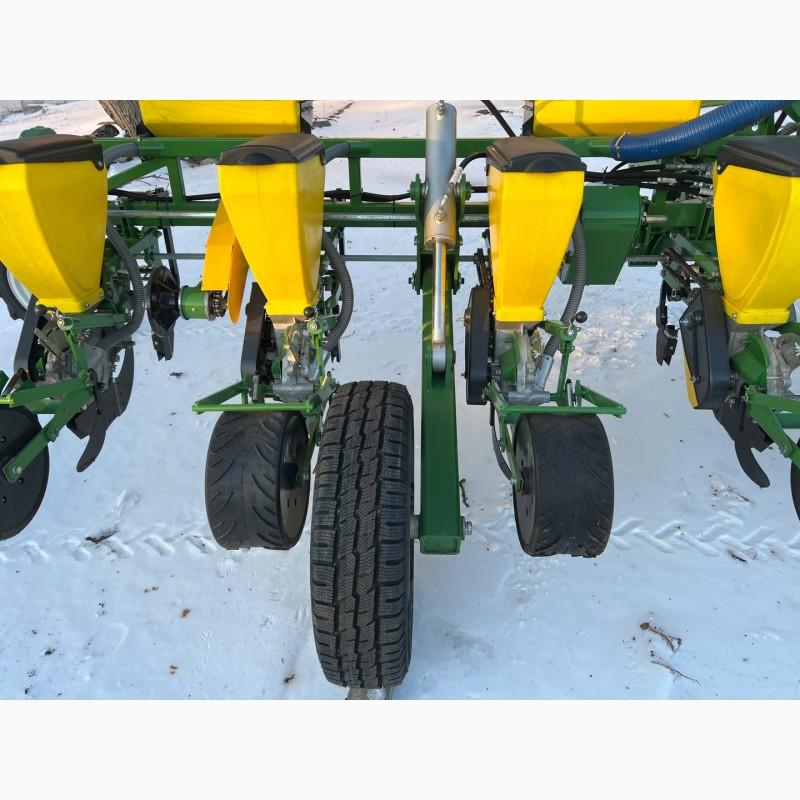

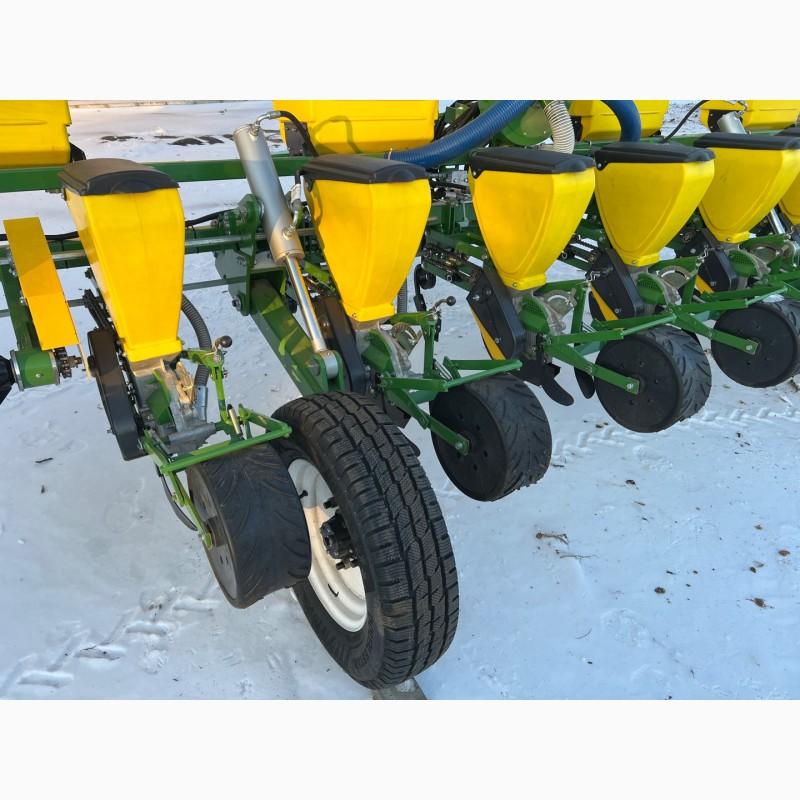

Heavy roller - of a specially designed shape (herringbone protector pattern), which ensures soil compaction and uniformity of sowing at a given depth, as a result of uniformity of growth.

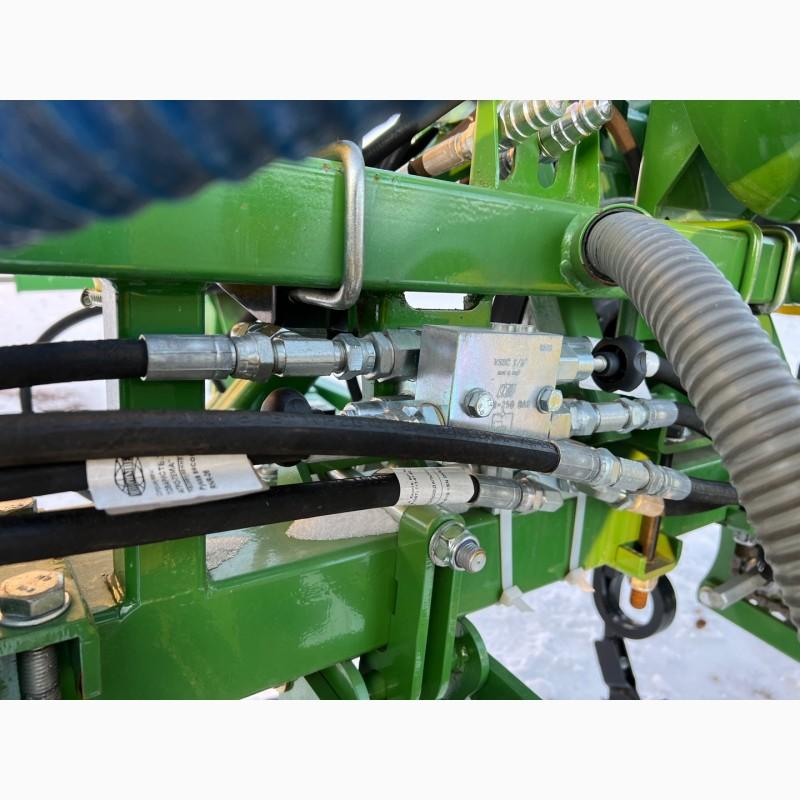

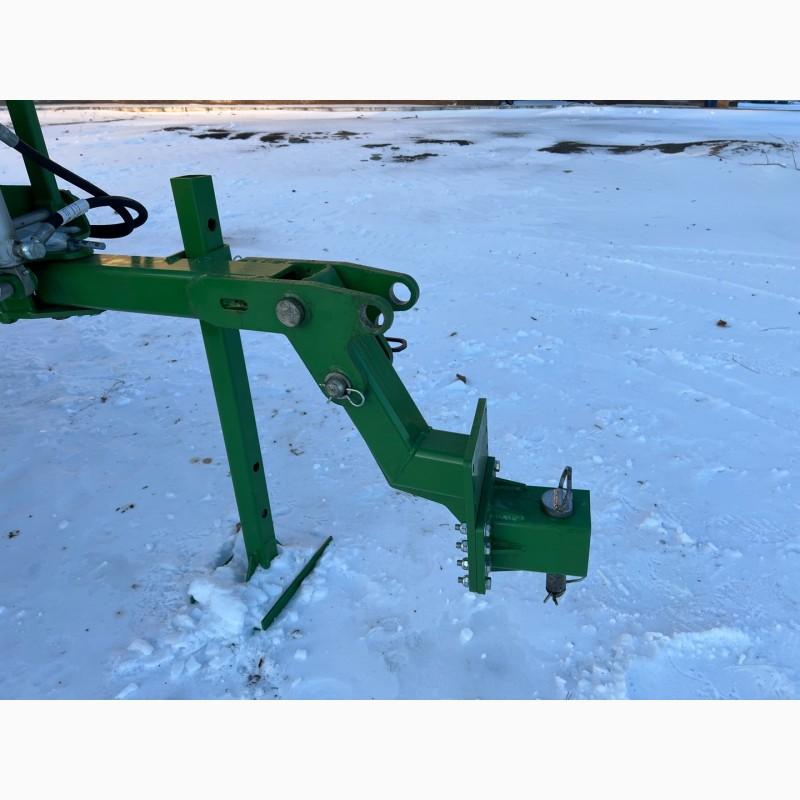

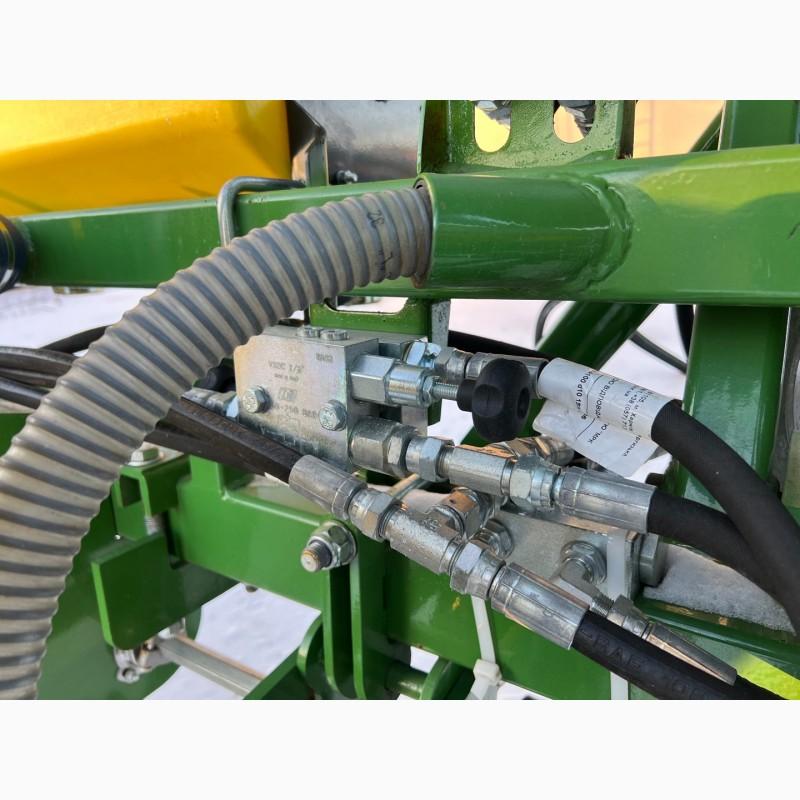

Hydraulic marker system - a separate hydraulic cylinder is installed on each marker. Thanks to this, the process of controlling the marker system by the operator directly from the tractor cab is simplified.
The planter can also be completed:
- the system of application of dry mineral fertilizers
- hydroficated marker system
- a transport device for transporting the seeder in the longitudinal position

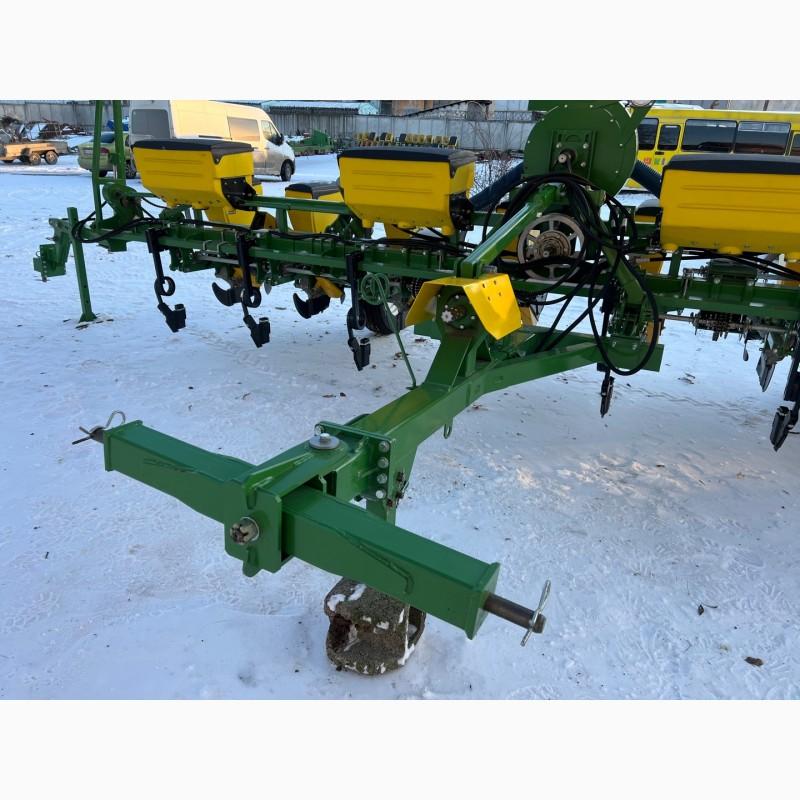

- a towing device (for converting from a mounted to a trailer)
The main technical characteristics of the seeder VPS-8
Number of sections: 8
Planter type: Mounted (optionally converted into a trailer)
Operating speed: 3.6-9 km/h
Working width of capture at row width:
45 cm 3.6 m
60 cm 4.8 m
70 cm 5.6 m
90 cm 5.4 m
Weight: 1275 kg
Capacity of seed bunkers, (total): 161.6 dm3
Capacity of fertilizer bunkers, (total): 180 dm3
Dimensions: 2300 * 6800 * 3010 mm.
