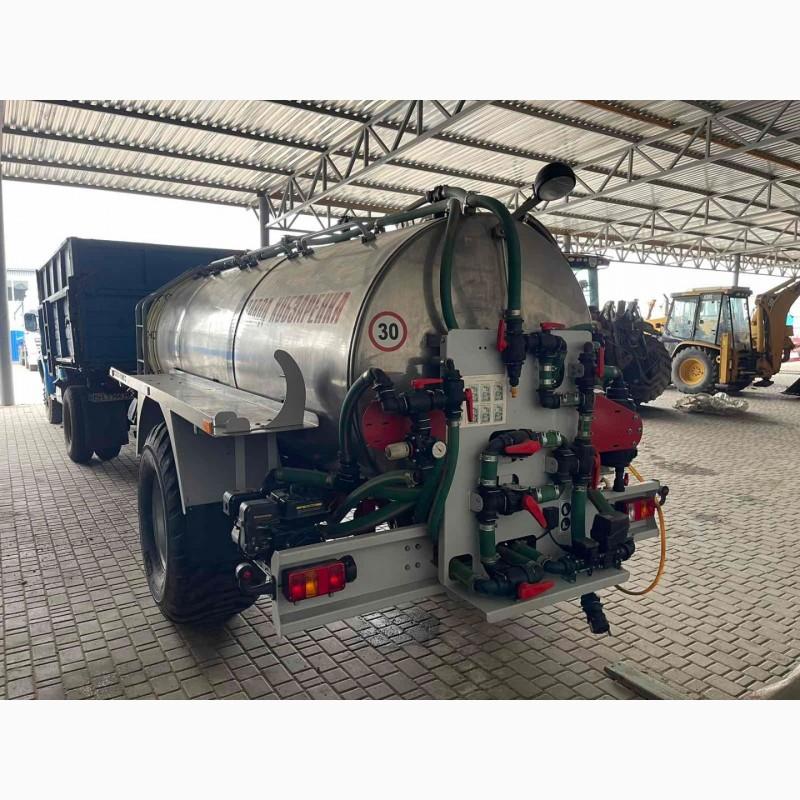

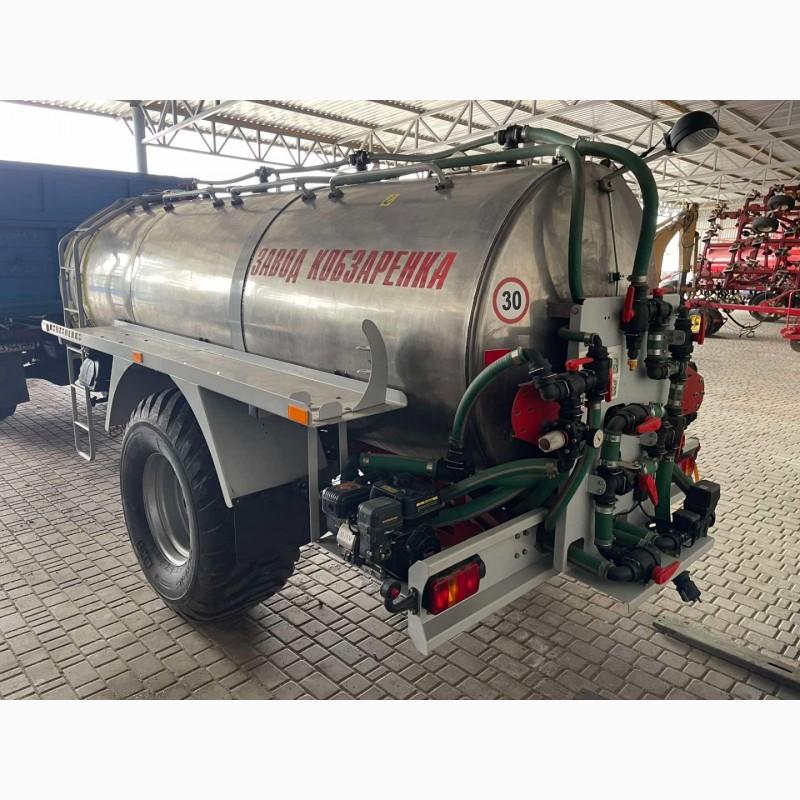

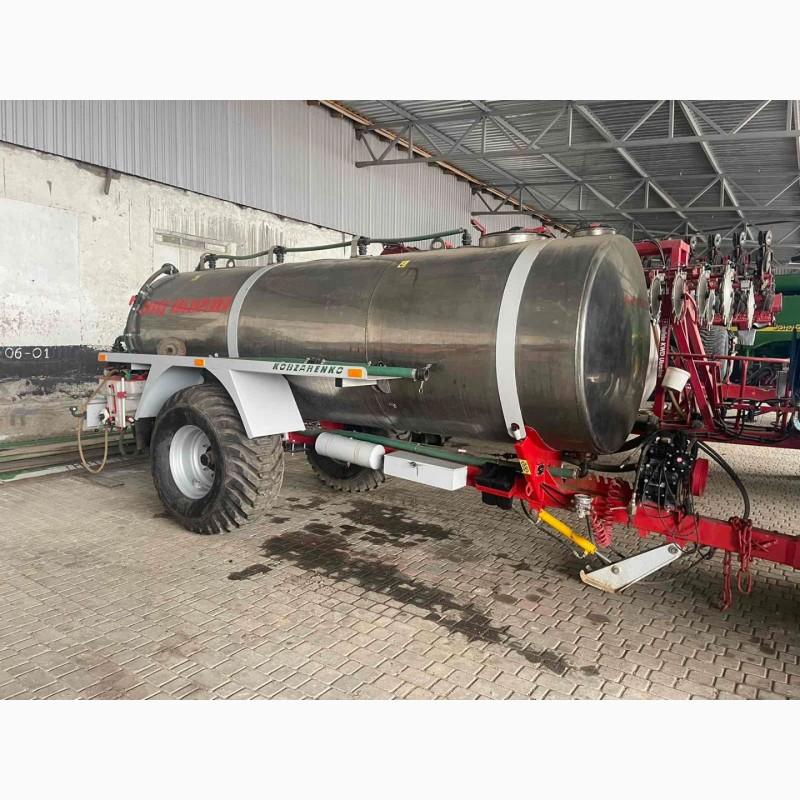

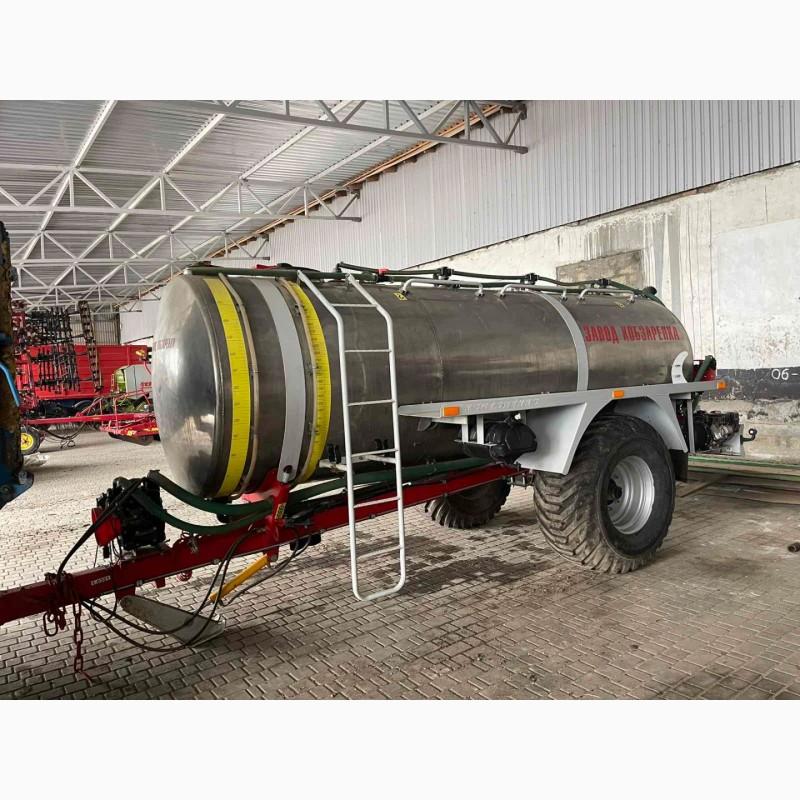

RZS-6 semi-trailer tank for mixing and dosing solution (Bochka), Dnipropetrovsk region.

Tank, volume 6 m3, diameter 1400 mm, divided into two parts - for working fluid (volume 6 m3) and for clean water (volume 0.5 m3), made of stainless metal, cylindrical in shape with a water softener inside.

Technical characteristics:
• stainless steel of high chemical resistance (food grade);
• pneumatic brake system (single circuit, double circuit);
• separate working and washing chambers;
• ADR axles (Italy);
• wheels 550/60-22.5 (allowable load 5.15 t per wheel at 40 km/h).
• Pronar discs (Poland);
• hydraulic drawbar support;
• towing ring with a diameter of 40 mm, 50 mm Scharmüller (Austria);
• mudguards Domar (Italy);
• lighting 12(24)V;
• ladder, platforms for maintenance;(//tractor-service.com)
• counter for recording the amount of liquid pumped in/pumped out; Counter with an electronic valve;
• chemical mixer (35 l.)
•motor pump HYPRO (250 l/min, 2''; 600 l/min, 3'') for pumping/pumping and agitation;
• diaphragm-piston pump AR 135 Bp for pumping from a chemical mixer;
• 2" (3") sleeve for pumping and pumping - 6 m.

The number of sections is 2
The thickness of the metal is 4mm
Application – Mother solution / working solution
The volume is 0.5 + 6 mᶟ
Diameter - 1400 mm
The number of axes is 1
The size of the wheels is 550/60-22.5
Centrifugal pump – Hypro (250 l/min, Ø3) or Hypro (600 l/min, Ø3)
Hose for pumping and pumping 6 m. – Ø2 or Ø3
