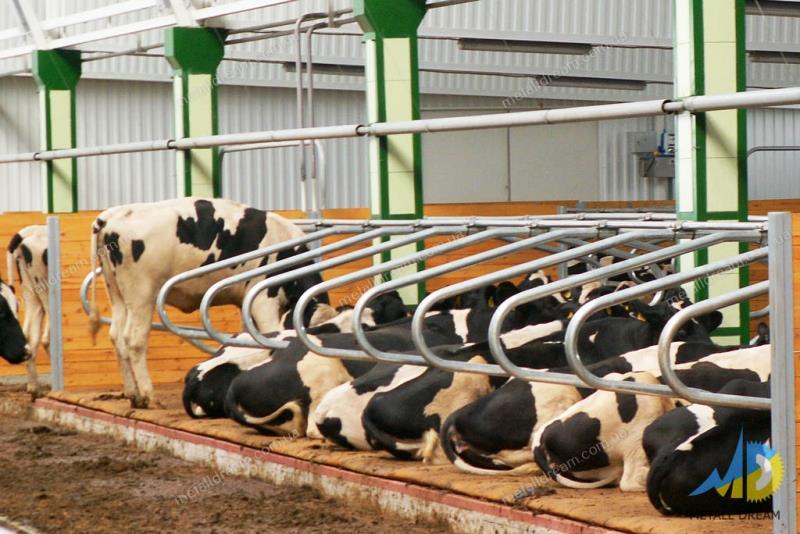

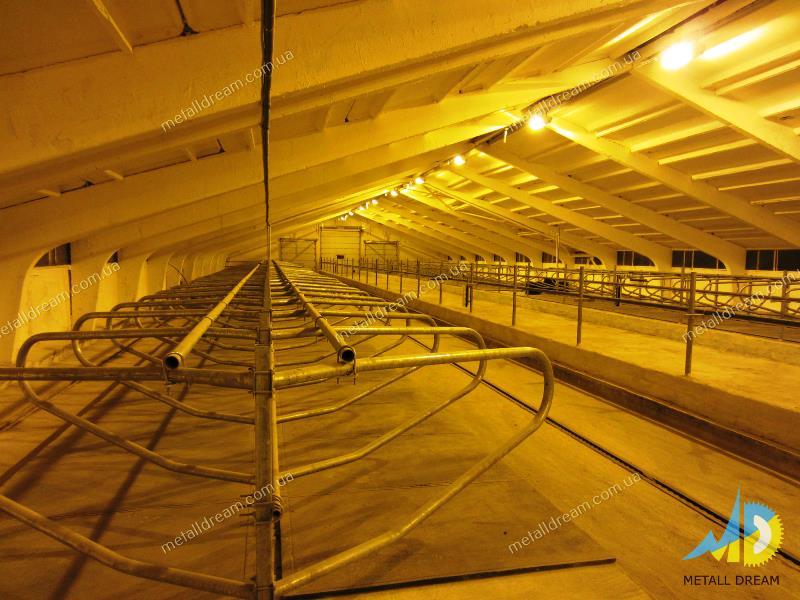

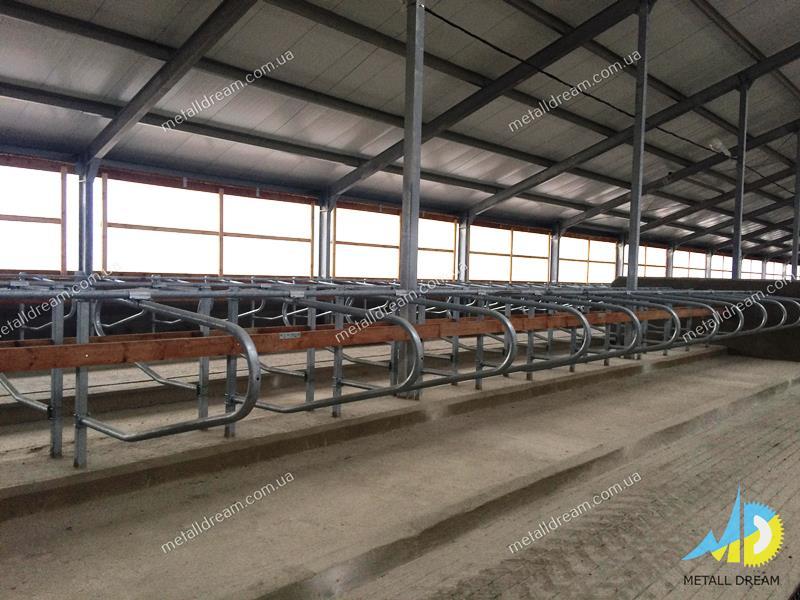

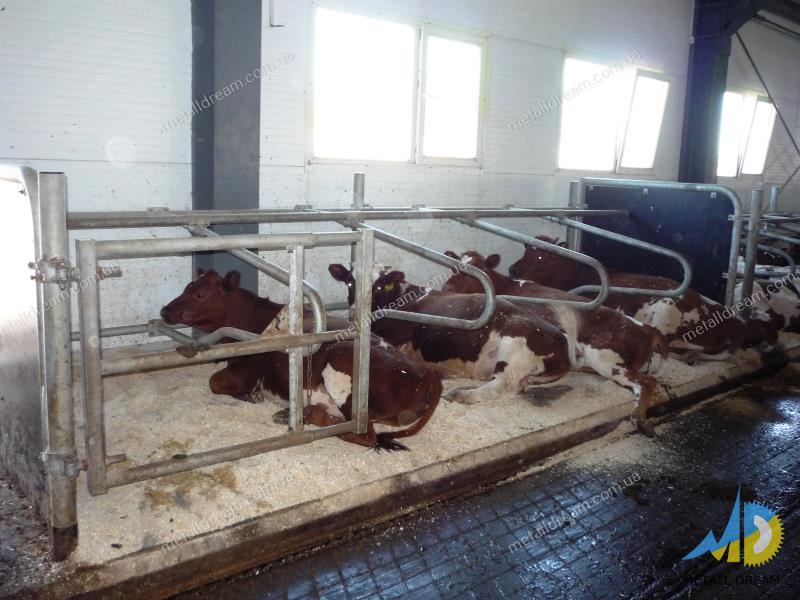

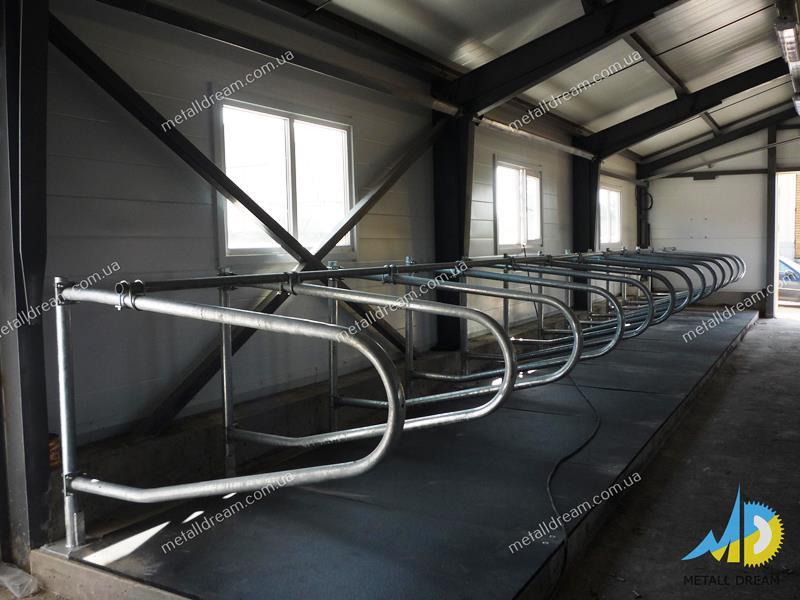

РОЗДІЛЬНИК СТІЙЛА 1-РЯДНИЙ 1РСО

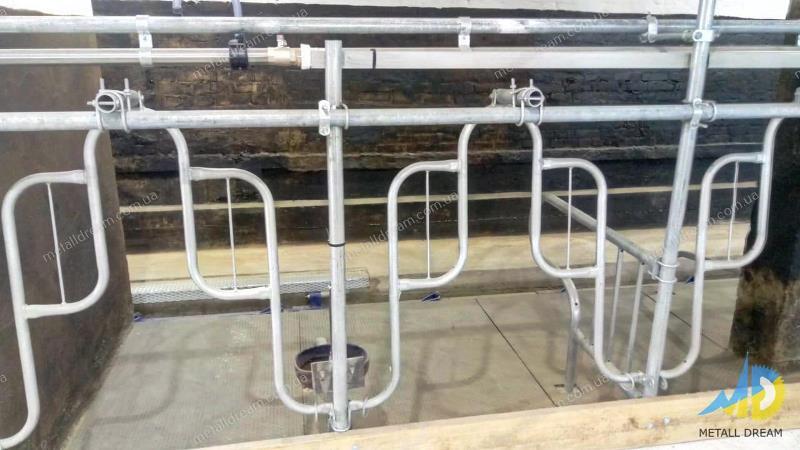

Перегородки стійлового обладнання. Особливості конструкції дають змогу здійснювати кріплення на вертикальну стійку.

Staffing divider 1-row 2rso

Partitions of stall equipment. The design features allow attachment to the horizontal crossbar.

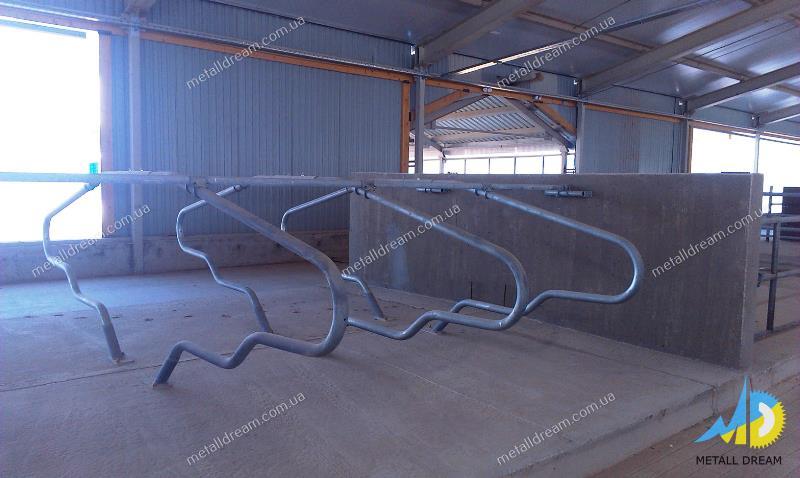

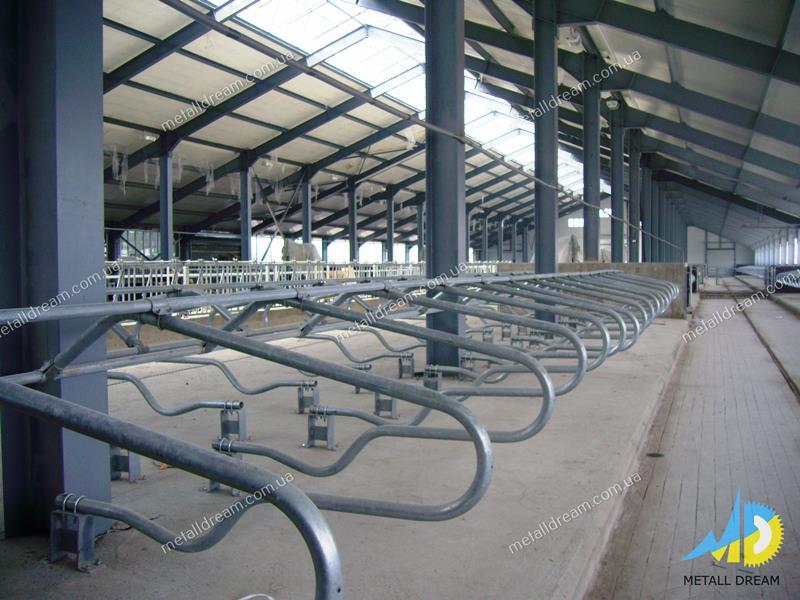

The stall spinner is 2-row 1rSD

Перегородки стійлового обладнання. Особливості конструкції дозволяють здійснювати кріплення на вертикальну стійку.

The stall spinner 2-row 2rSD

Перегородки стійлового обладнання. Особливості конструкції дозволяють здійснювати кріплення на горизонтальну перекладину.

Feed table fence

The approach to the forage table is limited by a grid. The size of its cells depends on the age of the animals. Rods can be arranged directly or diagonally.
Enclosures make it easy for cows to receive feed, and farm staff control and minimize feed loss. There are different options for performing forage table fences: adjustable beam, diagonal feed grilles and hedlocks. To regulate the movement of animals on the barn, the gates, gates and fences of cattle propagations play an important role. And strength of construction.

= Adjustable beam (an over -cattle bar)

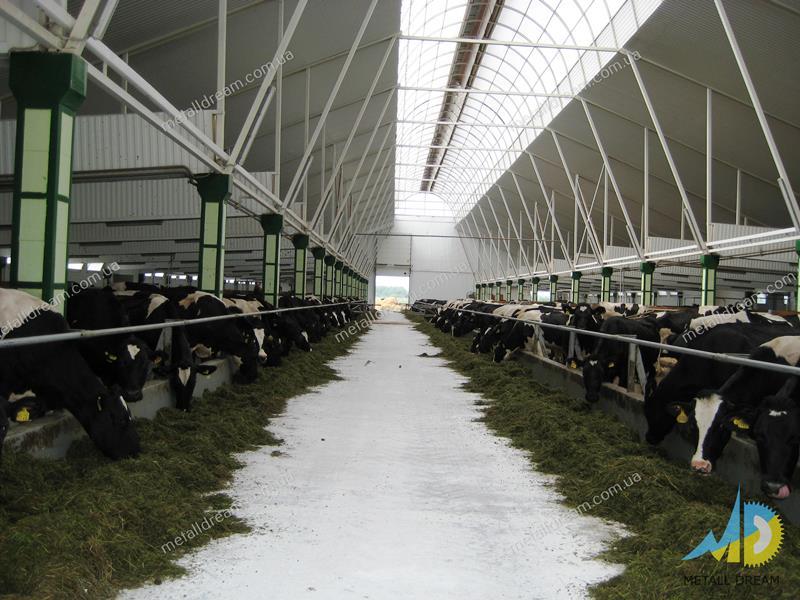

The simplest fence of the forage table is an overhang in the form of a round steel pipe fixed on the racks at a certain height from the surface on which the animals stand. To prevent the animal's tubed with an animal with a bar during feeding, it is put to the forage table, which uses auxiliary brackets, or a special curved beam configuration. Hedlock
(//tractor-service.com)

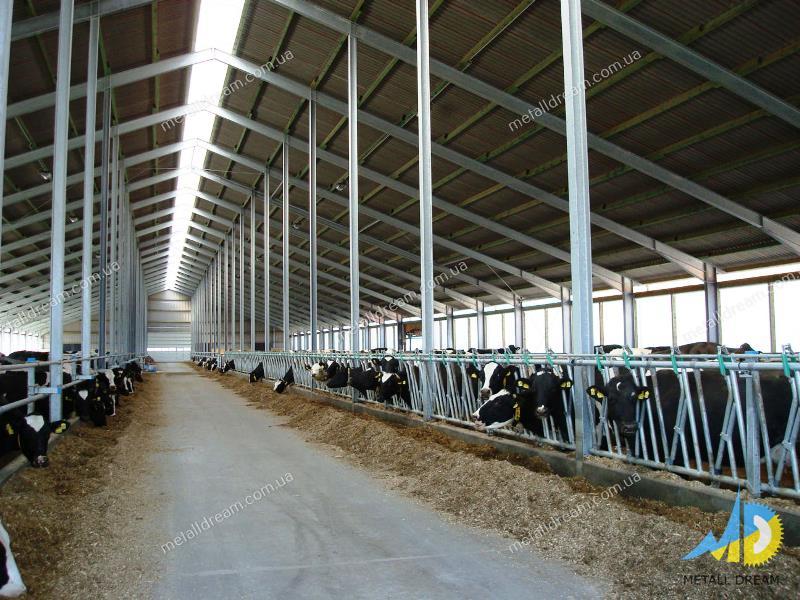

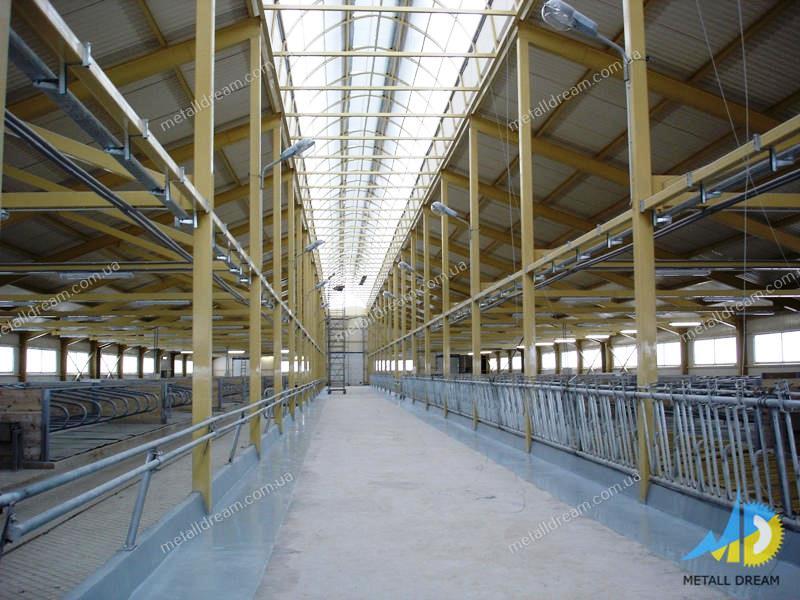

ХЕДЛОК

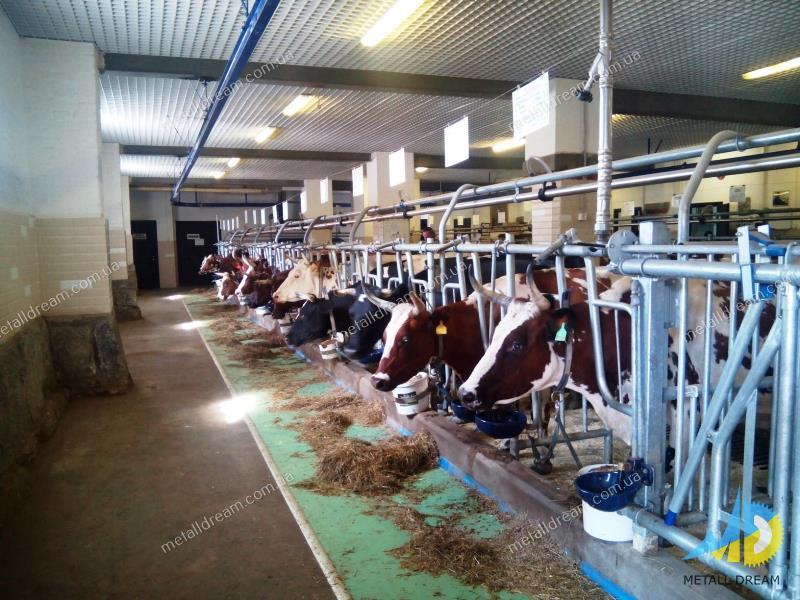

One of the most functional types of fodder table fence is the grille of the "hedlok" animals. These panels, in addition to preventing animals on the forage table and organizing animals along the forage table, can hold them for various veterinary measures. They have a special mechanism that fixes the head of the animal.

- consists of fodder grilles, racks and fasteners.
- The thickness of the zinc coating is 80-120 μm;
- The width of the hole is adjustable. The frame is made of pipe with a diameter of 60.3 mm. The ends of the section are attached to the adjustable tips.

The main advantages

Zinc coating is applied after all technological operations for the manufacture of fodder lattice, which makes it impossible for its mechanical damage in the production process and prolongs service life. Group and individual fixation of an animal.
Можлива групова та індивідуальна фіксація тварини.

The hedlok opens in two directions, the section rises and is easily dismantled. The "safe" position allows you to release the animal, even if it suddenly falls. The reinforced balancers are equipped with a workpiece barrier in any of the positions. The lock of the passage is obstructed by calves=, which are with mothers, to promote the head under the balancer. High level of comfort for the neck of an animal.

The hinged connection of the balancer, equipped with a steel sleeve without a 58 mm carving, prevents the lever from moving. Due to the elastomer system, metal contact with metal does not occur and the balancer returns to position 1 (open) is carried out silently.
= The cervical hole is adjustable with a tube with a coupling clamp, enhanced burrticians, which has oval corners. Fixation on the moving lever is reliable, beyond access of animals, is carried out gently and quietly. Thanks to a special emphasis of composite material, the fixation is carried out on each support of a monolithic moving lever, which also has a hole for individual lock. It is safe to remove the retainer on both the right and left side. Moving lever control lever allows you to maneuver several sections.

ДІАГОНАЛЬНІ РЕШІТКИ

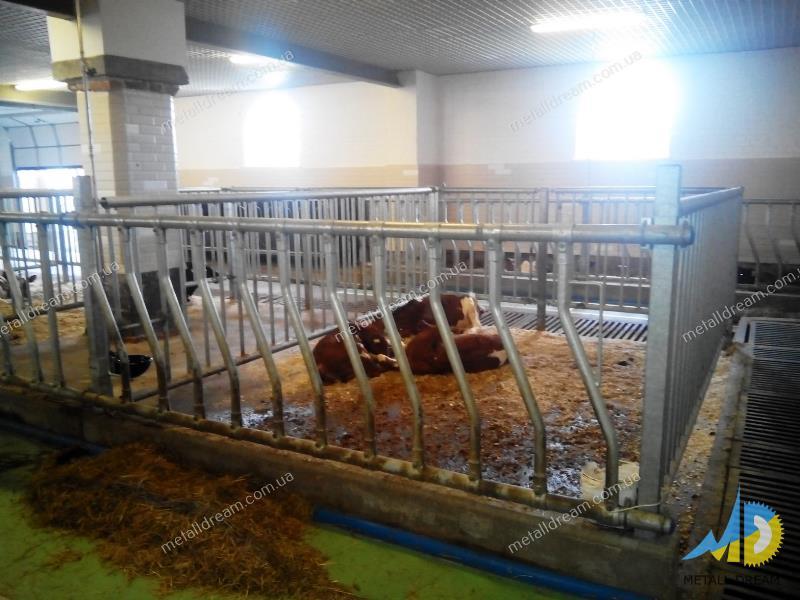

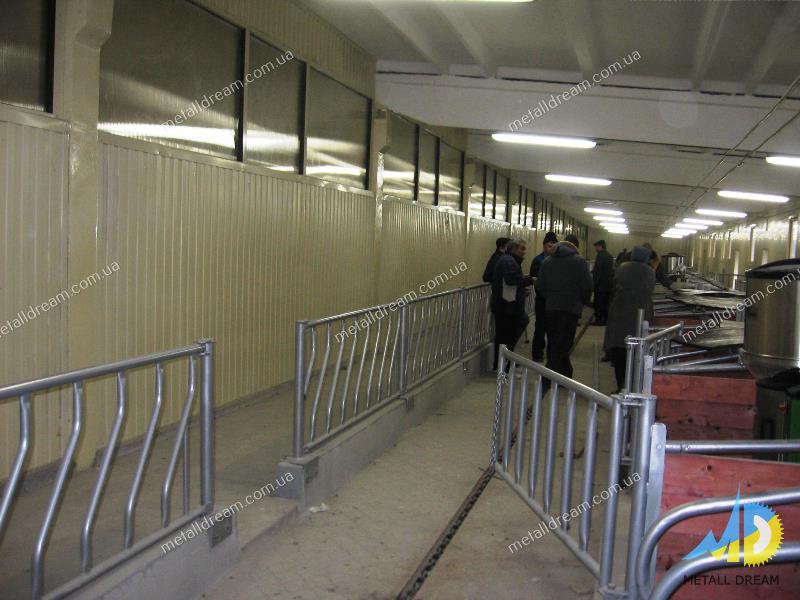

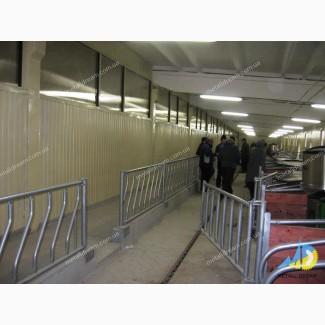

Feeding fodder table with diagonal fodder grates are used for young animals and cattle. If they do not require fixation, then use diagonal feed grates or Z-shaped feed grates. They are simple in placement and reliably prevent the penetration of animals into the forage table, reduce spreading and feed loss. Solutions of the same type can be used in the barn. The size of diagonal cells varies depending on age groups of cattle.

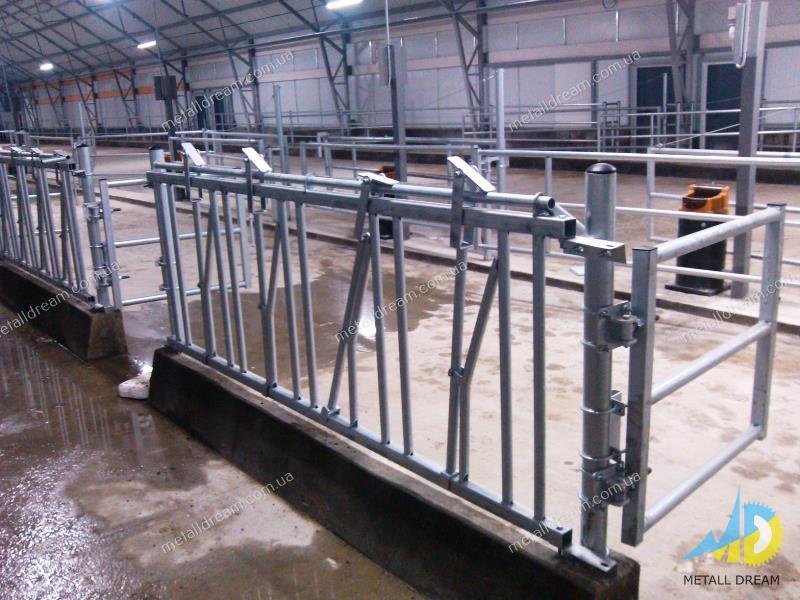

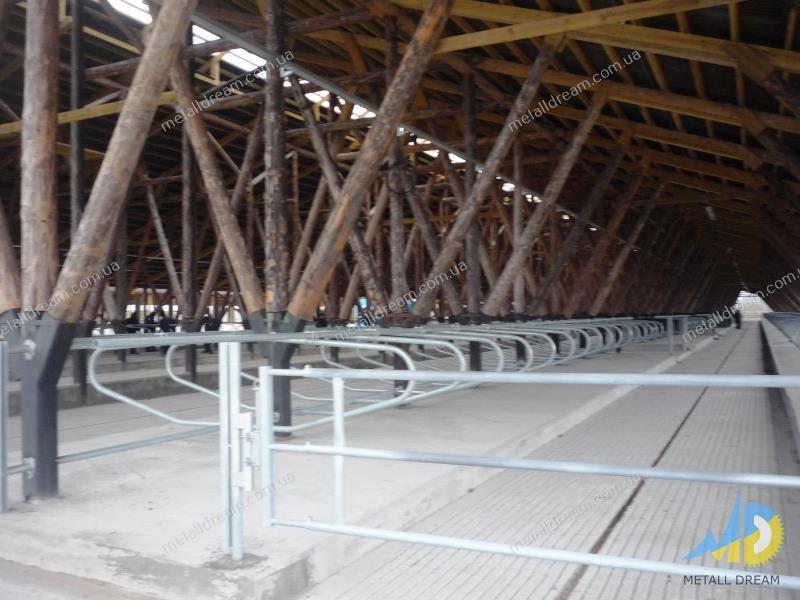

Wickets and fences for cattle

Wickets. They should be strong, but not injure cattle. It is necessary that the closed or open position of the gate is fixed simply and reliably. They are made so that people can easily open them, but animals would not be able to open a gate.

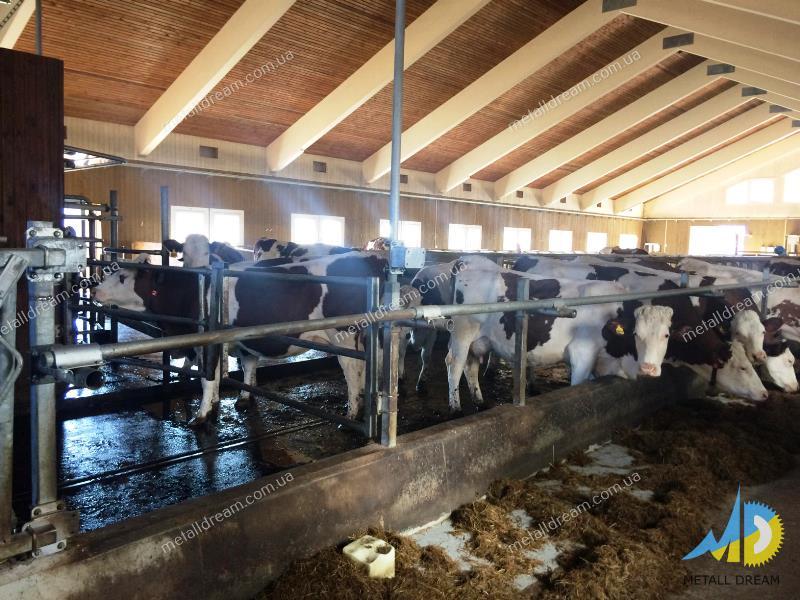

Important elements of farms of cattle that provide the movement of animals from the section to the milking hall and back, to the pasture, walk, are fences of cattle, gates and gates. They should be strong enough to withstand the pressure they put on them cows mass= 600-700 kg, not to mix technological groups and not injure animals in the process of race. Contacts
