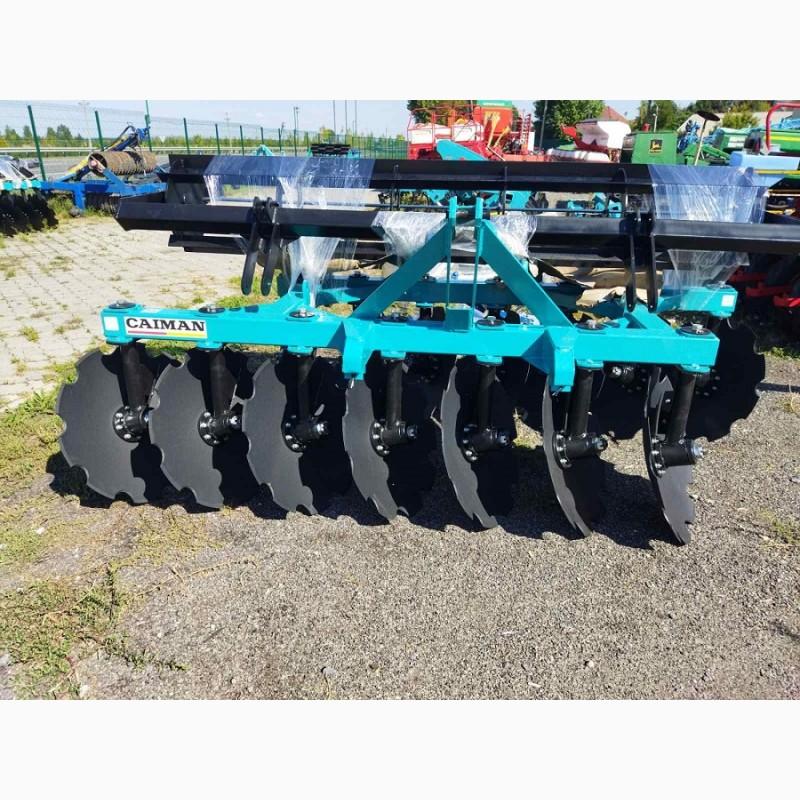

Disk harrow trailed ADP-2.5 Caiman. The ADP-2.5 Caiman disk harrow is designed for tillage of fields with soil rolling and crushing of sticks. . The ADP-2.5 disk harrow ensures uniform distribution of organic fertilizers and post-harvest residues throughout the depth of the cultivated soil layer, which increases the soil's resistance to erosion processes and increases its ability to absorb moisture.
Advantages of the ADP-2.5 disc harrow :
- adjustment of the angle of attack of the discs (3 positions), which allows you to perform harrowing with greater efficiency than on similar harrows without this option;
- Universal design, the customer can use the harrow at his discretion, both in mounted and trailed modifications.
Design features:
- in the design of the ADP-2.5 frame, especially responsible nodes are reinforced compared to similar units;

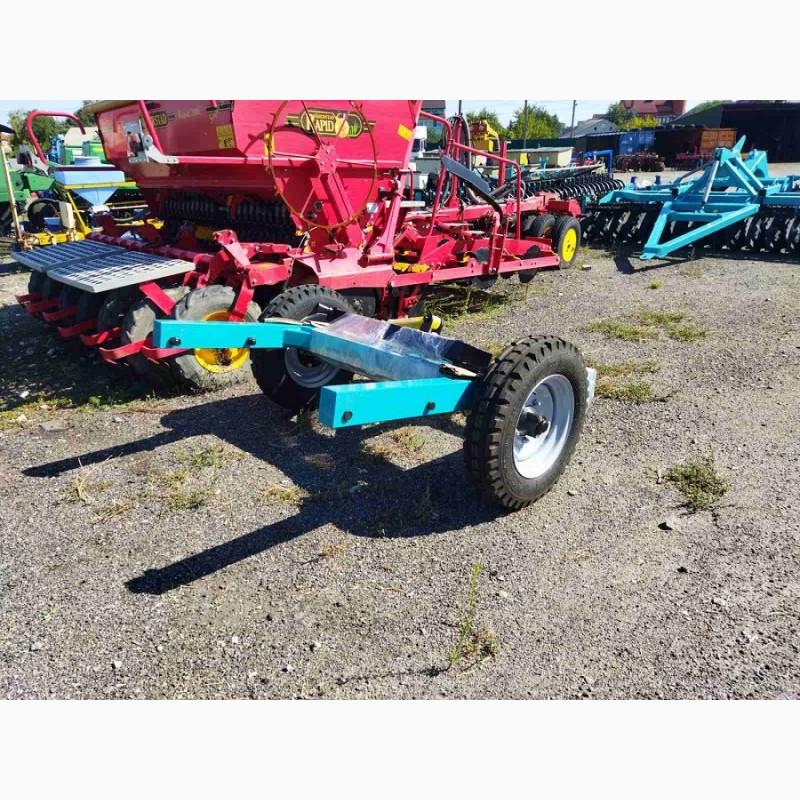

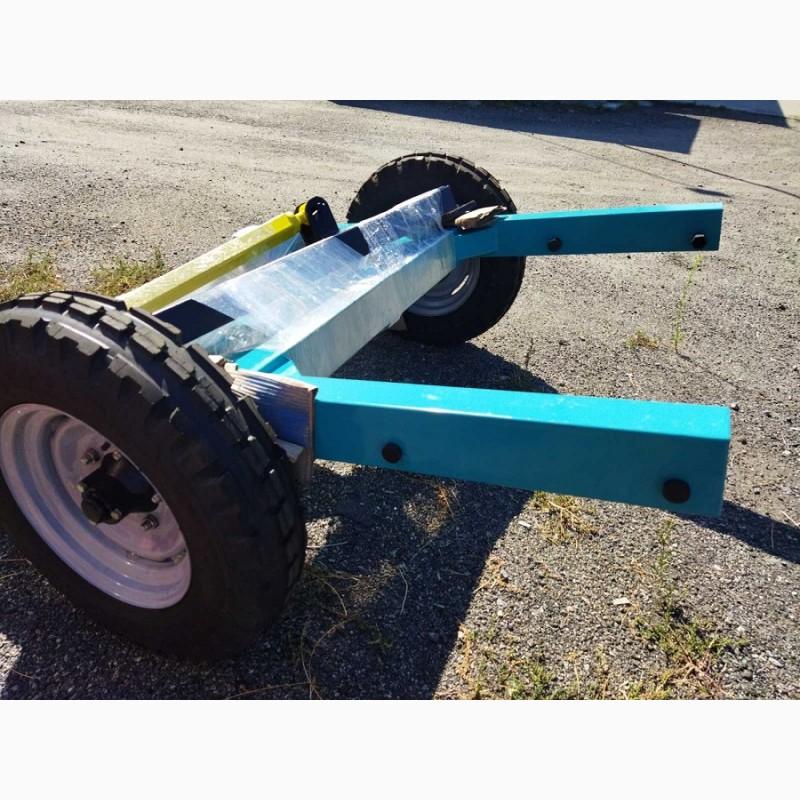

- the design of the ADP-2.5 frame incorporates the principle of universality. With the help of a transport device, the customer can easily assemble the ADP-2.5 trailed harrow from the mounted harrow type ADN-2.5.
- the rack of the working body is installed in the frame in a sleeve that protects the seat in the frame from deformations. In addition, in the place of installation of the rack in the frame, a guide is installed to avoid jamming during the change of the angle of attack of the disk;
- the rack of the working body, made of a circle with a diameter of 60 mm. reliably proven itself in work on clogged and dry soils;

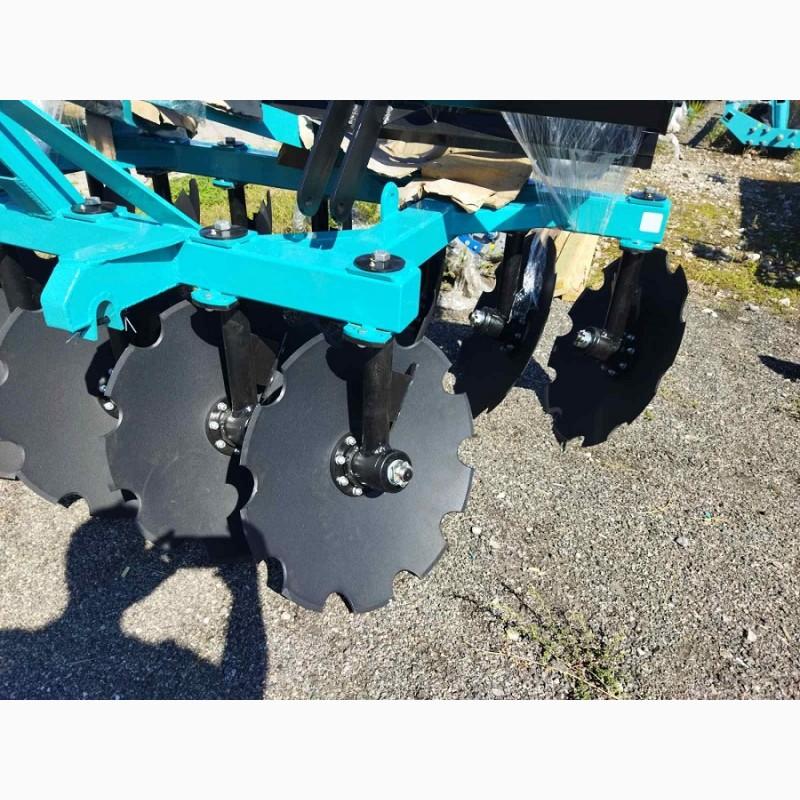

- Quick-release method of removing disks;
- discs made of boron steel;
- adjustment of the angle of attack (3 positions);
- Powder coating.

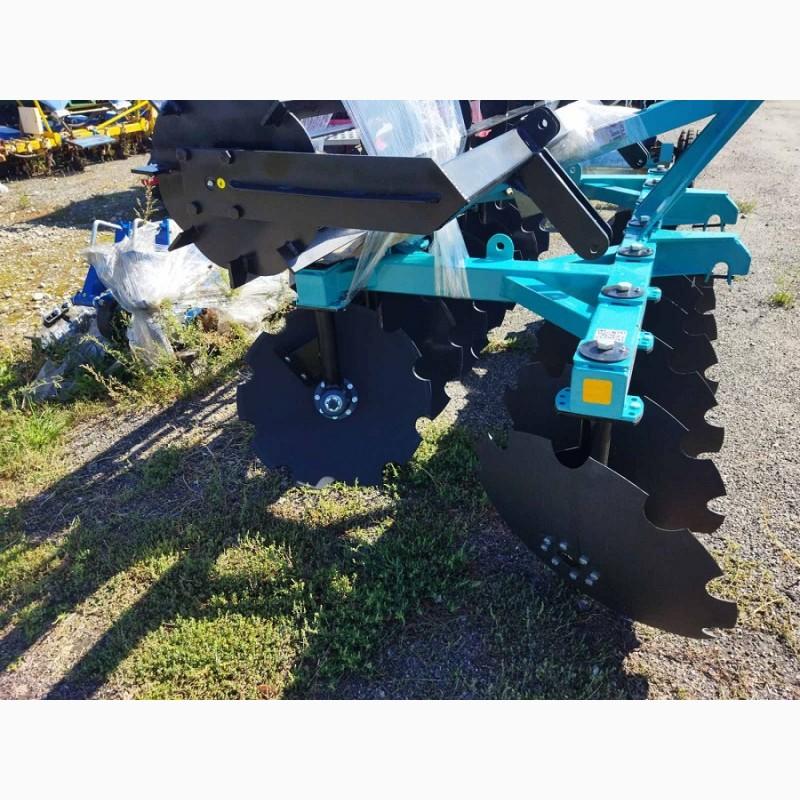

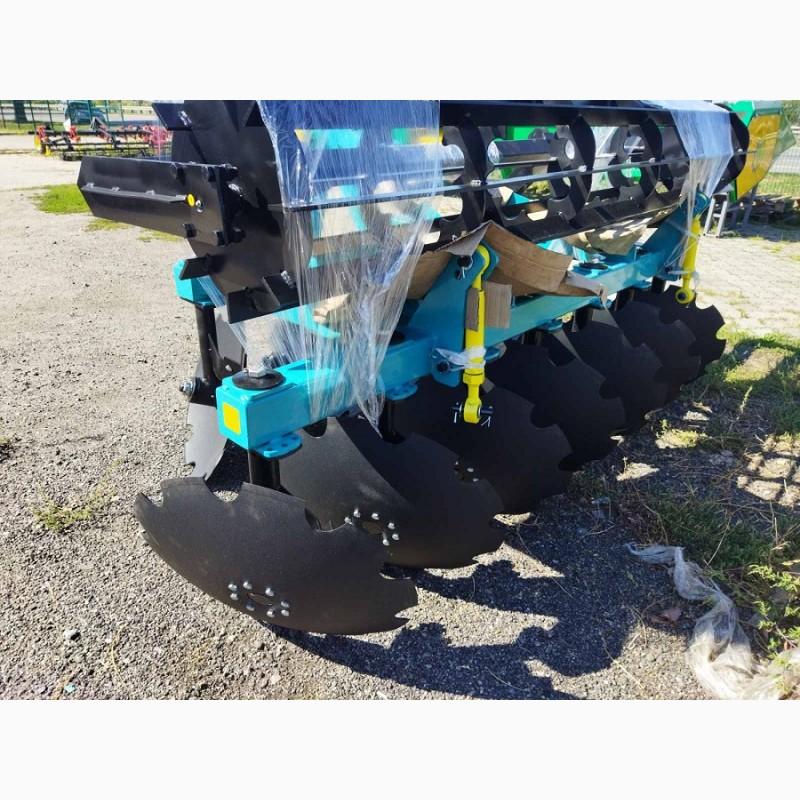

- the following modernizations were made in the design of the roller-crusher, rolling, for more efficient work:
(//tractor-service.com)
- installed strips of 60x6 mm.;
- Brackets reinforced with stiffeners
fastening of the rink;
The equipment comes with a passport with a 12-month warranty.
Technical characteristics:
Parameter Value
Trailer type
Width of capture (m) 2.5
Fuel consumption (l/ha) 7.2-8.5
Productivity (ha/h) 1.8-2.2
Depth of soil treatment (cm) 8-18
Working speed (km/h) 8-12
Transport speed (km/h), slightly more than 20
Weight of the unit, kg. 1100
It is aggregated with tractors with a capacity of at least (l/s) 80
