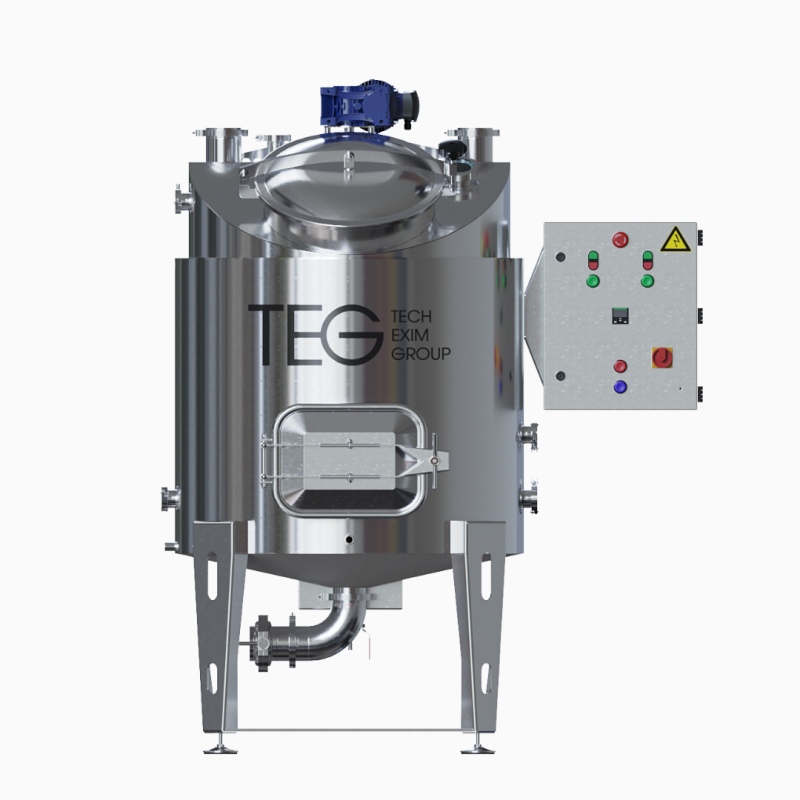

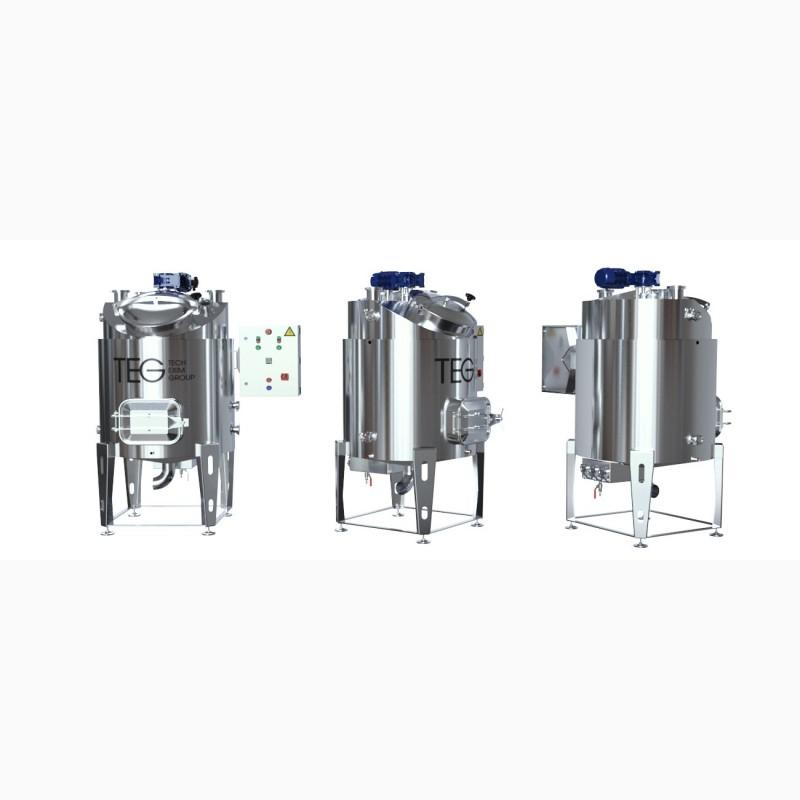

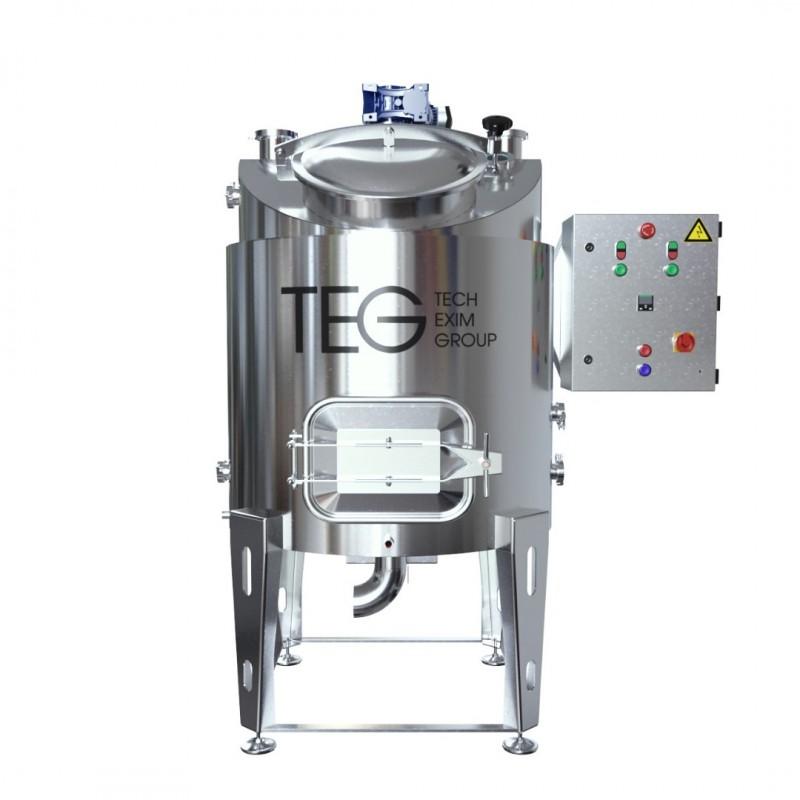

Steam boiler, 500 l, Lviv region.

The steam boiler (PVK) is used for working withgrains and fruit brews, as well as for brewing beer. This design allows you to get a product with maximum aroma and taste qualities, because PVC is twocontainers that are inserted one by one. The shirt is filled with steam or water, and the inner container is filled with raw materials. Both containers are hermetically sealed and have two hatches for easy filling and draining, maintenance and washing.
This model completely eliminates burning, because it is heated by steam. Heating takes place with the help of 3 heating elements of 6 kW each (total 18 kW), installed in an external tank.

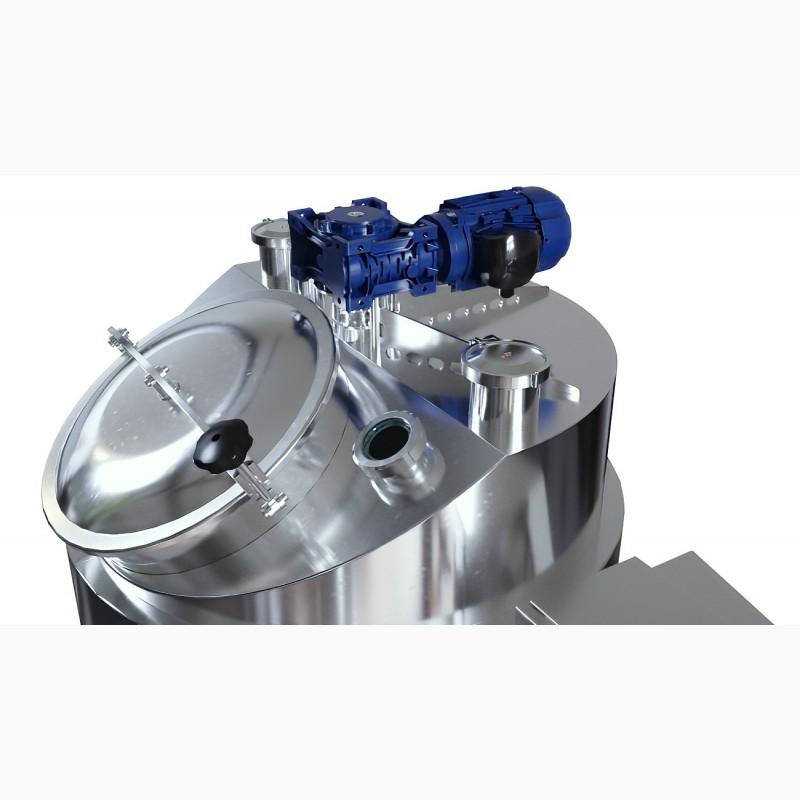

PVC is equipped with flushing nozzles (washing head) with a coupling for supplying a disinfection solution for effective cleaning. The mixer, which is installed inside, is also removable and can be subjected to mechanical washing.
On the outer part of the shirt, the necessary safety, drainage, heating and PVC control units are installed. Also a manometer for measuring pressure in a larger cube. An emergency valve that reduces excess steam pressure. Non-return valve - draws in air and thus regulates the pressure inside the shirt and prevents deformation of the cubes (collapsing).(//tractor-service.com)
The temperature inside is controlled using a sub-regulator. A diopter is installed on the side for visual control of raw materials inside.
A mesh false bottom is provided in the lower part of the main tank.
8" outlet under the distillation column to ensure optimal performance.
If necessary, we can produce in other sizes and with additional functions and systems.
