Harvester
for harvesting sunflowers Sun Plant-7.4
Reaper

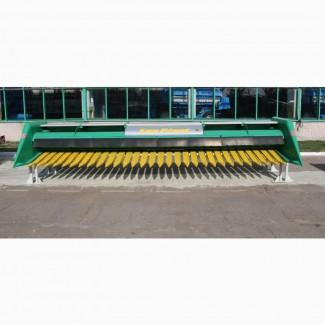

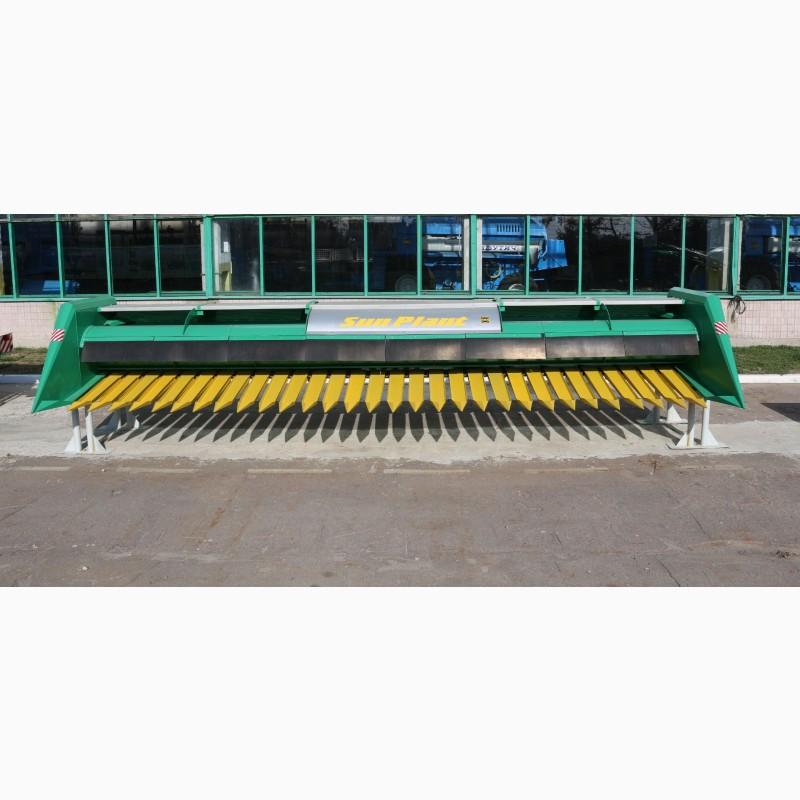

sunflower Sun Plant-7.4
The Sun Plant-7.4 sunflower harvester is a unit that provides a harvesting system with high productivity and no wastage. The harvester allows you to harvest sunflowers in the shortest possible time, which means that it will ensure less dependence on atmospheric precipitation and the quality of the collected material. After the work of the harvester, only stems and leaves remain in the field.
The Sun Plant-7,4 sunflower harvester has design features that help harvest sunflowers in any direction, regardless of the sowing direction, easily penetrating the rows.
The Sun Plant-7.4 sunflower harvester is characterized by high productivity and almost complete absence of losses. It is worth buying a harvester because it favorably differs from similar harvesters of other brands by the presence of rubber-fabric aprons on the protective cover of the reel. Aprons that soften the impact of sunflower baskets on the protective cover and reels contribute to reducing losses.
Technical characteristics. Width of capture - 7.4m.
Productivity, ha/hour - 8.9
Productivity, t/h - 17.8
Working speed, km/h - 12
Mass, kg - 2300
Overall dimensions, m (length / width / height) - 2.35/7.4/1.1
Sunflower harvester Sun Plant-7.4 with a working width of 7.4 meters
Productivity, ha/h
(//tractor-service.com)
8.9
Productivity, t/h
17.8
Working speed, km/h
12
Mass, kg
2300
Overall dimensions, m (length / width / height)
2.35/7.4/1.1
Type of cutting device: segment-finger;
Knife drive gear type: Rolmetal planetary drive
Gear pulley rotation frequency/number of double strokes of the knife, min(-1): 385;385
Type of auger: belt one-way with right and left threads;
Screw rotation frequency, hm(-1):177
Screw diameter, mm: 500
Beater rotation frequency, min (-1): 56
