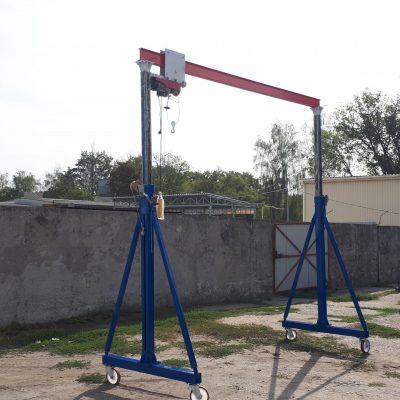

Portal cargo equipment for moving cargo, Poltava region.

The cargo portal is used for lifting and transporting cargo weighing up to 1,500 kg (cargo capacity 2 tons).
Moves only on a flat surface without potholes.
The maximum lifting height is 4.3 meters to the waist hook.
The maximum lifting height when the supports are extended, mm 5000. Overall dimensions of DSHV, mm 5000x2000x4000.
The width of the crane beam, mm 4000.
Minimum lifting height with shifted supports, mm 2 800.
Working stroke of supports, mm 1400.
The number of working positions of retractable supports, 6.
Step of support positions, mm 200.
The method of extending the supports of the retractable 2-piece winch is manual. Load capacity at maximum lift, kg 2000.
Weight of the assembled product, kg 345.(//tractor-service.com)
Set:
1. I-beam #18 - 4 meters 1 pc.
2. Retractable rack 2 pcs.
3. Telescopic support 2 pcs.
4. Support beam 2 pcs.
5. Raskos 4 pcs.
6. Tal electric СD1 LIFTEK 2.0 12m with a mechanized cart 1 pc. 7. Manual cable hoist 2 pcs.
8. Fixing finger 2 pcs.
9. Wheel 4504-M-200-B swivel with brake 4 pcs.
10. Beam height extenders 1000 mm - 2 pcs. (special order)
Painting: alkyd primer-enamel, alkyd enamel.
The warranty is 12 months from the moment of shipment. There is a guarantee from the manufacturer according to the product passport.
