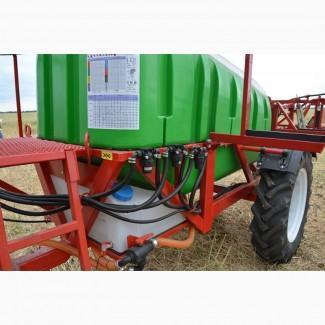

Sprayer "Bogdan 2500" and "Bohdan 2500-M", Poltava region.

Sprayer "Bohdan 2500" and "Bogdan 2500-M"

Purpose ofBOGDAN sprayers-2500 - surface spraying with liquid and other fertilizers, as well as pesticide treatment of field crops.

The sprayer kit includes - Italian equipment, has a hydraulic boom of 18m-21m volumetric construction, a 2500 liter tank, possible options for installing a computer and a mixer, as well as additional equipment with 3-position nozzles and a navigation system that provides uniform coverage without gaps.
The hydraulic rod of volumetric construction, 18-21 m long, is designed for optimal distribution of loads, with a pendulum stabilization mechanism and a hydromechanical vibration damping system.
The rod and frame have reliable protection against corrosion and are powder coated.
Nozzles are installed on stainless steel collectors, they are completely protected from damage.
The BRAVO 180 computer helps save fuel and chemicals, which increases the productivity of the sprayer.
The "Night illumination" option allows you to conveniently use the sprayer at night.
LED lighting facilitates maintenance and transportation of the sprayer in low light conditions. lighting
Technical characteristics:
Type of sprayer: trailed
Typepump: diaphragm piston
Pump performance: 160 l/min.
Type of sprayers: slotted
Number of sprayers: 36 pcs.(//tractor-service.com)
Working pressure: 2 - 6 atm.
Working width of capture: 18 m
Capacity of the main tank for the working fluid: 2500 l
Capacity of the tank for clean water: 150 l
The rate of consumption of working fluid: 70 - 400 l/ha
Sprayer weight (structural): 1100 kg
The weight of the sprayer (with filled tank): 3600 kg
Overall dimensions in transport position (LxWxH), mm: 5500x2700x2500
Wheel track: 1400 - 1800 mm
Ground clearance: 570 mm
Aggregated with tractors, k.s. - from 80
Warranty - 1 year

Cost:
- Bohdan - 2500 - 18 m (basic equipment) - UAH 464,640.00. with VAT
- Bohdan - 2500 - 18 m (Mixer + BRAVO 180 computer) - UAH 612,480.00. with VAT
- Bohdan - 2500 - 21 m (+computer BRAVO 180) - UAH 675,840.00. with VAT
- Bohdan - 2500 - 21 m (+computer BRAVO 400) - UAH 802,560.00. with VAT
