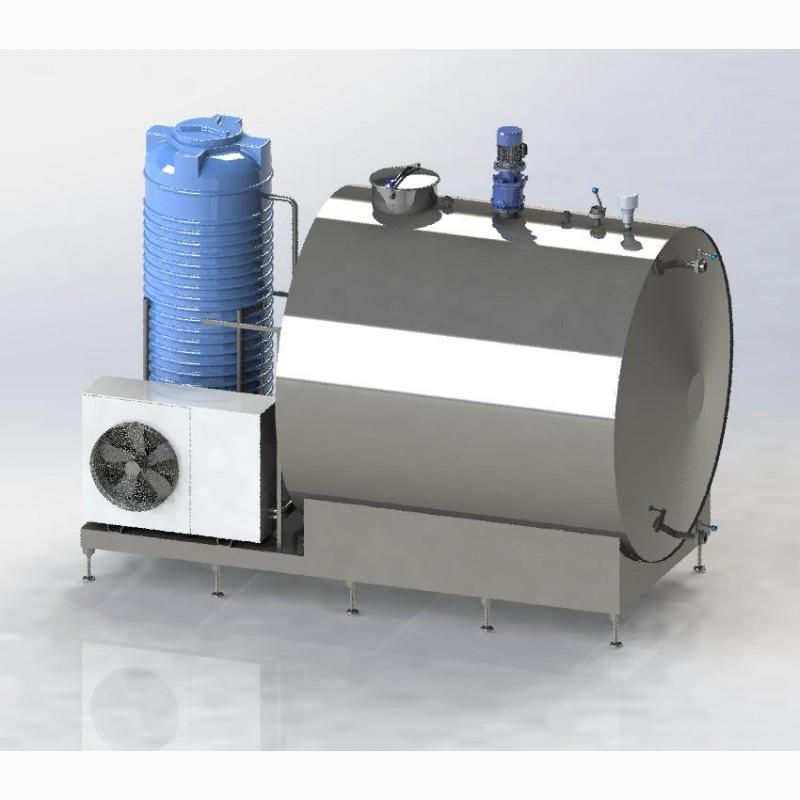

Milk cooler 10,000 l, Kyiv region.

Total volume - 12.4 m3
Working volume - 10m3
Container material - AISI 304, 4mm
Cladding material - AISI 304, 1.5 mm.
Thermal insulation - PPU 100mm
Stop valves - NIOB, AISI 304, 150
Миючі головки - NIOB, AISI 304
Cooling speed 4000l - 4 hours (from +36С to +2С)

Production of horizontal and vertical tanks for cooling and storage of milk to order, with a volume of up to 30,000 liters.
Automated with a control panel.
(//tractor-service.com)
Advantages of the solution from Eldi Group Company:
We use only European stainless steel, NIOB Fluid valves, Italian Motovario and Speroni gearmotors.

1) A new tank will work for at least 30 years without the need for repair or replacement. Second-hand containers, even from Europe, have already served their time and begin to leak freon into milk two to three years after repair.
2) The possibility of freon getting into milk is completely excluded - thanks to the use of propylene glycol as a refrigerant. Even after 50 years of operation.
3) Electricity consumption during operation is reduced by 60% in general compared to freon, which is explained below:
4) Cooling jacket - unlike freon ones, where the contact of cold is only on a small area of the bottom, it goes all over the container, which speeds up cooling, makes the cooling process uniform and saves electricity by up to 30% for cooling milk from +36С to +2С.
5) Thermal insulation - we foam with polyurethane foam with a layer thickness of 100 mm. . This completely excludes the influence of external temperature and reduces electricity consumption by 70%-80%.
6) Energy efficiency and energy independence – after cooling the milk for 3-4 hours to a temperature of +2C, with the system turned off, the milk temperature PER DAY will rise to a maximum of +4C - +5C (at a daily external temperature of +22C at night to +30C during the day). That is, to maintain the set temperature on the control panel, minimum energy consumption.
It's not scary to turn off the lights. There is no need to connect to an electric generator. 1-2 power ons per day are sufficient.
7) ) Individual volume, geometry and capacity are calculated for your one-time hope, the number of milkings before the shipment of the product, under the limitations of your premises. You get exactly the solution you need and don't overpay for extra volume or excess power.
8) Automated washing thanks to rotary washing heads. Coverage of 100% of the tank and stirrer surfaces. The human factor is completely excluded.
Additionally, you can order a mobile SIP-station or SIP-pump.
