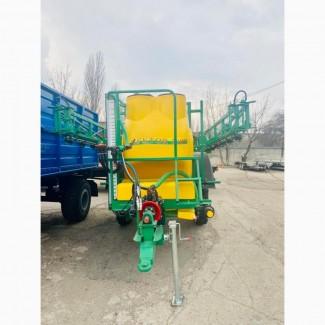

Trailed sprayer 3000 l boom 21 m, Kirovohrad region.

All sprayers are equipped with Italian equipment from Arag, , Imovilli pompe, nozzles, hoses, filters,pump).
Delivered in assembled form, complete with cardan shaft.
Technical characteristics:
Productivity in 1 hour of prime time - 19.2 - 28.8 ha/year;
Tank capacity - 3000 l;
Working width of capture - 18, 21, 24 m;
The flow rate of the working fluid is regulated within the range of - 70 - 400 l/a.
Working speed - 8 - 12 km/h;
Supplypump - from 160 to 250 l/min;(//tractor-service.com)
Working pressure - 1.5 - 8.0 atm;
The height of the location of the sprinklers from the surface of the earth is adjustable in the range of - 0.5 - 1.8 m;
Ground clearance - 0.75 m (tyres 9.5 r 42)
The tank of the sprayer has a convex shape for complete emptying of the liquid with stable operation of the pump, a partition is placed in the middle of the tank for the strength and reliability of the tank.
All tanks have containers for flushing the system, a self-priming mechanism.
The sprayer boom is designed and patented by the manufacturer, completely
hydraulic (parallelogram mechanism) with a vertical frame, a stabilization mechanism, support brackets. Lifting height up to 1.8 m, lowering up to 0.5 m. The boom has an effective hanging mechanism, in which the vibrations of the sprayer in the vertical plane are transferred to the vibrations of the boom in the horizontal plane, thanks to which high uniformity of processing and high reliability of boom operation are ensured.
The volume sprayer boom, raising and lowering, folding and unfolding is carried out using the hydraulic system from the tractor cab. Fixation of the position of the rod in the unfolded state is carried out with the help of hydraulic locks
Plates made of a material with an ultra-low coefficient of friction are installed on the bar in places of possible abrasion.
All sprayers can be equipped with additional equipment at the request of the client:
