СЗ 3, 6, Odesa region.

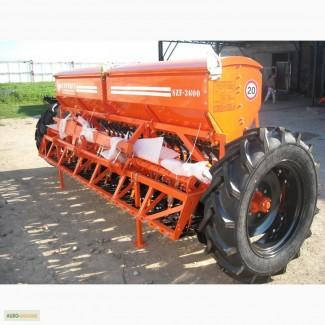

The SZF-3600 seed drill is designed for regular sowinggrain seeds (wheat, rye, barley, oats), leguminous crops (peas, beans, soybeans, lentils, beans, flax, chickpeas, lupins) with simultaneous application of mineral fertilizers.

Advantages of SZF-3600 planters

- reinforced central beam of the frame (80x80), eliminates unit deflection;
- the volume of the bunker is increased to 1.0 tons.
- powder (detail) painting of the bunker significantly increases its service life, protects against corrosion;
- widerubber size 12.4R28 evenly distributes the load of the unit on the soil;
- an offset coulter is installed - prevents clogging of coulters with weeds and harvest residues, reduces traction resistance, allows working on wet soils without soil sticking to the coulter.
- the single design of the unit ("coiler and rolling roller") allows you to adjust the coulter to a certain depth of seed placement with an interval of 1 cm. Maintaining the parameter of the depth of seed placement affects uniform germination and increased productivity.

To order, the planters are equipped with a transport device, which allows them to be moved on general purpose roads without the use of additional means of transport.

The seeder is equipped with various coulters and sets of sealing working bodies, thanks to which it can be converted from one version to another in the conditions of the farm.
SZF 3600 — intended for row sowing, equipped with two-disc coulters and finger wrappers;
SZF 3600-04 — for row sowing, equipped with two-disc two-row coulters, finger wrappers;(//tractor-service.com)
SZF 3600-06 — for row sowing, equipped with two-disc single-row coulters and rolling rollersrollers.

The width of capture m 3.6
The number of lines pcs. 24
Width between rows cm 15
Sowing rates: kg/ha
- for seeds 15-400
- for fertilized 25-200
The depth of planting seeds and fertilized mm 40-80
Working speed km/h 9-12
Productivity ha/h 3.2-4.3
Hopper capacity: dm3
- for seeds 600
- for fertilized 400
Mass kg 1380±40;
It is aggregated with tractors with a power of hp. to 85
