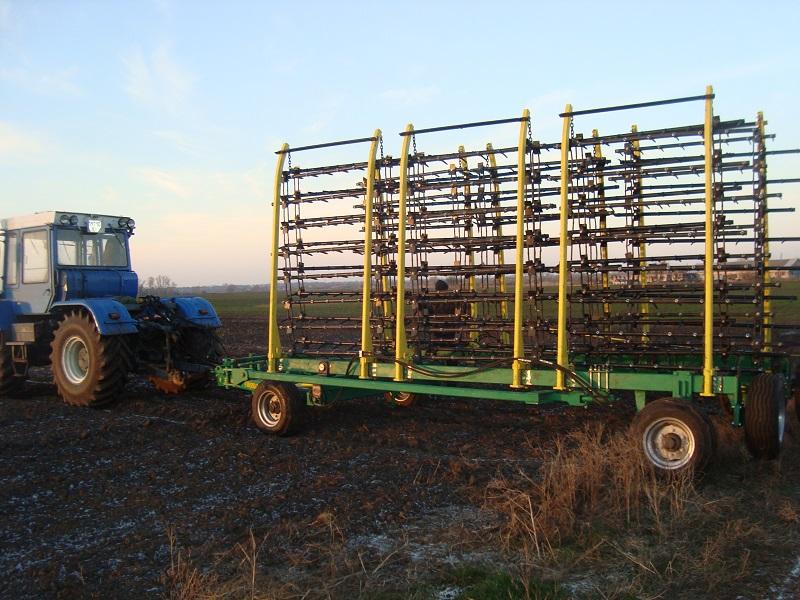

Zubova trailing harrow wide BSHN Solomiya is a universal unit for tillage, which has tremendous efficiency in terms of productivity and quality of work. The BSHN trailing harrow is intended for surface and deep loosening of the soil, leveling the field surface, contributes to the destruction of the soil crust, prevents the soil from drying out and prepares the fields for further agricultural work.
The working body of the BSHN trailing harrow is a knife-shaped tooth, which is fixed on a hinged frame and has a rhombic cross-section, which, in comparison with the square teeth of harrows, which have been used for more than 50 years, allows to significantly reduce the traction resistance of the entire harrow. And this, in turn, allows you to increase the width of capture and the overall productivity of the unit while simultaneously reducing the costs of PMM and the specific costs of maintaining the tractor per unit of cultivated area. The frames on which the teeth are located have a hinged structure, so they easily copy the topography of the soil, and the significant load on each tooth forces it to perform its direct function - tillage without digging. In addition, the hinged design of trailing harrows allows you to cope well with any amount of plant residues, even straw bales, in which heavy disc harrows are jammed, will be perfectly distributed over the field surface even after one pass. Even distribution of residues is in the future the guarantee of higher quality work of units that will work after the harrow - cultivators and
seeders, and here it is not necessary to convince anyone that the future harvest is directly dependent on the work of
seeders.
To adjust the degree of impact on the soil and plant residues, it is possible to set two positions of the tooth - in active and passive mode. The working depth of tillage is 3-6 cm, which helps a lot, especially in spring. You can leave the field much earlier, because unlike the pre-sowing cultivator, the trail harrow is not so sensitive to soil moisture, there is simply nothing to stick and clog. Therefore, by timely closing the moisture and tearing off the crust, you will increase your future harvest even more.
Due to maneuverability and good transportability, you can quickly move from field to field. To assemble and disassemble the harrow, the tractor operator does not need additional help, and the time of transfer from the transport position to the working position takes 3-5 minutes. Technical characteristics of the trailing harrows of the Solomiya BShN:
BSHN-7 BSHN-11 BSHN-14 BSHN-17 BSHN-21 BSHN-24
(//tractor-service.com)
Productivity per 1 hour ha/year 5.6-7 8.8-11 11.2-14 13.6-17 16.8-21 19.2-24
width of capture m 7 11 14 17 21 24
working speed km/h 8-10 processing depth see 4-10
Number of working sections pcs 8 12 16 20 24 28
They are aggregated with tractors hp. 80-120 150-170 170-240 280-300 300-320 380-420
Weight kg 2100±50 3200±50 5600±50 6550 ±50 7500±50 8500±50
