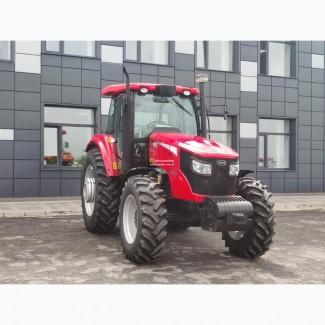

Tractor YTO - NLX 1304 (year of 2022), Kyiv region.

The defining characteristics of the YTO NLX 1304 tractor are its reliability, economy and versatility. These tractors have a capacity of 130 hp. equipped with a double-action clutch from the leading manufacturer in Germany - LUK. The engine, manufactured under PERKINS (Great Britain) licenses and technologies, has a large torque, is capable of overloading, and has a low specific fuel consumption. The gearbox, manufactured using Italian technologies (FIAT), has a rational design and a high efficiency ratio.

Model: YTO - NLX 1304
Engine: Diesel, 6-cylinder with water cooling and preheating
Working volume, l: 7.4
Power, kW (hp): 88.2 (130 )

Nominal revolutions, rpm: 2300
Max. torque, H451 (at 1650 rpm)
Torque reserve, %20-25
Specific fuel consumption, g/(kWh)215 +/-5

Air filter: Two-stage, with paper elements and clogging alarm from Donaldson
Fuel filtration system: Filter-separator for poor quality fuel + 2 fine filters
Clutch: LUK (Germany), single disc, double action, diameter 12”
KP: type/ manufacturer Mechanical / YTO (FIAT AGRI license)
Transmission: number of forward/reverse gears 12 forward / 4 reverse (with synchronizers)
Forward/reverse speed range, km/h: 2.3-30.6 / 5.0-14.3
Hydraulic system: Open type / separate (depending on configuration)
Hydraulic system: typepump/drive Gear pump / with engine drive
Hydraulic system: hydraulic pump performance, l/min
45 (60 - to order)
Hydraulic system: number of hydraulic outlets 3 pairs (in part 1 with flow regulation)
GDP: type Rear, independent with synchronizer(//tractor-service.com)
GDP: revolutions, rpm540 (6 slots)/1000 (8 slots)
GDP: power, ksne less than 78.32
Attachment: category/number of hydraulic cylinders Category II / 1 central + 2 additional hydraulic cylinders
Load capacity of the attachment, kg4500

Functions of the hinge Force adjustment, position adjustment, floating position
Differential lock: Hydraulic
Turning on the front axle: Mechanical
Steering: Hydraulic, independent
Size of front/reartires: 14.9-26 / 18.4-38
Track adjustment: front/rear, mm1822-2153 / 1662-2262
Turning radius, m: 7
Working brakes: Disc, in an oil bath, with a hydraulic drive
Parking brake: Mechanical
Fuel tank capacity, l: 165 (115 main + 50 additional) / 150 (with new cabin)
Basic dimensions: (LxWxH), mm4770x2330x2960
Wheelbase, mm: 2688
Clearance, mm: 470
Operating weight, kg: 4757
Weight with counterweights, kg: 6165
Distributionweights: front/rear axle, %: 46%/54%
Including counterweight weight, kg: 10x50 front, 6x50 rear wheels

Package of additional cabin equipment (included in the price) Air conditioner, cabin filters, heater, radio with MP3 player, 12V socket, sun shade, comfortable CRAMMER seat (with seat belt), additional seat, fire extinguisher bracket, thick continuous noise insulation mat, completely new plastic interior trim. Fuel system filter-separator; two-stage "dry" air filter with clogging alarm; synchronized gear shifting; 11"LUK clutch; double additional hydraulic cylinders of the hitch; box for tools and accessories; single-circuit pneumatic trailer brake system with compressor; drawbar and towing device for the trailer, external hitch control lever.
