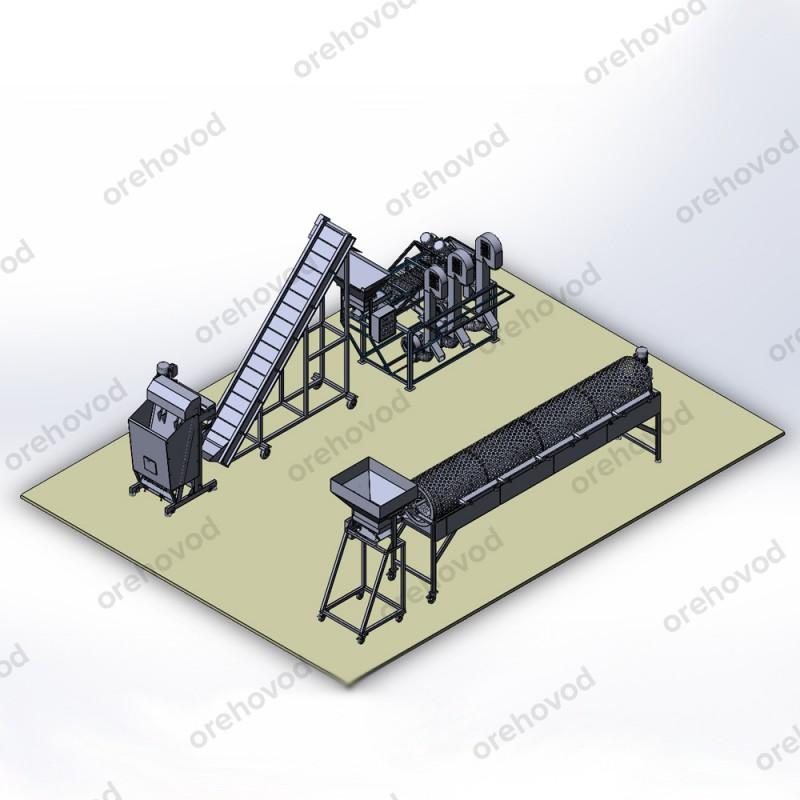

Industrial walnut processing line (200 kg/h), Poltava region.

The industrial line is a complete set of equipment for walnut processing. The equipment is selected for the maximum automation of the processing of a large volume of nuts. The main difference of this line is the rotary calibrator. It is designed specifically for walnut and has a high productivity, which will be a big plus when expanding production.

Etalon walnut shelling machine -nutcracker maximum productivity. Thanks to the conical type of compression, the nutcracker can work without prior calibration of the nut and gives a high yield of the whole kernel.

Productivity

Up to 200 kg/h

The output of the entire core

Up to 80% (may increase or decrease depending on the quality of the nut)

Engine power

1.5 kW

Complete set

380/220 V

Warranty

12 months, post-warranty service

The principle of splitting

conical

The calibrator is designed for sorting walnuts in the shell according to size. Calibration saves time and effort on adjusting the nutcracker and increases the yield of the whole kernel.

Productivity

Up to 500 kg/h

Number of fractions

4

Hole sizes

28, 32, 36, 40 mm

Engine power

0.75 kW

Complete set(//tractor-service.com)

220/380 V

Warranty

12 months, post-warranty service

Ability to calibrate

walnut

The ejector with aspiration is designed for sifting the shell, partitions and dust from the nut kernel and sorting the kernel into fractions (sizes) - halves, quarters, eighths of the kernel and crumbs. The ejector sieve with aspiration is used for high-quality and fast sorting of nuts in large volumes.

Productivity

Up to 300 kg/h

Hole sizes

11, 16, 20/45 mm (can be changed at the request of the customer)

Engine power

3.3 kW

Complete set

380 V

Warranty

12 months, post-warranty service

Approximate calculations and costs of equipment productivity, rent of premises:

The productivity of the industrial line is up to 200 kg/h. With a standardized 8-hour working day, the equipment is capable of processing up to 1,600 kg of nuts (calibration, splitting, sorting of nuts).

One operator is required to service each installation. It is important to understand that the line will reduce the costs of hiring pickers, but manual picking cannot be completely abandoned. The optimal number of personnel for continuous and high-quality operation of the equipment: 8-15 people (the number will depend on the premises, the experience of the workers, the number of employees).

Premises: from 45 sq.m.
• Line length: 850 cm.
• Line width: 350 cm.
• Approximate electricity consumption: 44.4 kW:(0.75+1.5+3.3 kW)*8 = 44.4 kW.
* Where 8 is the number of hours, and in brackets - the power consumption of each of the installations.

Number of personnel: 8-15 people.
* The line can be converted and equipped according to the customer's requests and requirements.
