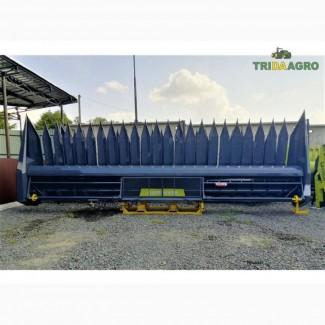

Соняшникова жниварка MAINERO 1040 12-70 (2022), Київська обл.

М'яке захоплення кошиків соняшнику
Lifts, 2 on the furrow, the first to have mechanical contact with plants and can be the cause of losses during assembly. Very sharp angle of tip allows gently penetrating between plants without the risk of loss of seeds or baskets of sunflower.
Enhanced structures
With a V-shaped profile and rounded edges with each other, an input canal of the adjustable width is formed, which ensures the free flow of sloping stems, avoiding stops due to confusion, when the plants are still green or during dew.
= Collection without loss on sides
The tips of the side divisions are longer and with the same angle of penetration as the central, which provides complete capture of baskets on the side furrows and with the same tenderness of penetration as in central divisors.
= Room of the stems puller
It is located on the tips of the divisors, which promotes protection from shocks when working at low altitude. In addition, this arrangement achieves excellent cleaning of the upper area of ​​cutting knives and there is no need to adjust the position of the stem of the cutter, depending on the condition of the plants. With four gear lines, which cover the entire width of the rollers, the stems extend well, even when they come sloping, avoiding the usual pulling of plants. Settler protected bearings are provided with free access in servicing.
Correct knife
The three sections of the input line of plants provide the increased ability to cut the stems. The widespread branches with a wide entrance allow you to cut a large diameter stems into one action. The system of lateral guides each path of capture increases the support surface of the knife, thus extending the life of the cutting section. The service is fast and light, since the cutting beam is fixed by bolts in the central sections and in the intervals.
Shield wrapping = large surface of lifting pools used
The large length of the lifting divisors together with the rotating shield, gives you the Mainro 1040 to capture the larger area of ​​the heads compared to models having a pipe instead of a shield. This model contributes to a better collection with a small loss index.
Shield Wrap = Great Protection for Baskets
The exceptional design of the shield that wraps the cutting machine, in addition, prevents contact with the baskets with knives and thus protects against large seed losses. In addition, it provides support for stems and promotes plants in any condition.
Hydraulic cutting apparatus (// tractor-service.com)
= The cutting apparatus has three variable knives per line of plant supply. The baskets are admired gently, while facilitating the effect of cutting knives and after pruning head to the auger of the collector. The actuator is carried out by a hydraulic system that allows from the cabin combine to regulate the mode of rotation depending on the speed of movement and density of plants. Such regulation allows you to achieve a soft collection mode, avoiding damage to the baskets, which in turn facilitates the work of the combine.
Exclusive system of joint adjustment of the cutting apparatus and shield
For the implementation of Good harvesting with minimal and loss, both elements must be set every time the size of the heads changes. The position of the shield should be adjusted so that the plants can pass towards the cutting apparatus and at the same time the shield should always be directed up and forward, providing support at the time of cutting the stem.
= In order to achieve the simple and quick adjustment of both elements, the cutting apparatus and shields are mounted on one platform without any type of communication with the tuning sidewalks, and changing their position is made on the course of the combine cabin by means of compensating hydraulic cylinders. Due to the new regulation system is carried out in one movement.

Model 1040
Number of rows (pcs) 12
Screw line up to the center and rubber panels
Protection System of Course Restrictor on Friction Disks
= Work Width (mm) 8400
The jet Biter is a stretching shaft
Drive piston engine belt transmission "V", type "c"
Total Width (mm) 8900
Length of lifter (mm) 1850
The distance between lifters is adjustable 300 mm - 370 mm
Weight (kg) 2320
