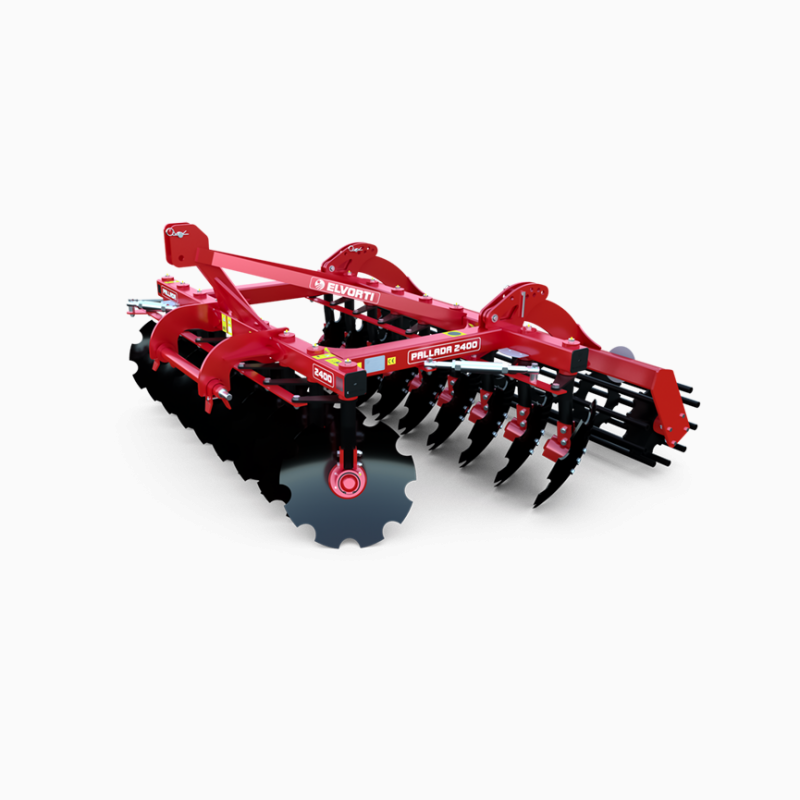

Disk harrow Pallas 2400.
Pallada 2400 disc harrow BDN-2400 is designed for pre-sowing and main tillage, grinding of crop residues, weed control, as well as grinding, leveling and compaction of the soil after discing.
The Pallada disc harrow has the following models: - - The mounted disc harrow
Pallada 2400 has 18 racks in two rows (9 racks in each row) on which discs with a diameter of 560 mm are installed, the angle of attack of the discs is smooth from 0 to 30 degrees. - -- - Disc harrow
mounted Pallada 2400-01 has 14 racks in two rows (7 racks in each row) on which discs with a diameter of 660 mm are installed, the angle of attack of the discs is smooth from 0 to 30 degrees - Trailed disc harrow Pallada 2400-01 has 14 racks in two rows ( 7 racks in each row) on which discs with a diameter of 660 mm are installed, the angle of attack of the discs is smooth from 0 to 30 degrees
(//tractor-service.com)
Each disc of the Pallada harrow is mounted on an individual rack and has an inclination relative to the vertical axis, which allows you to adjust the angle of attack and the working width of the disc. At the same time, the disc acts as a plowshare and a blade, which contributes to a better turnover of the layer being cut off, its collapse, as well as to a reduction of the traction force of the tractor.
Fixing the disks on an individual stand allows the disk harrow to work on lands with a large amount of plant residues, as well as on lands with any amount of weeds, while the winding of plant residues on the axis of the disk and clogging of the space between the disks is excluded.
The roller is designed for grinding, leveling and compacting the soil after disking.
The disc harrow is used in soil and climate zones with soil moisture up to 27% and soil hardness in the treated layer up to 3.5 MPa, as well as in fields with a significant amount of crop residues.
