Roller
shredder KR-6P .

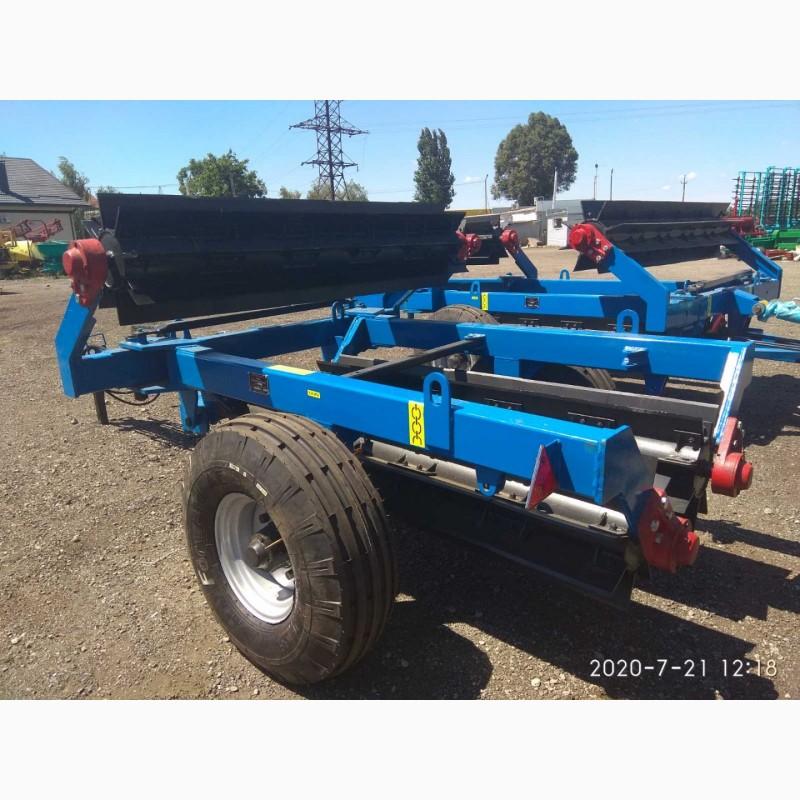

The roller shredder KR-6P is used in agriculture for processing fields after harvesting for crushing plant residues, and partial leveling and mulching of the soil surface. A roller shredder is often used to prepare a field for sowing. Roller chopper KR-6P
chopping machine rectilinear and checkerboard arrangement of knives, water-filled, to increase
own weight, hydrofied on a rubber track, which facilitates its movement and transfer to the working position and vice versa.
The working width of the grab chopper roller is 6 m, the weight without water is 1770 kg, and with water 1890 kg. The roller shredder is aggregated with tractors of class 1.4, these are tractors of MTZ class and higher in power.
Shredding of plant residues and partial mulching of the soil delays the evaporation of moisture, regulates the temperature of the surface layer, restrains the growth of weeds, protects against soil weathering, and enriches the soil with organic matter.
Technical characteristics of the roller shredder KR-6P
The width of capture is 6 meters
Productivity from 4.8 to 7.2 ha/h
(//tractor-service.com)
Working speed up to 12 km/h
Transport speed up to 20 km/h
The diameter of the drum with knives is Ø460 mm, the knives are made of 65G steel.
The diameter of the drum shaft is 60 mm
The weight of the roller is 1770 kg, with water 1890 kg.
overall dimensions
in transport position in working position
Length 4.93 m 3.58 m
Width 2.29 m 6.24 m
Height 1.69 m 1.025 m
