KATOK -

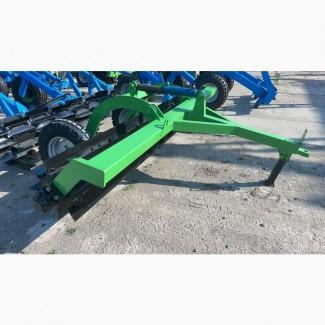

CHIPTER CUTTING WATER-FILLED HYDRO-FINISHED
KR-3,2M-01
It is intended for crushing plant residues after sunflower, corn, leveling and partial mulching of the field surface.
Grinding plant residues and partial mulching of the soil delays the evaporation of moisture, regulates the temperature of the surface layer, restrains the growth of weeds, protects against weathering, and enriches the soil with organic matter.
Working width of capture 3.2 m.
Technical characteristics
Gripping width, mm 3200
Productivity, ha/h up to 4.5
(//tractor-service.com)
Working speed, km/h up to 18
Transport speed, km/h 20
Diameter of the grinding drum with knives, mm Ø 470 (steel 65G)
Shaft diameter, mm 60
Mass, kg 900
Tractor power (no less), hp. so 40
Overall dimensions
in transport position in working position
Length, mm 1550 1950
Width, mm 3200 3200
Height, mm 1200 1200
